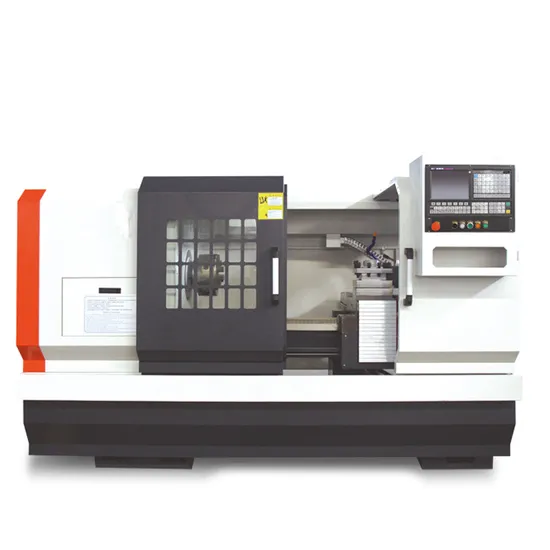

China Flat Bed CNC Lathe CNC Turning Machine for Metal Ck6150
| US$10,000.00 | 1 UNIT (MOQ) |
Basic Info.
Model NO.
CK6150 - CK6266
Application
Metal
Process Usage
CNC Non-Conventional Machine Tools
Movement Method
Contour Control
Control Method
Closed-Loop Control
Numerical Control
CNC/MNC
Processing Precision
0.04~0.05(mm)
Performance Classification
Economical CNC Machine Tools
Certification
CE, ISO 9001
Condition
New
Name
CNC Lathe Machine
Max Swing Over Bed
500mm
Max Swing Over Cross Slide
250mm
Distance Between Centers
1000mm
Spindle Bore
82mm
Chuck Size
250mm
Spindle Speed
800-1800rpm
X Travel
280mm
Z Travel
1000mm
Spindle Motor
7.5kw
Transport Package
Foreign Trade Standard Packing
Specification
CE
Trademark
UNI-TECH
Origin
China
HS Code
84581900
Production Capacity
100sets/Month
Product Description
China Flat Bed CNC Lathe CNC turning machine for metal CK6150Longitudinal and cross feeds are effected by ball leadscrews. Driven by servo motors.
Either vertical or horizontal 4-station or 6-station tool post or gang tools can be selected. The post is located on precision contrite gears with a high repeated positioning accuracy.
Both chuck and tailstock are supplied with hydraulic or manual type.
| Model | Unit | CK6150/1000 | CK6150/1500 | CK6150/2000 |
| max swing over bed | mm | Φ500 | ||
| X axis guide span | mm | 210 | ||
| Z axis guide span | mm | 400 | ||
| max swing over cross slide | mm | Φ250 | ||
| distance between centers | mm | 1000 | 1500 | /2000 |
| max turning diameter for disc | 500 | |||
| max turning length | mm | 850 | 1350 | 1920 |
| center height | mm | 276 | ||
| spindle bore | mm | Φ82/Φ130 | ||
| Through the bar diameter | mm | Φ80/Φ128 | ||
| spindle nose | A2-8/A2-11 | |||
| chuck size | mm | Φ250 | ||
| spindle taper | No | metric 90,1:20 | ||
| spindle speed | rpm | 1800/800 | ||
| tailstock quill diameter | mm | φ75 | ||
| tailstock quill taper | No | MT5# | ||
| tailstock quill trave | mm | 150 | ||
| electric turret | 4 station | |||
| cutting tool size | mm | 25×25 | ||
| X/Z rapid speed | m/min | '6/8 | ||
| X travel | mm | 280 | ||
| Z travel | mm | 1000 | 1500 | 2000 |
| Repeat position | mm | X:±0.005;Z:±0.007 | ||
| spindle motor | KW | 7.5 | ||
| machine weight | Kg | 2650 | 3060 | 3260 |
| machine size | mm | 2650x1650x1820 | 3150×1650×1820 | 3750x1650x1820 |
| Model | Unit | CK6160/100 | CK6160/1500 | CK6160/2000 |
| max swing over bed | mm | Φ600 | ||
| X axis guide span | mm | 210 | ||
| Z axis guide span | mm | 400 | ||
| max swing over cross slide | mm | Φ395 | ||
| distance between centers | mm | 1000 | 1500 | 2000 |
| max turning diameter for disc | ||||
| max turning length | mm | 850 | 1350 | 1950 |
| center height | mm | 345 | ||
| spindle bore | mm | Φ82/Φ130 | ||
| Through the bar diameter | mm | Φ80/Φ128 | ||
| spindle nose | A2-8/A2-11 | |||
| chuck size | mm | Φ250/380 | ||
| spindle taper | No | metric 90,1:20/metric 140 | ||
| spindle speed | rpm | 1600/800 | ||
| tailstock quill diameter | mm | φ75 | ||
| tailstock quill taper | No | MT5# | ||
| tailstock quill trave | mm | 150 | ||
| electric turret | 4 station | |||
| cutting tool size | mm | 25×25 | ||
| X/Z rapid speed | m/min | '6/8 | ||
| X travel | mm | 320 | ||
| Z travel | mm | 1000 | 1500 | 2000 |
| Repeat position | mm | X:±0.005;Z:±0.007 | ||
| spindle motor | KW | 7.5 | ||
| machine weight | Kg | 2680 | 2870 | 3170 |
| machine size | mm | 2650x1650x1750 | 3150X1650X1750 | 3750x1650x1750 |
