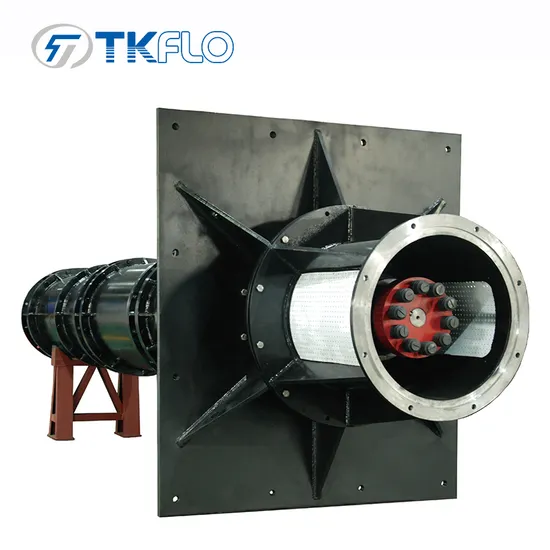

Vertical Turbine Hollow Solid Long Axis Shaft Sea Water Industrial Irrigation Flood Drainage Submersed Water Pump

Product Description

Why choose us?Specialized production Manufactory for Vertical Turbine PumpFocus on technological innovation, Over Industry leading levelGood experience at Domestic and oversea marketCarefully paint for Good appearanceYears of International service standards, Engineer one-to-one service
Product Description
Vertical Turbine Pump VTP
Long axis Shaft Vertical Turbine Sea Water Industry dewatering Flood Control Drainage Pump
This kind of vertical drainage pump is mainly used for pumping no corrosion, temperature less than 60 °C, suspended solids (not including fiber, the grits) less than 150 mg/L content of the sewage or waste water.
LPT type vertical drainage pump is in LP type vertical water pumps, and on the basis of the increase and the collar, set the tube oil lubrication is water. Can smoke temperature below 60 °C, send to contain a certain solid grain (such as scrap iron and fine sand, coal, etc.) of sewage or waste water. Product Parameters

Capacity	20-5000 m3/h
Head	3-150 m
Working Temperature	0-60 ºC
Power	1.5-3400KW

More details please conatct TKFLO sales engine.( email/ whatapp/ Wechat 24 hours online)
Also we have the own professional engineer team to optimize and develop products, make plan to meet customized of your requirements.
https://tkflow.en.made-in-china.com/contact-info.html?pv_id=1igt8ean1ec3&faw_id=1igt8eco8c49
How It Works: The vertical turbine pump is normally driven by an AC electric induction motor or a diesel engine via a right angle drive. The end of the pump consists of a rotating impeller that is joined to a shaft and guides the well water into a diffuser casing known as a bowl. Pumps with multi-stage arrangements use several impellers on a single shaft to generate higher pressure that would be required for pumping water from deeper wells or where higher pressure (head) is required at ground level. A vertical turbine pump works when water comes through the pump from the bottom through a bell-shaped device known as a suction bell. The water then moves into the first stage impeller, which increases the velocity of the water. The water then moves into the diffuser casing directly above the impeller, where the high velocity energy is transformed into high pressure. The diffuser casing also guides the fluid into the next impeller located directly above the diffuser casing. The process goes on through all the stages in the pump. The VTP pump line is normally designed to operate in wells or sumps. Its bowl assembly consists primarily of a suction case or bell, one or more pump bowls and a discharge case. The pump bowl assembly is positioned in the sump or well at a depth to provide the proper submergence.
Product Advantage
√ Corrosion resistance main part material, SKF bearing, thordon bearings suitable for sea water.
√ Excellent design for high Efficiency save energy for you.
√ Flexible installation method suitable for different site.
√ Stable running, Easy to install and maintain.
1.The inlet shall be vertical downward and the outlet horizontal above or under the base.
2.The impeller of pump is classified into enclosed type and half-opening type, and three adjustments: non-adjustable, semi adjustable and full adjustable. It is unnecessary to fill the water when the impellers are fully immersed in the pumped liquid.
3.On the basis o Pump, this type is additionally fit with muff armor tubing and the impellers are made of abrasive resistant material, widening the applicability of pump.
4.The connection of impeller shaft, transmission shaft, and motor shaft applies the shaft coupling nuts.
5.It applies water lubricating rubber bearing and packing seal.
6.The motor generally applies standard Y series tri-phase asynchronous motor, or YLB type tri-phase asynchronous motor as requested. When assembling Y type motor, the pump is designed with anti- reverse device, effectively avoiding reverse of pump.
More detail about our VTP series Long Shaft Vertical Turbine Pump for curve and dimension and data sheet please conatct Tongke.
Detailed Photos
FAQ
Note before order
1.The temperature of medium shall not be higher than 60 .
2.The medium shall be neutral and PH value between 6.5~8.5. If the medium is not consistent to the requirements, specify in the order list.
3.For VTP type pump, the content of suspended substances in the medium shall be less than 150 mg/L; for VTP type pump, the max. Diameter of solid particles in the medium shall be less than 2 mm and the content less than 2 g/L.
4 VTP type pump shall be connected with clean water or soapy water outside to lubricate the rubber bearing. For two stage pump, lubricant pressure shall not be less than operational pressure.
Application
Petrochemical Industry pump
Seawater desalination plant or salt water pump
Municipal engineering
City flood control and drainage
Industry plant
Industrial architecture
Sewage treatment engineering
PROJECT NO.1
PROJECT NO.2 VTP pump for sea water plant
PROJECT NO.3 VTP pump for Petrochemical Works
PROJECT NO.4
