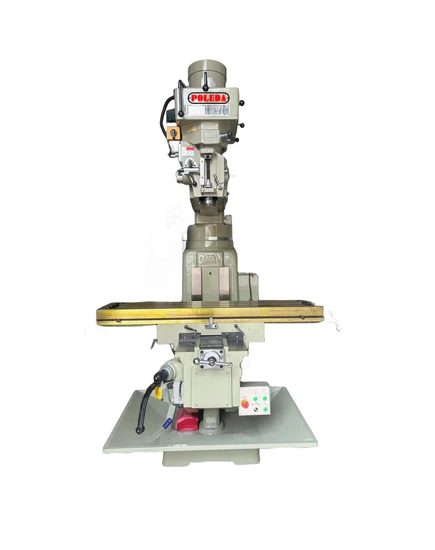

Poleda 5m/5s Universal Vertical Rocker Turret Milling Machine with Precision Cutting, China

Product Description

Experience unparalleled precision with the 5M Vertical Metal Turret Milling Machine from China. Our Universal Milling Machine stands as a testament to our unmatched expertise. Always striving for perfection, we believe there's always room for improvement. Discover the ultimate in precision with the 5M Vertical Metal Turret Milling Machine.
Our China Universal Milling Machine showcases our exceptional professionalism in the field.
At Dongguan Poleda Precision Machinery Co., Ltd., we embrace the philosophy: 'There is no best, only better.'
Product Description
Product Parameters
Product Introduction
The turret milling machine, also known as a rocker arm milling machine, offers unparalleled versatility and precision. Its compact design, combined with a highly flexible structure, allows the milling head to swivel 90 degrees in both directions and rotate 45 degrees forwards and backwards. The extendable rocker arm, capable of 360-degree horizontal rotation, significantly enhances the machine's operational range, making it indispensable for precision tasks.
Composition
Crafted from high-grade cast iron, the body of the universal radial milling machine ensures exceptional precision and durability, thanks to artificial aging treatment. The lifting platform features robust rectangular guide rails, providing multiple contact surfaces and increased rigidity. The slide benefits from high-frequency treatment, fine grinding, and plastination, guaranteeing superior motion accuracy and longevity. The spindle, made from chrome-molybdenum alloy with precision angular contact bearings, undergoes tempering and fine grinding to ensure strong cutting force and high precision.
Applications
The turret milling machine is a versatile, lightweight universal metal cutting machine. It offers both vertical and horizontal milling functions, making it ideal for machining flat, inclined, grooved, and splined surfaces on medium and small parts. This machine finds extensive applications in machining, mold making, instrumentation, and various other industries.
Mechanical Characteristics of the Turret Milling Machine
Constructed from Mihanna cast iron, the casting provides excellent rigidity, stability, and resistance to deformation.
The main spindle, made from chrome-molybdenum alloy, undergoes tempering, heat treatment, and precision grinding. Combined with high-precision bearings, it offers formidable cutting force and exceptional accuracy.
The milling head gearbox, crafted from cast iron, boasts superb rigidity and minimal deformation. Its heavier weight contributes to precise cutting and enhanced durability.
The three-axis screw cap is made from advanced phosphorus bronze, ensuring excellent wear resistance and an extended service life.
The XY shaft slide, treated with high wave heat, boasts excellent wear resistance and an increased lifespan. The imported wear-resistant plate on the XY axis interface ensures easy operation and long-lasting durability.
The machine comes equipped with a lubrication system that ensures uniform distribution of oil points for smooth slide operation.
This machine weighs 100 kg more than comparable products, ensuring greater stability and performance.
Features a powerful 5hp motor and a high-rigidity, precision NT40 spindle, making it perfect for handling large parts and heavy cutting tasks.

Product Name	Milling machine
Product model	5M/5S/5HG
Product technical parameters
dimension	Table size	1370*305MM
journey	Left and right stroke(X)	800MM
	Front and rear stroke(Y)	380MM
	Up and down stroke(Z)	380MM
	Arm reach	600MM
	Distance from spindle end face to table surface	100-480MM
	Table bearing	350KG
Principal axis coefficient	Spindle taper	NT40
	Spindle speed	80-5440RPM(16-speed)
	Spindle travel	127MM
	Spindle horse power	5HP
Milling head	Milling head tilt Angle	45° front and back
Lead screw	X/Y/Z-axis screw diameter	Tr32/Tr32/Tr35MM
	Three-axis lead screw pitch	5MM
	Machine size (L * W * H)(MM)	1750*1700*2200MM
	Approximate machine weight	1580kgs
disposition	Accessories name	quantity
Standard parts for machine tools	1,Hand oil pump	1
	2,Work light	1
	3,Organ board + protective glue	1
	4,Lever	1
	5,Tools and toolboxes	1
	6,Operating instruction	1

Detailed Photos
Our Advantages
Certifications

FAQ
FAQ
1.What is the MOQ for your production?
A.The MOQ depends on your requirements for color, logo and so on.For some normal items, we have in stock, the MOQ is 1 set.
2.How to control the quality of the products?
A.We have always placed great emphasis on the quality level is maintained.Moreover,the principle we always maintain is "to providecustomers better quality, better price,and better service".
3.What's your main products of your company?
A: We specialized in all kinds of machines ,such as CNC Machine, Lathe Machine , Milling Machine,Grinding Machine ,Vertical Machining Center ,DrillingMachine ,Radial Drilling Machine ,Sawing Machine and so on .
4. What is your trade terms?
A :Ex-works FOB, CFR and CIF all acceptable.
5.What's the Payment Terms ?
A : T/T ,30% initial payment when order ,70% balance payment before shipment ;
6.What CNC system do you use?
A:FANUC, SIEMENS, MITSUBISHI, SYNTEC, HCN .It depends on your choice.
7.How can I choose the most suitable machines?
A:Send us the products drawings and applications ,we will choose the most suitable machines for you.
8.what kind of package do you offer?
A.Normally in plywood case, to make sure all goods in good condition. Customized package can be acceptable.
9.Can your plant do OEM?
A:Yes it is no problem. We can do OEM and ODM for any customers 10.How about the warranty?
A: Warranty Period is one year after delivery. Even beyond the period, we will supply lifetime service for mac
