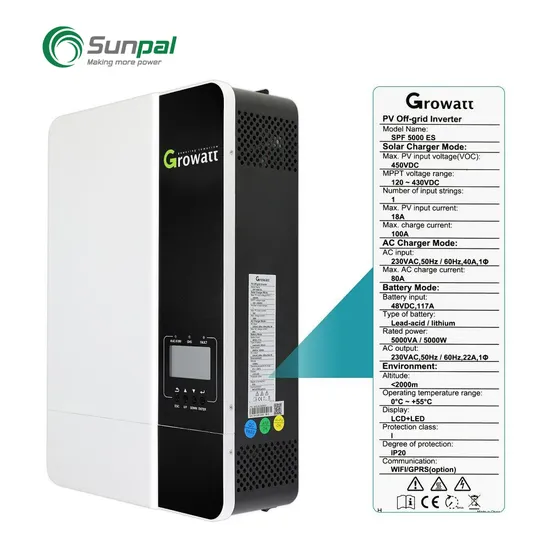

Growatt off Grid Solar Inverter 48V 5kw 4.5kw 5000W SPF 5000es Hibrid Solar Inverter EU Stock
| US$445.00-590.00 | 1 Piece (MOQ) |
Basic Info.
Model NO.
Growatt SPF 5000ES
Nature of Source Flow
Active Inverter
Phase
Single
Output Power
>1000W
Certification
CE, ROHS, ISO9001
Brand
Growatt
Type
DC/AC Inverters
Power Source
Solar Power
Circuit Topologies
Full-Bridge Type
Nature of Wave String
Sine Wave Inverter
Rated Grid Voltage(V)
220V/230V /240V
Rated Grid Frequency(Hz)
50/60
Grid Frequency Range(Hz)
47-52 or 57-62
Operation Phase
Single
DC Reverse Polarity Protection
Yes
DC Switch Rating for Each MPPT
Yes
Output Over Current Protection
Yes
Parallel Capability
Yes, 6 Units Maximum
AC Voltage
230VAC ± 5% @ 50/60Hz
Surge Power
7000va/10000va
Efficiency (Peak)
93%
Transfer Time
10ms Typical, 20ms Max
AC Input Voltage
230 VAC
Frequency Range
50Hz/60Hz (Auto Sensing)
Mpp Trackers
1/1
Transport Package
Carton
Specification
355/419/158 mm
Trademark
Growatt
Origin
China
HS Code
8504403090
Production Capacity
1000pieces/Day
Packaging & Delivery
Package Size
36.00cm * 42.00cm * 16.00cm
Package Gross Weight
42.000kg
Product Description
Product Description| Datasheet | Growatt SPF 3500 ES | Growatt SPF 5000ES |
| Battery Voltage | 48VDC | |
| Battery | Lithium/Lead-acid | |
| Inverter Output | ||
| Rated Power | 3500VA/ 3500W | 5000VA/ 5000W |
| Parallel Capability | Yes, 6 units maximum | |
| AC Voltage | 230VAC ± 5% @ 50/60Hz | |
| Surge Power | 7000VA | 10000VA |
| Efficiency (Peak) | 93% | |
| Waveform | Pure sine wave hybrid solar inverter | |
| Transfer Time | 10ms typical, 20ms Max | |
| SOLAR CHARGER | ||
| Maximum PV Array Power | 4500W | 6000W |
| MPPT Range | 120VDC ~ 430VDC | |
| MPP Trackers | 1/1 | |
| Max PV Array Open V | 450VDC | |
| Max Solar Charge Current | 80A | 100A |
| AC CHARGER | ||
| Charge Current | 60A | 80A |
| AC Input Voltage | 230 VAC | |
| Frequency Range | 50Hz/60Hz (Auto sensing) | |
