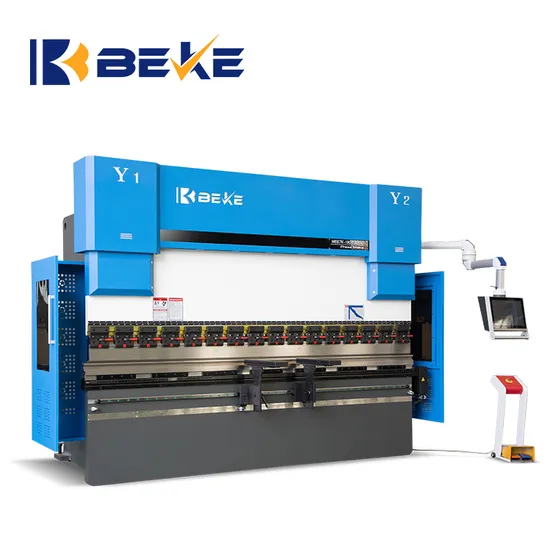

Automatic Industrial Metal Metal Plate Hydraulic Press Brake Machinery
Basic Info.
Model NO.
DA58T
Warranty
2-year
Condition
New
Certification
ISO 9001:2000, ISO 9001:2008, CE
Automation
Automatic
Suitable for
Copper, Aluminum, Alloy, Carbon Steel, Stainless Steel
Type
Press Brake
Model
We67K 125t2500 4+1
Axes
Y1,Y2,X,R+CNC Crowning
Servo Drive
Inovance
Control System
Da58t
Main Motor
Siemens
Siemens
3200X1820X2530mm
Transport Package
Cover with Plastic Film
Specification
3850mmx1850mmx2600mm
Trademark
BEKE
Origin
China
Product Description
Detailed PhotosProduct Description
Our company
Packaging & Shipping
customer
Parametric
| ITEM | VALUE |
| Model | WE67K 130T3200 |
| Axes | Y1, Y2, X, R and V(Crowning) |
| Slider Stroke (mm) | 200mm |
| Max Opening Height(mm) | 480mm |
| Throat Depth (mm) | 400mm |
| Length of Working Table (mm) | 3200 mm |
| Width of Working Table (mm) | 150mm |
| Dimension | 3850x1850x2600mm |
| Weight (KG) | 9000 |
| Motor Power (kw) | 11kw |
| Warranty | 2 years |
| Material / Metal Processed | Brass / Copper, Stainless Steel, ALLOY, Carbon Steel, Aluminum, Mild Steel |
| WE67K CNC sheet metal press brake with streamlined design ,high speed ,high precision ,high rigidity. Electro hydraulic servo system,full loop controlling the synchronization of the upper slider. Mechanical compensation on crowning of worktable and deformation compensation on throat, ensuring good bending strength and precision. Backgauge is driven by digital AC servo motor,moved with ball screw,guided by linear guide. Now the press brake can provide variety of choicesand features for the products and function, to realizethe optimal bending process and solutions. | |
| DELEM DA58T CNC System Features: 2D touch graphical programming 15" high-resolution TFT true color display Bending process calculation Deflection compensation controlServo and drive control modes Advanced Y-axis control algorithm, you can control the closed-loop valve can also control the open-loop valve USB interface | |
