China Manufacture of Ultra Pure Water Purifier for Hospital, Reverse Osmosis Water Treatment Equipment

Product Description

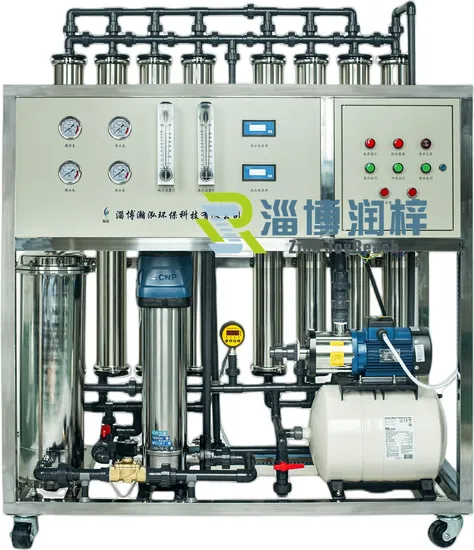

Ultra pure water treatment system
Ultra pure water equipment is widely used in laboratories, medical industry, electronic products, food processing, paper and printing, laundry, printing and dyeing, pharmaceutical and other places with special requirements for water quality.
Main components of ultra purified water machine: Composite filtration, precision filtration, high-pressure pump, RO membrane, water storage tank, pure water pump, ultraviolet ray, ultrapure column, integrated cabinet, control system, etc.
The electric control system of this equipment adopts full automatic control without special personnel on duty, and effectively controls colony growth. The water supply adopts constant pressure water supply mode.
The main features of the ultra purified water machine are:
All kinds of accessories are highly integrated, fully automatic control, beautiful appearance, small floor area, convenient movement, simple operation, reliable work, etc.
The ambient temperature at the installation site should preferably be between 5 and 40 ºC.
Product Description The machine is also used for high performance liquid chromatography (HPLC), ion chromatography, atomic absorption and emission spectrometry, mass spectrometry analyzer, amino acid analyzer, BOD/COD analysis, trace metal analysis, PCR application and analysis, gas phase analysis,washing high precision optical lens,analytical reagent and precision instrument analysis, etc.
The main features of the ultra purified water machine are:
All kinds of accessories are highly integrated, fully automatic control, beautiful appearance, small floor area, convenient movement, simple operation, reliable work, etc.The ambient temperature at the installation site should preferably be between 5 and 40 ºC.
Main components of ultra purified water machine:
Composite filtration, precision filtration, high-pressure pump, RO membrane, water storage tank, pure water pump, ultraviolet ray, ultrapure column, integrated cabinet, control system, etc.The electric control system of this equipment adopts full automatic control without special personnel on duty, and effectively controls colony growth. The water supply adopts constant pressure water supply mode.

Product Parameters Technical parameters:
Water inlet pressure: 0.3Mpa ~ 0.4MPa
Raw water flow: ≥ 1.0m3/h
Hardness of raw water: ≤ 8 mmoL
Water inflow requirements: in line with municipal tap water
Water inlet temperature: 5~40 ºC (25 ºC is the best)
Ambient temperature: 5~40 ºC
Power supply: AC 220V/50Hz
Power: 1KW
Water yield: HHUP-A-60: ≥ 60L/H HHUP-A-120: ≥ 120L/H Can be customized.
Resistivity: ≥ 10M Ω. cm (25 ºC)
Ion removal rate: above 99.99%
Volume of water storage tank: HHUP-A-60:40L (built-in) HHUP-A-120:80L (built-in) Can be customized.
Overall dimension: 780×1450×610mm according to the orders models.
Total weight: about 200Kg
Control mode: fully automatic control.
HHUP Laboratory water quality specification:

Name	Level A grade	Level B grade	Level C grade	Remark
PH 25C	-	-	5-7.5
Conductivity 25C mS/m <=	0.01	0.10	0.5
Oxidizable substance content mg/L <=	-	0.08	0.4
Absorbancy 254nm,1cm optical path <=	0.001	0.01	-
Evaporation residue <=	-	1	2
Solubility silicon SiO mg/L <=	0.01	0.02	-
Note	The horizontal line "-" indicates that the index is not specified under this purity, and other conditions and preparation methods can be used to ensure the water quality.

Our Advantages Process flow diagram:
Raw water entering,→Integrated filtration,→Precision filtration,→High pressure pump,→Reverse osmosis system,→Pure water storage tank,→Pure water pump,→UV system,→Ultrapurification column,→Water points.

Company Profile
Zibo JOYREACH / Zibo Horizon Technology is the leading brand of medical water purification in China. Zibo Horizon Environmental Technology Co., Ltd., founded in 2012,Main products of the company: hemodialysis water system, acidic electrolyzed oxidizing water generator, medical purified water equipment, demineralized water equipment, laboratory ultra-pure water system, endoscope and oral sterile water system, animal experimental water system, pharmaceutical water system, etc. The company integrates research and development, design, production, sales and service of medical water treatment, and has developed a variety of water treatment series with senior experts and electrical technology professionals with many years of water treatment experience.Through independent innovation and foreign cooperation, the company has obtained 14 utility model patents, 1 design patent, 8 software copyrights, 5 invention patents and products.
The company has advanced instruments and equipment, professional technical design team of water treatment equipment, and excellent expatriate installation and commissioning team; The company has also successively obtained the production license, disinfection and sanitation approval, registration certificate of medical device products; Ensure that we provide the fastest, best quality and most satisfactory service to every customer and friend. The company now has more than 100 users of large tertiary hospitals: Shanghai Ruijin Hospital, Shanghai First Rehabilitation Hospital, Shanghai Qingpu District Central Hospital, Beijing Chuiyangliu Hospital, Beijing Anzhen Hospital, Beijing Shijitan Hospital affiliated to Capital Medical University, Shenzhen People's Hospital, Dalian Sixth People's Hospital, Chengde Medical College Affiliated Hospital, Datong Second People's Hospital, Ningxia Medical University General Hospital, etc. Welcome all friends visit our company.
We can also do the following products, if you have the need, please contact us:1.HHOSWS HHECPW Sterility Water Treatment Machine For Stomatology And Endoscopy Department
2..HHEOW HHSAEW Electrolyzed Oxidizing Water Generator Machine
3.HHHD Hematodialysis Water Treatment Machine For Related Department
4.HH Full-Automatic Water Softener For Sterilizing Room
5.HHRO-C Series Water Purifier For Sterilizing Room
6.HHRO-S Series Water Purifier For Sterilizing Room
7.HHUP UItra Pure Water Purifier For Laboratory Department
8.Pharmaceutical purified water system
9.Animal drinking water system
10.Medical Heat Sealing Machine

Related Medical water treatment equipment

Certifications

Packaging & Shipping
