LDPE PE LLDPE Film Recycling Machine

Product Description

Description:
The SJ series compacting and pelletizing system combines function of crushing, compacting, plasticization and pelletizing to one step. Applied in the plastic recycling and pelletizing process. SJ system is a reliable and effcient solution for plastic films, raffias, filaments, bags, woven bags and foaming materials re-pelletizing.
For recycling the waste plastic, such as waste PET bottles, PP PE film, woven bags, nylon, bottle flakes, shred lumps, pipe flakes, we should use two recycling steps, first one is crushing washing drying, after washing recycling line, we can get clean dry plastic scrap/flakes, the second step is the pelletizing, we can feed the clean dry waste plastic scrap into the pelletizing line to get pellets, according to the different plastic type, the pelletizing machine is divided into water ring type pelletizing line and noodle strip pelletizing line, the feeding material type also have two different way, one is force feeding type which is suitable for hard material, another is compactor type pelletizing line, which is designed specially for soft material, like woven bags, nylon, film etc.
Now our company produces both the crushing washing recycling machine and the pelletizing recycling machine, we can provide washing recycling line capacity from 300-2000kg/h, and pelletizing line capacity from 100-1500kg/h.
Our pelletizing Machine Advanatges:
1) Simple design, user-friendly operation.
2) Siemens brand motors, ABB inverters.
3) Siemens PLC, Gefren pressure sensors, Omron Temperature controllers, LS air switch.
4) Lower investment cost for a high quality and durable machine.
5) Low energy consumption, High output.
6) Plastar produces more than 10 sets of series pelletizing machines per month. Usual delivery time: 50 days, and we have sample machines for customer visiting checking.
7) Engineers are available to do commissioning work abroad.
Our Pelletizing Machine Features:
1. All recycling materials after sorting, crushing, and washing, no need spin-drying, or oven drying, or drying in the sun, can be used to produce. This plastic pelletizing line is applicable for both dry and wet materials.
2. It is full automatic from raw materials crushing, washing, feeding to pelletizing.
3. It takes full advantages of high pressure friction ceaseless temperature increasing system to heat, avoiding continuous heating, which is energy saving.
4. It adopts separate and full automatic power distribution system to ensure motor running under safe and normal condition.
5. Screw and barrel is made of high strengthened carbon steel, which has long using life.
Application
PP PE film plastic pelletizing production line is mainly used to make pellets from waste plastics, like PP, PE films, agricultural films, LDPE stretch films, LLDPE films, PP woven bags, shopping bags, and other soft PP,PE plastics.
Processing capacity is from 100kg/h to 1500kg/h.

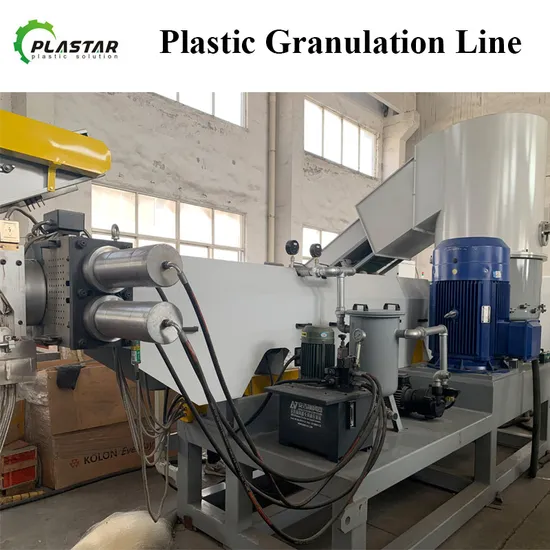

Machine pictures for reference:
Our Pelletizing Line:
Brief Machine Technical datas for reference:

Model	Extruder	Screw diam.(mm)	L/D Ratio	Power(kw)	Capacity (PE) (kg/h)	Capacity (PP) (kg/h)
PL-100	SJ100/33	100	33:1	210	280-350	250-300
PL-130	SJ130/33	130	33:1	300	480-550	400-480
PL-160	SJ160/33	160	33:1	370	650-750	550-650
PL-180	SJ180/33	180	33:1	460	800-1000	750-850

Please note: This chart if for reference, the detail machine technical datas will be provided after receiving your inquiry.
Machine package&shipping:
About our company:
Zhangjiagang Plastar Machinery Co., Ltd. is a professional manufacturer for kinds of plastic machines, such as waste plastic recycling machine, plastic crusher & Shredder, plastic pipe extrusion line, plastic profile extrusion line, and plastic process auxiliary machines, etc.
The target of Plastar Machinery Co.,Ltd is to offer the best quality machines to the customers from all over the world. With the advanced technology, experienced engineers and skilled workers, we have the capability to manufacture specific machines according to customer's requirement.
Excellent quality and professional service is the promise made by Plastar Machinery Co.,Ltd to new and old friends. We are looking forward to establish good cooperation relationship with you on the basis of mutual benefits.
