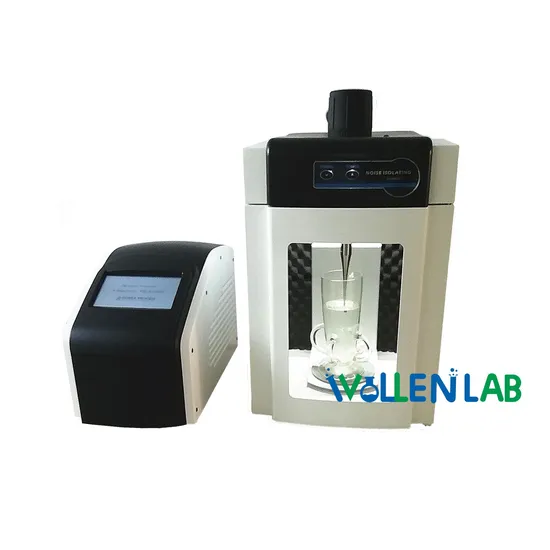

Lab Scale Ultrasonic Cell Crusher Mixer Disruption System Sonicator Homogenizer
| US$1,800.00-2,300.00 | 1 Set (MOQ) |
Basic Info.
Model NO.
JY92-IIN
Application
Liquid with Suspended Solids, Liquid
Application Area
School, Hospital, Lab
Certification
CE, ISO
Condition
New
Stirring Type
Forced
Warranty
One Year
Working
High Speed Mixer
Model
Jy92-Iin
Frequency
20-25kHz Automatic Tracking
Power
650W ( 1%-99%)
Display
7 Inch TFT Touch Screen
Display Content
Time, Power, Temperature
Processing Volume
0.5-500ml
Duty Ratio
1-99%
Accompany Tip
6mm
Optional Tip
2, 3, 10, 12, 15mm
Alarm
Overload and Overtime
Ultrasonic Host Size
430*255*300mm
Soundproof Box Size
345*340*570mm
Power Supply
220V/50Hz or 110V/60Hz
Mixer Type
Homogenizer
Layout Type
Verticle
Operating type
Continuous Operating
Transport Package
Carton Box
Trademark
WollenLab
Origin
China
HS Code
8479820090
Production Capacity
500sets/Month
Product Description
Lab Scale Ultrasonic Cell Crusher Mixer Disruption System Sonicator HomogenizerFeatures:
1. It adopts PWM control switch power supply, and the power is continuously adjustable. 2. It adopts 7 inch TFT touch screen display, high resolution. 3. Central microcomputer centralized control. 4. Ultrasonic time, power arbitrary setting. 5. Sample temperature detection display, power display, microcomputer tracking, automatic fault alarm. 6. Sound Abating trap adopts sheet metal, spray plastic, ABS material, die design, with lock function.
Application Area:
Life sciences: Lysis, fragmentation, leaching of bacteria, viruses, spores and other cellular
structures, extraction of DNA and protein in plants and animals, pruning of DNA/RNA, chromatin immunoprecipitation technique.
Materials chemistry: The dispersion and cracking of nano materials, such as carbon nano tubes, graphene and other materials. Cracking, emulsification, homogenization and crusing of homogeneous soil, rock samples, non-ferrous metals, rare earth particles.
In addition, it can be used for the dispersion and extraction of Chinese herbal medicines. It can be used for the dispersion, homogenization and acceleration reaction of other samples, and also for sample pretreatment in chemical, medical, archaeological, geological and marine fields. Technical Parameters:
| Model | JY92-IIN | JY92-IIDN | JY98-IIIDN | JY99-IIDN |
| Frequency | 20-25KHZ | 19.5-20.5 KHz | ||
| Adjustable Power | 650W ( 1%-99%) | 900W ( 1%-99%) | 1200W (20%-99%) | 1800W (20%-99%) |
| Display | 7 inch TFT touch screen | |||
| Accompany Tip | Φ6mm | Φ20mm | Φ25mm | |
| Optional Tip | Φ2, 3, 10, 12, 15mm | Φ15, 25mm | Φ20, 28mm | |
| Processing Volume | 0.5-500ml | 0.5-600ml | 50-1000ml | 50-1200ml |
| Duty Ratio | 1-99% | 0.1-99.9% | ||
| Temperature Alarm | no | Yes (Prevent sample Overheating) | ||
| Alarm | Overload and overtime | Over-temperature, Overload and overtime | ||
| Ultrasonic Host Size | 430*255*300mm | |||
| Soundproof Box Size | 345*340*570mm | |||
| Power Supply | 220V/50Hz or 110V/60Hz | |||
