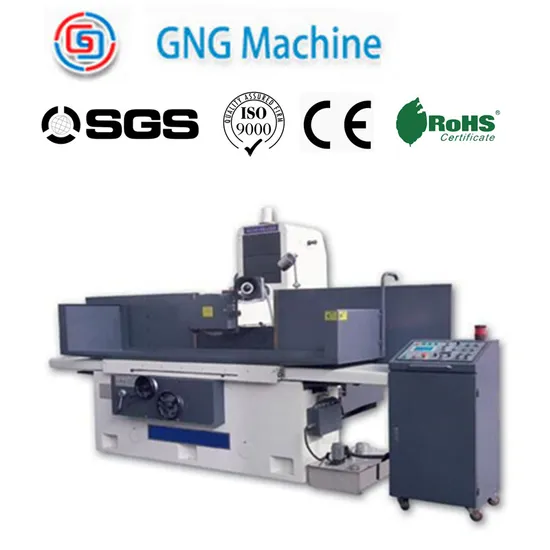

Heavy Type Wheel Head Moving Surface Grinder
| US$30,375.00 | 1 Piece (MOQ) |
Basic Info.
Model NO.
SG60120AHR/AHD
Controlling Mode
Artificial
Automatic Grade
Automatic
Cylindrical Grinder Type
Universal Cylindrical Grinder
Precision
High Precision
Certification
CE, ISO 9001
Condition
New
Table Size(Wxl)
610X1200(Mm)
Max. Grinding(Wxl)
610X1200(Mm)
Max. Distance Between Spindle Center Lin
600(Mm)
Magnetic Chuck Size (Optional Equipment)
500X1000X1(Mm)
Speed of Table Longitudinal Movement
5-25m/Min
Transport Package
Wood Case or Carton
Specification
CE ISO
Trademark
GNG MACHINE
Origin
China
HS Code
84595900
Production Capacity
500 Sets/Month
Product Description
M71 wheel head moving surface grinder SG60120AHR/AHD
height of machine:2390mm (include the packing base)
floor space(LxW):4740x2750mm
gross weight:6500kg
| SG column moving surface grinder | |||
| Item/Model | Unit | SG60120AHR/AHD | |
| table size(WxL) | mm | 610x1200 | |
| max. grinding(WxL) | mm | 610x1200 | |
| max. distance between spindle center line and worktable surface | mm | 600 | |
| magnetic chuck size (optional equipment) | mm | 600x1000x1 | |
| speed of table longitudinal movement | m/min | 5-25 | |
| wheel head cross moving | auto feed | mm/t | 0.5-20 |
| rapid speed | m/min | 1.25 | |
| hand wheel feed | mm/div | 0.02 | |
| wheel head vertical moving | auto feed | mm/t | -/0.005,0.01,0.015,0.02,0.03,0.04(only for AHD model) |
| rapid speed | mm/min | 230 | |
| feed of handwheel | mm/div | 0.002 | |
| wheel | speed | rpm | 1450(50Hz),1740(60Hz) |
| size(ODxWxID) | mm | 355x(20-50)x127 | |
| motor of spindle | kw | 7.5 | |
| max. loading capacity of worktable with chuck | kg | 970 | |
| total rated power | kw | 14 | |
| height of machine | mm | 2390(include the packing base) | |
| floor space(LxW) | mm | 4740x2750 | |
| gross weight | kg | 6500 | |
