2" 3" Corken Blackmer Vane Pump for LPG Cylinder Filling Station with 50000L 60000L Gas Tank
| US$15,300.00-28,000.00 | 1 Piece (MOQ) |
Basic Info.
Model NO.
CLW5432
Material
Carbon Steel
Pressure
1.6MPa≤p<10.0MPa
Storage Medium
Flammable/Toxic
Pressure Level
Medium Pressure (1.6MPa≤p<10.0MPa)
Condition
New
Tank Purpose
Cooking Gas Filling
Tanker Material
American or Chinese Standard
Overall Size (Length X Width X Height)
9182*2728*3318 (mm)
Tank Diameter
Dn2700mm, etc.
Tank Thickness
Shell 14mm, Head 16mm.
Tank Volume Options
50m3
Tank Capacity Options
20ton
Design Pressure
1.71MPa/17.1bar
Design Temperature
-20degree~50degree
Corrosion Allowance
1 mm
Color
White or Gray
Life Time
15 Years
Tank Shape
Cylinder Shape
End Plate Type
Elliptical or Spherical
Flange Type
Class 300
Transport Package
Naked with Wax
Specification
50m3, 50cbm, 50000liters, 50000L
Trademark
CLW
Origin
Suizhou, China
HS Code
8705909090
Production Capacity
500 Unit/Month
Product Description
2" 3" Corken Blackmer Vane Pump for LPG Cylinder Filling Station with 50000L 60000L Gas TankProduct Description
1. LPG Tank Storage Content: LPG Gas, Propane, Butane, Liquid Ammonia, etc.
2. Tank Design Standard: GB150-2013, ASME Standard with U STAMP.
3. Test: 100% Radiaographic Test, Magnetic Power Test, Water Pressure.
Optional Equipment
>. Digital Filling Scale with Auto Filling Cut-off, Thousans of Record Keeping, net & Gross Filling
>. Pump: Vane Pump & Coro-Flo Pump, Turbine Pump, Corken or Blackmer Brand.
>. Motor: ABB or SIEMENS Brand, Static-free, 380V 3 Phase, 5.5KW to 10KW
>. Pipeline: 2" Steel pipe with safety return valve, strainer, one-way valve, cut-off valves.
>. Explosive Proof Central Control Panel for whole station system
>. Other Equipment: Sunshade for filling area, Leakage Detector.
Product Specification
| Parameter of 50000liters lpg gas station tank | ||||||
| ITEM | PARAMETER | ITEM | PARAMETER | |||
| Volume | 50cbm | Thickness of Shell | 14mm | |||
| Tank Material | Q345R | Thickness of End plate | 16mm | |||
| Overall Size | 9182*2728*3318mm | Tank Net Weight | 10640kg | |||
| Tank Diameter | 2700mm | Loading Capacity | 19950kg | |||
| Design Pressure | 1.77Mpa | Gas Density | 420kg/M3 | |||
| Hydraulic Test Pressure | 2.22Mpa | Corrosion Allowance | 1mm | |||
| Design Temperature | -20ºC~60ºC | Heat Treatment | Bulk | |||
| Vapor Outlet | DN50 | Gas Outlet | DN50 | |||
| Life time | 15 years | |||||
| Accessories | ||||||
| Model | Item | Qty | Junction surface | |||
| J41N-2.5-50 | Stop Valve DN50 | 6 | RF | |||
| J41N-2.5-25 | Stop Valve DN25 | 2 | RF | |||
| J41N-2.5-80 | Stop Valve DN80 | 1 | RF | |||
| J24W-320-DN6 | J24W Needle Valve M20*1.5 | 1 | ||||
| HG21584-95 | Magnetic plate level Gauge UZFAL-2.5RF-3040-0.5 | 1 | RF | |||
| A42F-25-80 | Safety Valve DN80 | 1 | RF | |||
| Y-100T | Pressure Gauge M20*1.5 1.5degree 0~4Mpa | 1 | ||||
| WTQ-280 | Thermometer M33*2 2.5 degree | 1 | -40ºC~60ºC | |||

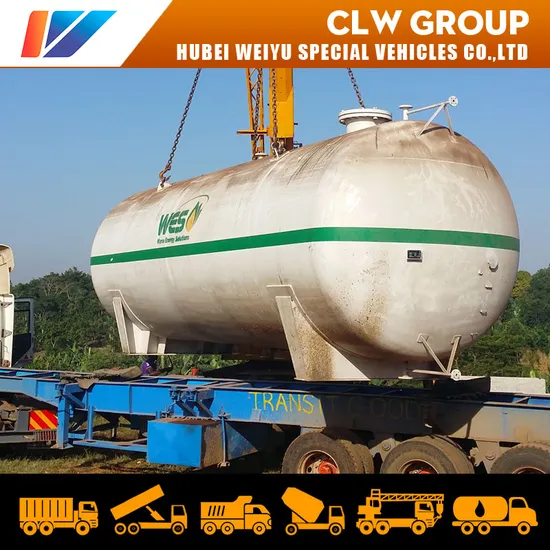

Product Show
We supply customized drawing for every storage tank
| Nozzle data | |||||
| Characters | Size | Pressure(MPa) | Connect | Junction surface | Purpose |
| a | DN50 | 25 | HG20592-WN | RF | Drain outlet |
| b | DN50 | 25 | HG20592-WN | RF | Liquid phase outlet |
| c1-2 | DN50 | 25 | HG20592-WN | RF | Gaseous phase balanced outlet |
| d | DN50 | 25 | HG20592-WN | RF | Liquid inlet |
| e | M33*2 | Screw-thread | Thermometer connection | ||
| f1-2 | DN25 | 25 | HG20592-WN | RF | Lever gauge connection |
| g | M20*1.5 | Screw-thread | Pressure Gage | ||
| h | DN100 | 25 | HG20592-WN | RF | Safety valve connection |
| i | DN50 | 25 | HG20592-WN | RF | Emptying mouth |
| j | DN450 | 25 | HG20592-WN | FM | Manhole |
Main Structure Diagram
Production Process of LPG Gas Station Tank
We supply package solution for lpg station building as follows
