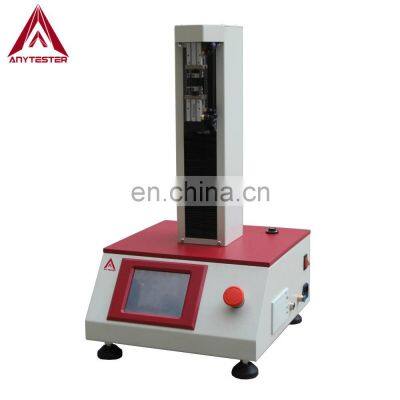

MIni Desktop Single Yarn Strength Tester with Built-in Mini-printer

Product Description

Product Description
Product Description
HY005E Single Fiber Strength Tester is used to determine the breaking load, elongation at breaking load, load at specified elongation, elongation at specified load, creep, etc. of natural fiber, chemical fiber, metal wire, hair, carbon fiber, etc.
Standard

ISO 5079	ISO 11566	QB/T 2173	ASTM D 3822
BS 4029	GB/T 14337	GB/T 9997	GB/T 13835.5
Note: For more standards, please contact us!

Specification

Item	HY005E
Load range	1000cN
Resolution	0.01cN
Load error	≤±0.05%F·S
Load precision	≤±0.5% when 1%~120% of load range
Data collection frequency	≥1000Hz
Test speed	2～200mm/min
Gauge length	≤200mm
Elongation resolution	0.01mm
Min. clamping distance	0.1mm
Clamping distance set method	Digital set or auto set
Unit conversion	N, cN, kgf, mm, lb, in
Dimension	400*400*600mm
Power Supply	AC 220V 50Hz
Weight	30kg

Details & Features
★Test functions:F1. Tensile testF2. Elasticity test at specified elongationF3. Repeated tensile test at specified elongation with settable two stop timeF4. Elasticity test at specified loadF5. Repeated tensile test at specified load with settable two stop time★Dynamic data collection frequency more than 200Hz, will not lose peak value, more objectively reflect the material mechanics performance;
★LCD touch screen, software in both English and Chinese, easy and convenient to operate;
★High reliability and long service life;
★Linear density can be set freely;
★NXP 32-bit industrial-grade single-chip microcomputer control, 16 bit A/D converter, anti-interference is very good, data transmission fast;
★The test data (max, min, average, etc) display in each test;
★Pre-force can be set freely;
★The force calibration adopt digit calibrate, convenient and clear;
★With built-in mini-printer;
★With pneumatic clamp.
