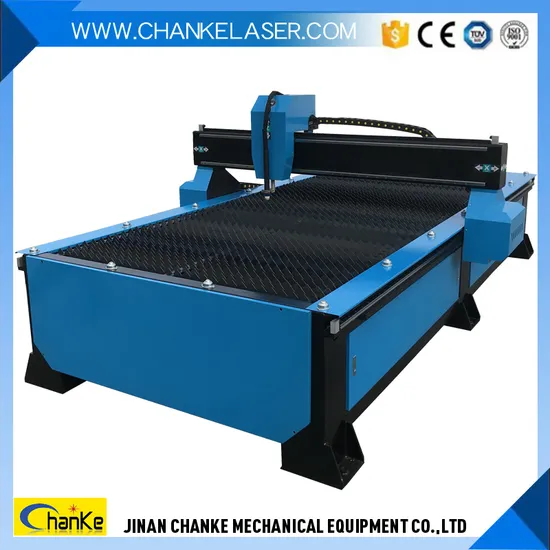

1500X3000mm 25mm/ 150mm Metal Pipe Sheet Panel Alumnium Brass Big Thickness Iron CNC Plasma Cutting Machine

Product Description

CNC Plasma Cutting Machine with Good Quality

No.	Description	Plasma cutting machine
1	Working Size	1500*3000mm
2	Z Axis Clearance	150mm
3	Table Type	Knife table (Teeth table And Water table can be optional)
4	Transmission System	Rack Pinion And Hiwin Linear Rails For X/Y
5	Driving System	Stepper Motor And Drivers(Servp motor is optional)
6	Max. Cutting Speed	12000mm/Min(different configuration and different material and thickness speed is different)
7	Max. Travelling Speed	30000mm/Min(different configuration speed is different)
8	Working Voltage	380V/3ph(220V/3ph is optional)
9	Plasma Generator	According to your requirements
10	Arc Mode	Non-Contact Arc, Arc Pressure Adjuster
11	Max. Cutting Thickness	6/15/18/20/30mm
12	Working Material	Steel, Aluminum, Galvanized Sheet, Titanium Plate, Platinum Plate and almost all of the metal

Application:

Advertising industry:
Advertising signs, logo making, decorative products, production of advertising and avariety of metal materials.
Metal industry:
For steel, Carbon Steel, Stainless steel, alloy steel, spring steel, copper plate, aluminium plate,gold, silver, Titanium and other metal plate and tube.

cnc plasma cutting machine Features
1. Fast cutting speed,high precision and low cost.
2.With firm and reasonable structure,the machine is easy to operate and durable for use.
3.The cutting incision is thin and tidily and can avoid the second processing.
4. High configurated CNC system,auto arc-striking and stable performance.
5.Together with other advertising equipments,they form an advertisement producing line which completely solve the problem of traditional manual mode.
6. Working with computer and support G code and files of Uncannest software (specilized in cutting metal material) (optional Fastcam software)
7.It can cut metal plate of advertising 3D lighting letter and flute profile letter with high cutting precision.(USA power is optional)
8.Start control system and Start THC device
cnc plasma cutting machine Components
A : Main machine assembly including: rack, beam, moving parts, pipe parts, transverse slide line rack, vertical and transverse transmission parts and so on.
B : Rail assembly including : 6 pairs of main rail and assistant rail and accessories, 2 meters per pair.
C :Plamsa torch or flame torch
D : Electric control assembly including : electric cabinet, longitudinal and transverse motors and accessories.
E: Gas assembly including : general pipe for three way of gas supplyelectromagnetism valvepressure gaugetemper preventing equipment and so on.
F: Height adjustment: Torch Height Controllor (can cut different height material ).
