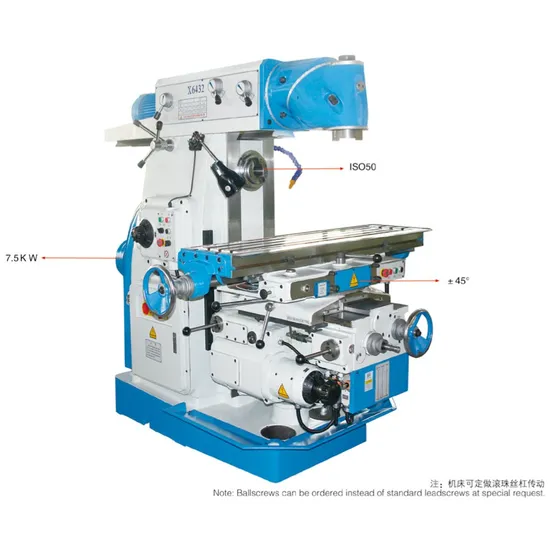

X6432 RAM Milling Machine Machine Tool
| US$5,000.00-50,000.00 | 1 Piece (MOQ) |
Basic Info.
Model NO.
X6432
Automatic Grade
Automatic
Precision
High Precision
Certification
GS
Condition
New
Transport Package
Woodencase
Origin
China
Production Capacity
1000pieces/Year
Product Description
Product DescriptionProduct Parameters
| Specification | Unit | X6432 | X6432A |
| Table size | mm | 320x1325 | 320x1600 |
| Max Longitudinal travel(manual/auto) | mm | 700/680 | 900/880 |
| Max transverse travel(manual/auto) | mm | 255/240 | |
| Max transverse vertical travel(manual/auto) | mm | 320/300 | |
| Max rotary angle | ±45° | ||
| T Slots(N WD) | 3/18/70 | ||
| Spindle hole taper | mm | 7: 24 IS050 | |
| Distance of Ho-izontal spindle axis to table surface: | mm | 30 ~ 350 | |
| Distance of table center to vertical spindle | mm | 190-510 | |
| Distance of table center to vertical ways of column | mm | 470-215 | |
| Distance of table center ram | mm | 155 | |
| Speed steps | (V)12 (H)18 | ||
| Spindle speed range | r.p m | (V)60-1750 (H)30-1500 | |
| Table feed steps | 18 | ||
| Table feed range Longitudinal | mm/min | 23.5-1180 | |
| Table feed ranqe cross | mm/min | 23.5-1180 | |
| Table feed range vertical | mm/min | 8-394 | |
| Table rapid moving speed Longitudinal/cross | mm/min | 2300 | |
| Table rapid moving speed vertical | mm/min | 770 | |
| Power of spindle | Kw | (V)4 (H)7.5 | |
| Spindle of motor range | r.p.m | 1440 | |
| Feed motor | Kw | 1.5 | |
| Feed of motor range | r.p.m | 1440 | |
| Net Weight | Kg | 2900 | 3000 |
| Overall sizes | mm | 2294 x 1770x 1780 | 2294 x 2050 x 1780 |
