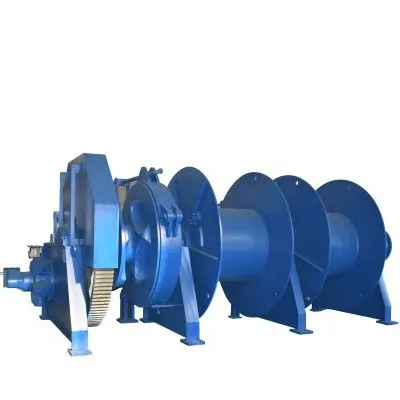

Applied to Fishing Vessels Steel Wire Rope Mooring Anchor Winch

Product Description

The design and application of hydraulic windlass not only improve the anchoring and mooring efficiency of ships, but also enhance the operational flexibility of ships under various environmental conditions. By driving the hydraulic pump with an electric motor, the hydraulic energy generated is converted into mechanical energy, which drives the anchor machine to operate and complete the tasks of anchoring and lowering. This is of great significance for ensuring the safety and stability of the ship. In addition, the use of hydraulic windlass also involves various purposes such as mooring, maneuvering, and emergency response of ships, and is an indispensable part of ship equipment.
Compact structure:The hydraulic anchor windlass has a relatively compact structure, which means it is more efficient in space utilization and suitable for installation on ships with limited space.
Smooth operation:The characteristics of the hydraulic system make the operation process of the anchor windlass smoother, reducing mechanical vibration and noise, and improving the comfort of the working environment.
Good transmission performance:The hydraulic system can provide good transmission performance, adjust speed and force according to different work requirements, and adapt to different working environments and conditions.
High manufacturing technology and maintenance requirements:Due to the complexity and efficiency of hydraulic systems, their manufacturing technology requirements are relatively high, and regular inspections and maintenance are needed to ensure stable operation and extend the service life of the system.
Specifications:
1) Drive: Hand/electric / hydraulic
2) Configuration: single in vertical / horizontal arrangement / double gypsies in horizontal
3) Chain size: 16 mm to 127 mm
4) Chain speed: complying with ISO requirements
5) Clutch: manually operated dog clutch
6) Brake: manually and hydraulic operated band brake
7) Control: local control
8) Paint: According to customer requirements
Hydraulic windlass is a windlass that mainly relies on hydraulic devices to execute and control actions. Hydraulic windlass is also called electric hydraulic windlass because its hydraulic energy comes from the oil pump device driven by the motor. It has the following characteristics:
(1) It has good speed regulation performance.
(2) Low speed and high torque hydraulic motor is usually used, with low speed and large output torque. It is no longer necessary to set a huge mechanical reducer, and can directly drive the chain wheel.
(3) The hydraulic transmission has self braking performance and is safe and reliable.
(4) Compact structure, small weight and size per unit power
(5) It is easy to operate and maintain.
(6) Easy remote control and automation

Professional hydraulic anchor marine windlass
Drive	Electric/Hydraulic /Manual Driven/ Diesel
Configuration	Single/Double Gypsies and Warping End
Gypsy Size	U2 or U3 from 17.5mm to 127mm
Working Load	1 Tones to 350 Tones
chains Speed	Complying With ISO/Classification Society Requirement
Clutch	Manual /Hydraulic Operated Jaw Clutch
Brake	Spring Applied Pneumatically or Hydraulic Released Band Brake
Release	Emergency Quick Release
Control	Local Control Console and remote Control Panel
Options	Drag Brake System ; Length and Tension Monitoring Systems Stainless Steel Brake Drum
Our Advantages:	1.High quality with competitive prices 2.Much experience in production and exportion 3.Special design for different clients. 4.Short delivery time if clients need urgently 5.Certification: ABS, GL, LR, BV, NK,DNV, CCS,etc..

Main specification and parameter for hydraulic windlass
Item No.	Chain Dia(mm)	WorkingLoad(kN)	Anchor Speed (m/min)	Working Pull (kN)	Working Speed (m/min)	Motor Power (kW)
NHW01	19/20.5/22	15.3/17.9/20.6	≥9	15	≥12	7.5
NHW02	24/26	24.5/28.7	≥9	20	≥12	11
NHW03	28/30	33.3/38.3	≥9	25	≥12	15
NHW04	32/34/36	43.5/49.1/55.1	≥9	30	≥12	22
NHW05	38/40/42	61.4/68.0/75.0	≥9	50	≥12	30
NHW06	44/46/48	82.3/89.9/97.9	≥9	60	≥12	37
NHW07	50/52/54	106.3/114.9/123.9	≥9	60	≥15	37
NHW08	56/58/60	133.3/143.0/153	≥9	80	≥15	40
NHW09	62/64	163.4/174.1	≥9	100	≥15	47
NHW10	66/68	185.1/196.5	≥9	120	≥15	55
NHW11	70/73	208.3/226.5	≥9	147	≥15	60
NHW12	76/78	245.5/258.6	≥9	147	≥15	70
NHW13	81/84	3117/335.2	≥9	167	≥15	90
NHW14	87/90	359.5/384.8	≥9	200	≥15	102
NHW15	92/95	402.2/428.7	≥9	200	≥15	115
NHW16	97/102	446.9/494.2	≥9	250	≥15	130
NHW17	105/107	523.7/543.8	≥9	250	≥15	145
NHW18	111/114	585.2/617.3	≥9	250	≥15	160
NHW19	117/122	650.2/707.0	≥9	250	≥15	187
NHW20	132	827.64	≥9	300	≥15	250

After-Sales Service
Our after-sales service provide:
1.14 months warranty when products leave the factory, or 12 months warranty after installation
2. 2 years spare-parts provided for better maintenance.
3.Professional technical staffs provide installation, commissioning and training services.
4.Delivery with English user manual, parts manual, product certification and other relevant certificates.
5.Technical advisory for any time and Engineers available to service machinery overseas.
