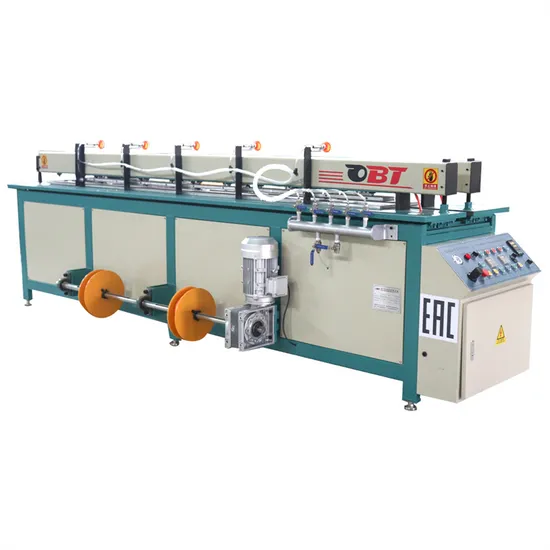

Cheap Top Quality Plastic Welding Machine 90 Angle
| US$10,000.00-14,000.00 | 1 Piece (MOQ) |
Basic Info.
Model NO.
OBT-B3000-90
Warranty
2-year
Condition
New
Certification
ISO 9001:2000, ISO 9001:2008, CE
Automation
Automatic
Suitable for
Plastic
Type
Beading Machine
Transport Package
Wooden Box
Specification
3320*1860*1890
Trademark
OBT
Origin
China
HS Code
85158090
Production Capacity
5000PCS Per Year
Product Description
| Model | OBT-PH2000-90 | OBT-PH3000-90 | OBT-PH4000-90 | OBT-PH5000-90 | OBT-PH6000-90 | ||||
| plate thickness(mm) | 3-30mm | 3-30mm | 3-30mm | 3-30mm | 3-30mm | ||||
| welding effective length(mm) | 2000 | 3000 | 4000 | 5000 | 6000 | ||||
| Minimum diameter(mm) | 380 | 400 | 450 | 550 | 550 | ||||
| Gas source pressure(kg.f/cm2) | 4to8 | 4to8 | 6to8 | 6to8 | 6to8 | ||||
| Energy source(M fand/min) | 0.0032 | 0.0052 | 0.0062 | 0.0068 | 0.0075 | ||||
| Rated voltage(V) | 380 | 380 | 380 | 380 | 380 | ||||
| Heating method | whole heating | whole heating | whole heating | whole heating | whole heating | ||||
| Heating power | 4KW | 6KW | 8KW | 10KW | 12KW | ||||
| Winding motor power | 1.5KW | 1.5KW | 1.5KW | 1.5KW | 1.5KW | ||||
| Tensile strength of welding | >=95% | >=995% | >=995% | >=995% | >=995% | ||||
| Dimensions(mm) | 2850*1200*1200 | 3800*1200*1200 | 4850*1200*1200 | 5850*1200*1200 | 6850*1200*1200 | ||||
| Welding 90 angle | yes | yes | yes | yes | yes | ||||
| Control system: Press-button control or touch screen control elected. | |||||||||
| Material of heater:imported aluminum heater, teflon coated. | |||||||||
| Suitable for material:PP, PE, HDPE, PVDF, PVC, PPN | |||||||||
| Application: Plating equipment, environmental equipment, chemical containers, sewage treating pipe, ventilation systems and so on. |
