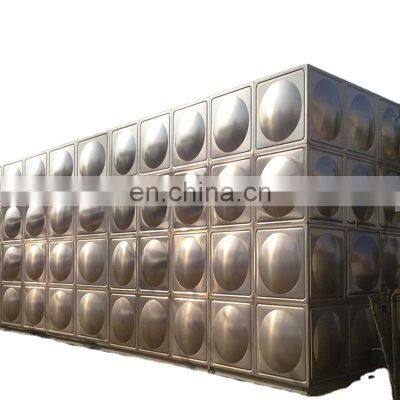

500m3 Welding Stainless Steel Tank SS304/316 drinking Pressed Steel Sectional Water Tank

Product Description

Product Description
Product DescriptionSS 304 316 Welding Stainless Steel Panel Water Tank stainless steel drinking water storage tank The import food level stainless steel drinking water storage tank SS stainless steel plate, interdicts the sunlight thoroughly and maintains the water quality and no algae growing. Factory use unique stainless steel plate and the high difficulty ramming formation craft to achieve the high strength requirements with the smallest material consumption.The weight only be one third of the ordinary panel. Insulate panel fully in line through the overall locking and covering the surface. We can meet your requirement to model different size of the panel, the volume can meet all design requirements. And if the installation site has no special request we can provide insulation services. Stainless steel water tank specificationRaw material Stainless steel sheet SS304-2B, SS316LPanel size 1000*1000,1000*500,500*500Panel thickness 1.5mm,2mm,2.5mm,3mm,4mmProcess techniqueRamming craftAccessoriesTiepiece, support,flange/socket, ladder,angle iron,water gauge,welding stickStainless Steel Water Tank Structure Stainless steel water tank including four parts:(1) Panels ( Bottom panel, side panel, cover panel and manhole)(2) Internal parts ( Internal ladder, lacing wires, support,flanges);(3) External parts ( External ladder, water level indicator );(4) U-steel base ( Painted surface treatment or hot dipped galvanized surface treatment).Stainless Steel Water Tank AccessoriesAccessories and Specifications1. Support for Panels: The panels shall be supported externally or internally by an adequate support system. External Reinforcement - Hot Dipped Galvanized SteelInternal Reinforcement - Hot Dipped Galvanized or Stainless Steel 304 rod support and tie-rod2. Sealing Materials: Non toxic Rubber foam to be used for all jointing, it is especially developed with long experience and technology on SMC products. It maintains soft itself and adhesives even at low temperatures3. Bolts, nuts and washers for the assembly of panels: Exposed externally are hot dipped galvanized steel and in contact with water internally are hot dipped galvanized steel or stainless steel 3044. Flange: the flanges for inlet, outlet, drainage, overflow are hot dipped galvanized steel or stainless steel 3045. Ladders: SMC sectional tank of 1.5m depth or more shall be provided with internal ladder made up of materials same with the supports. The external ladders shall be galvanized mild steel or equivalent6. Drainage: The dome shaped bottom panel with a concave drain panel facilitates complete and fast drainage. The concave drain panel has been designed to ensure the periodic cleaning and inspection of tank7. Overflow Screens: it can be supplied with a screen overflow having a micro mesh filter8. Man-hole opening & Inspection Hatches: the size can be customized; normally it is supplied with a standard size of: 600 x 600mm. the opening can be designs of bolt, seal-tight locking arrangement9. ABS roof vent with PE insect screen10. Float level indicator, optional SS304 for internal and external support structure are available on request.Stainless Steel Water Application · Water storage(drinking water)· National,provincial and state parks· Construction and fire-fighting water supply· School water supply· Water circulation system· Geological survey and industry· Agricultural feeding operations· Residential cisterns· Car washes containment· Temporary water storage tanks for expansion of the heating systemcontact
