Automatic 5 Axis Bridge Saw Machine for Porcelain Processing

Product Description

Product Parameters

Model	5+1 Axis CNC bridge saw	Unit
Worktable Size	L3500*W2000	mm
Maximum Cutting	L3500*W2000*H90	mm
Maximum Chamfering	L3500*W2000*H60	mm
Blade Diameter	350-425	mm
Main Motor Power	22(permanet magnet motor with frequency)	kw
Router Power	5.5	kw
Control Center	industry computer with CNC
Controller Option	own CNC system or ESA system from Italy
Driving Motor	Servo motor
Router Max Speed	24000	RPM
Total Power	35	kw
Suction Cup Lifting Weight	200	kg
Head Rotate	0°-360°
Head Tilt	0°-90°
Cylinders	5	group
Dimensions	L5750*W3260*H3500	mm
Water Consumption	2	m³/h
Total Weight	5.4	t
Main Part Delivered Size	5750x2200x2500	mm
Machine Delivered Method	Main part delivered as whole(HQ container)

Product Description
For processing Marble, Granite, Porcelain, and Quartz Stone Countertops, we provide 5+1 Axis CNC Bridge Saw.
It is a precise, effective, and user-friendly machine. The operator begins processing after taking a picture of the plate and adding the drawing layout to the image.Saw blades, milling cutters, suction cups, and pressure plate cylinders will automatically generate processing steps according to the Drawing. If the blade-cutting path conflicts, the suction cup will help to move slabs automatically. For basin, Kitchen Sink, Countertop, and inner angles, the milling cutter can do excellent work with 24000rpm Electric Spindle. Therefore, the machine is used to help install countertops without any dust.
We also provide OEM/ODM production machine service; if you require anything, feel free to contact us.
Functions:
* Straight Cut: various polygons, vertical Cut, inclined Cut, horizontal Cut, Chamfering
* Curve Cut: Curves, Waves,Circles, Ovals, and Maws.
* Stone Milling, Engraving, Profiling for making Inner angles, L-shaped countertops and four-sided under-hung countertops/Kitchen Sink/ Basin
*Vein matching: match vein and seam of your slabs with ease.
*Thickness Measurement with Stone thickness probe
Options:

Option: ESA System	Option: Hot Galvanized (USD)	Option: front sliding doors	Option:worktable with plastic plate and rubber
+5000	+2000	+2000	+1000

Product Features
1. Electric spindle with 24000rpm
* Type: electric spindle
* Rotating speed: 0-24000 rpm
* Router Power: 5.5 kw

The rotating speed of this electric spindle is super higher. It makes fast & precise hole-drilling, engraving, curve cutting and corner cutting for Countertop, Kitchen Sink, etc.
2. With a Camera to Locate the Position
This Machine equipt a high-precision camera to locate the position of the plate and display it in the cutting procedure
3. Working Head can Tilt 0~90 degree and Rotate 0~360 degree.
The A axis can automatically rotate 0-90°, while the C axis can rotate up to 360°.
4. Worktable Turnover 85°
This worktable can be flipped over 85° to load slabs easily.
5. With a Group of Rotating Cylinders

A group of rotating cylinders on the side of the work table will automatically press the plate when the milling cutter works and automatically withdraw after the milling cutter works.
6. Suction Cup is equipped
The machine has Suction Cup to move slabs automatically.If the blade-cutting path conflicts, the suction cup can help.

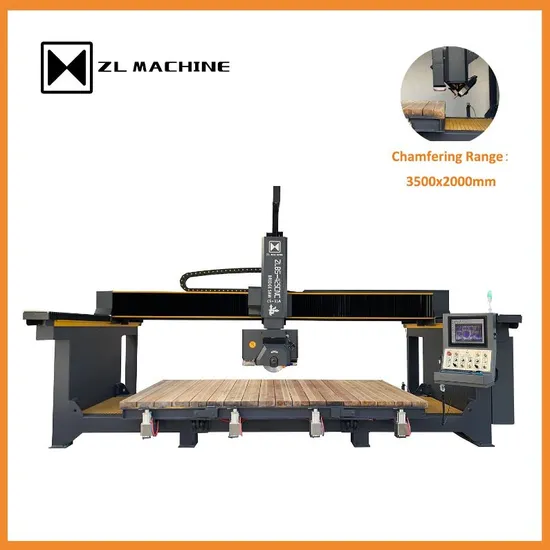

7. Four-Side Chamfering with Range 3500X 2000mm

This machine has excellent four-side chamfering function, with excellent chamfering range 3500x2000mm.

8. 17" Color Touch-Screen
This Machine has an industrial computer and a 17" color touch-screen.

9. CNC System and Built-in Library
The system has a built-in library of conventional-shaped drawings and also supports DXF format imports from designer or countertop measuring gauges.
10. With Automatic Tool Setting Gauge
An automatic tool setting gauge is equipped that automatically checks the blade.
11. 22-KW Permanent Magnet Motor
The (5+1)A type with a 22-KW permanent magnet motor can be cut along with the thickness of the cutting plate, automatically adjusting the output power, strength, and power-saving environmental protection.
