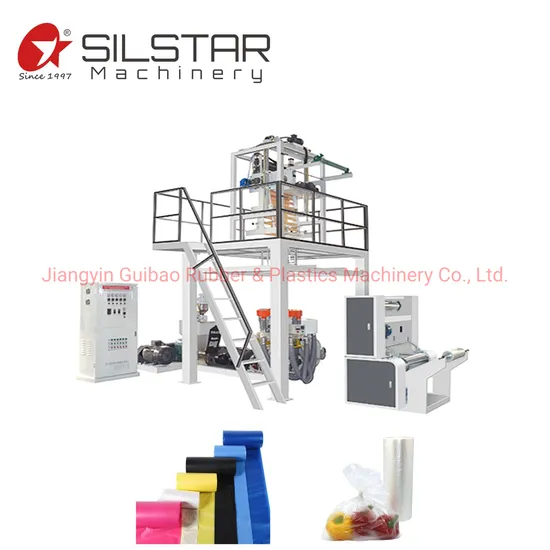

Plastic Film Extruder Plastic Film Blowing Machine for HDPE, LDPE, Biodegradable Film

Product Description

Company Profile
Silstar machinery founded in 1997, covers an area of 32,000 m2,we focused on film blowing machine, bag making machines for plastic bag, and compostable bag. We have obtained 2 invention patents on garbage bag making machine and labeling machine, and 13 utility model patents, which has become one of the leading companies in this industry. By now It has already got the CE certification, ISO9001 quality certification, and ISO45001 safety management certification.
Product Description
1. Extruder from silstar is used to blow PE film and has been widely used for producing, packing film, bag or film for textile and clothing and other packing material.
2. The main motor controlled by an inverter improve the speed of regulating the stability of the main motor and save 30% electric power.
3. The screw and barrel adopt 38 CrMoAl which has been nitrogen treated and the traction frame adopts lift type. No matter what size the film is, big or small, it can achieve the best effect of cooling.
4. Automatic rewinder, changing roll by machine without labor.


Product Parameters

Model	GBCA-600	GBCE-1000	GBCE-1200	GBCE-1600
Screw diameter	45mm	55mm	65mm	75mm
Screw length proportion(L/D)	28:1	28:1	28:1	28:1
Film-blowing width	100-600mm	300-1000mm	300-1200mm	300-1600mm
Film-blowing thickness	LDPE0.015-0.20mm HDPE0.008-0.05mm
optional device	rotary die unit, automatic change roller device, fast change filter
Output	10-45kg/hour	20-60kg/hour	20-80kg/hour	50-100kg/hour
Main motor power	11kw	22kw	37kw	45kw
Dimension of the machine	5000×1500×4000mm	5400×2800×4800mm	5400×3000×6800mm	6200×3400×7500mm
Total weight	3000kg	3800kg	4200kg	4800kg

Detailed Photos

Certifications

Packaging & Shipping

Exhibition
FAQ

1. Q: How long will your engineer reach our factory? A: Within 7-15 days after the machine arrives at your factory.

2. Q: How many days will you finish installing? A: We will finish installation and training within 3-7 days.

3. Q: What should we charge for your engineer? A: You should charge for the cost of our engineer's visa, round trip tickets, accommodation, and also their salary of 100USD one day per person.

4. Q: How long is your machine's warranty period? A: All our machines have one year guarantee, starting from the finished installation.

5. Q: How could we do after one year warranty period? A: We also can do service for you, but you need to pay the salary for my technician 100USD/day.

6. Q: How could we do if the parts are broken within the warranty? A: We would express the free replacement parts during the warranty date.

7. Q: Does your engineer understand English? A: Our engineer understands a little English. All of our engineers have more than five years machine installation experience.

8. Q: How many workers do we need to run those machines? A: Usually need one person to operate the machine.

9. Q: How do we solve the machine problem after your engineer leaves? A: Generally speaking, there will be no problem after finishing the installation. In case you have any problem. You can contact our sales at any time. Our engineer will take a solution video according to your description.

10. Q: How can I visit your company? A: It takes 30 minutes by train from Shanghai to our factory.
