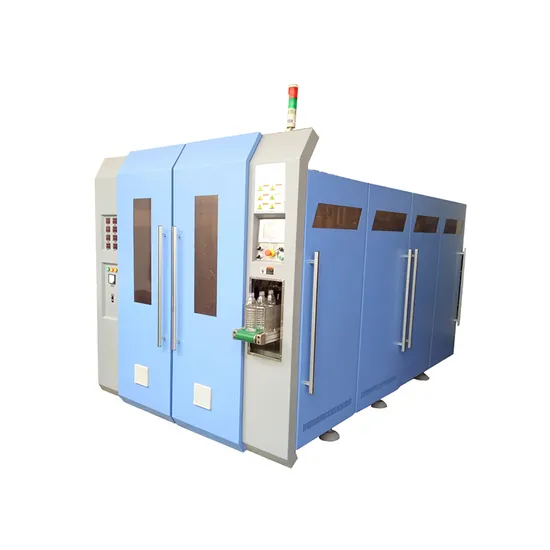

Full Automatic 4000b/h 500ml Plastic Bottle Making Machine

Product Description

Full Automatic 4000B/H 500ML Plastic Bottle Making MachineProduct Description:
Application:
Suitable for producing PET plastic containers and bottles from 100-1500ml. It is widely used to produce the carbonated drink bottle, drinking water bottle, oil bottle, cosmetics bottle, wide-mouth bottle etc.
Features:
1. Adopting double crank to adjust mould ,heavy locking mould, stable and fast , adopting infrared oven to heat the perform ,the perform rotated and heated equally.
2. The air system has been divided into two parts: pneumatic action part and bottle blow part to meet the different requirements for the action and blow. It can provide sufficient and steady high pressure for blowing large irregular shaped bottles.
3. The machine is also equipped with muffler and oiling system to lubricate the mechanical part of the machine.
4. The machine can be operated in the step-by-step mode and the semi-auto mode.
5. The machine is small with low investment, safety lock system for the blow molding system, ensure safety operating.
6. Volume exchange will be through the PLC control panel by setting the film sending time and filling time only.
7. One person can operate semi-auto perform loading and product bottle discharging and combining the fully auto blower process.
8. Space saving and low cost for equipment investment.
9. Sound distinguish and lubrication device is equipped on the machine for easy maintenance.
Machine specifications:

Bottle specification	Max volume of bottle	1500(ml)
	Product material	PET
	Preform length	≤90(mm)
	Preform inner diameter	≤310(mm)
Main machine power	Power supply	220V/380V
	Power	25(kw)
Machine size	L*W*H	3000x1918x2180(mm)
	Weight	3800(kg)
Production capacity	Depend on bottle design	4000b/h(500ml)

Company Information:
Shine Dew Water Equipment Co., Ltd. is a specialized manufacturer of drinking water treatment equipment, auto bottling machines, labeling machines and other auxiliary equipment, with more than 10 years of experience in China. We have exported our machines to Central and South America, Africa, the Middle East and Southeast Asia. Furthermore, we have completed many turnkey projects of water treatment factories for our customers from the above-mentioned regions. Moreover, we can also provide turnkey services for water bottling plants and beverage production plants.
Our goal is to assist our customers to provide healthy water for human beings. We sincerely hope to develop together with our customers in the field of water treatment industry. We welcome your contact via email, telephone and fax. We will always do our best to serve you.
Certifications:
Main Products:
Reference Project:
Full Automatic 4000B/H 500ML Plastic Bottle Making Machine for a Nigeria Customer:
FAQ:
Q1: Can you provide more information about this product, and quote the best price?
A: Sure, please contact us via any methods showed on this page, and we will send our product catalog, company profile for your reference.What's more, we will customize detailed offer according to your specific requirements.
Q2: The price is a little higher than my budget. Can you offer a better price?
A: The first proposal is preliminary design, as a professional buyer; pls don't only focus on the price. If you have any question or request, pls don't hesitate to contact us. Then we will adjust the configuration and quality according to your request. Your feedback will lead us to make the proposal to match your request.
Q3: What else need to be paid attention besides price?
A: except for the price, we also need pay attention to quality, product construction, design principle, configuration of part list, reasonability, convenience of operation, professional, service and etc.
Q4: Can you provide turnkey project service?
A: Yes, of course, we can provide the full set of turnkey project service to you.
Q5: How long of your warranty?
A: Regarding warranty, normally we offer 1 year warranty/3000 hours warranty, and we also offer lifetime maintenance.
Q6. Do you accept OEM order?
A: Yes, we have strong design team and technical team. Therefore we can also accept OEM and customized order with special requirements.

For more details, please click "Send" now, we are always willing to help you.
