795mcm Reinforced Aluminium Bare Conductor ASTM Standard Aacsr ACSR Grease Rabbit Moose Conductor

Product Description

Product Description Aluminum Alloy Conductor Steel Reinforced (AACSR)
Application:
Aluminum Alloy Conductor Steel Reinforced (AACSR) is used for overhead transmission and distribution lines. Also, as neutral messenger for low voltage multiplex cables. AACSR has higher resistance to corrosion. It can be used in coastal regions owing to its high degree of corrosion resistance and it is also used extensively within the Railway and Metro industries.
Applicable Standards:
Aluminum Alloy Conductor Steel Reinforced (AACSR) is produced according to ASTM B-232, ASTM B 549, BS EN-50182, CSA C 61089, AS/NZS 3607, DIN 48204, IEC 61089, GB/T 1179.CSA C49.2-10, ASTM B711 or the standards agreed by both of the customers and us.
Advantages
AACSR provide light weight and high conductivity, and corrosion resistance. Aluminum alloy has great conductivity, which can effectively transmit electricity and reduce electricity energy loss. It can be used under harsh environmental conditions, such as high temperature, high humidity, strong alkali, acid and other environments.
Production Scope:
According to our produce machines, AACSR products could up to Max. cross-section 3500MCM/1750mm2, Max. Strand numbers are 127.
Construction:

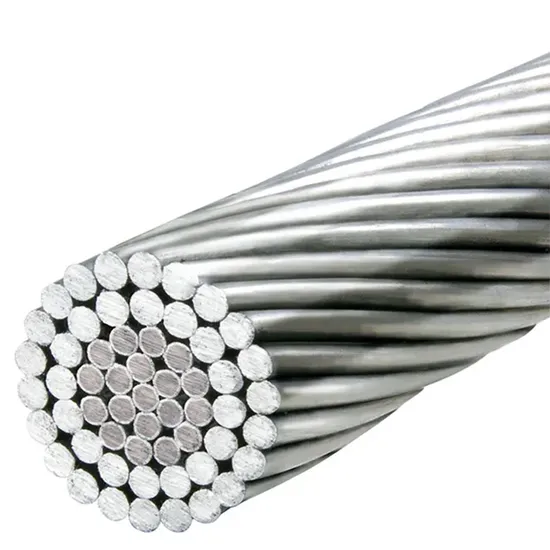

AACSR: Aluminum alloy wires, concentrically stranded around galvanized steel wire
Product Parameters

Technical characteristics of AACSR / U.S.A Sizes - ASTM B711
AL Alloy Area	Steel Area	Conductor Area	Stranding and wire diameter		Overall diameter	Mass per unit length	Rated strengthMin	Maximum D.C. Resistance at 20ºC
			Aluminum	Steel
mm2	mm2	mm2	No/mm	No/mm	mm	kg/km	KN	Ω/km
140	23	163	26/2.62	7/2.04	16.60	565	74.9	0.2400
140	33	173	30/2.44	7/2.44	17.10	643	87.4	0.2400
160	26	186	26/2.80	7/2.18	17.70	646	85.5	0.2100
160	38	198	30/2.61	7/2.61	18.30	736	100	0.2100
180	29	209	26/2.97	7/2.31	18.80	731	195	0.1870
180	42	222	30/2.76	7/2.76	19.30	823	112	0.1870
200	32	232	26/3.13	7/2.43	19.80	800	105	0.1680
200	47	247	30/2.91	7/2.91	20.40	915	124	0.1680
224	36	260	26/3.31	7/2.57	21.00	900	115	0.1500
224	52	276	30/3.08	7/3.08	21.60	1025	139	0.1500
250	41	291	26/3.50	7/2.72	22.20	1008	128	0.1350
250	58	308	30/3.26	7/3.26	22.80	1149	152	0.1350
280	46	326	26/3.70	7/2.88	23.40	1127	144	0.1200
280	65	345	30/3.45	7/3.45	24.20	1286	171	0.1200
315	52	367	26/3.93	7/3.06	24.90	1272	162	0.1070
315	72	387	30/3.66	19/2.20	25.60	1438	190	0.1070
355	58	413	26/4.17	7/3.24	26.40	1430	182	0.0950
355	81	436	30/3.88	19/2.33	27.20	1614	210	0.0950
400	65	465	26/4.43	7/3.45	28.10	1616	206	0.0842
400	91	491	30/4.12	19/2.47	28.80	1818	237	0.0842
450	59	509	54/3.26	19/1.98	29.50	1706	208	0.0748
500	63	563	54/3.43	19/2.06	30.90	1878	228	0.0673
560	71	631	54/3.63	19/2.18	32.70	2104	256	0.0601
630	80	710	54/3.85	19/2.31	34.60	2365	285	0.0534
710	90	800	54/4.09	19/2.45	36.80	2664	321	0.0474
800	101	901	54/4.34	19/2.60	39.00	3003	361	0.0420
900	73	973	84/3.69	19/2.21	40.60	3060	353	0.0374
1000	81	1081	84/3.89	19/2.33	42.80	3400	389	0.0337
1120	91	1211	84/4.12	19/2.47	45.30	3816	437	0.0300
1250	102	1352	84/4.35	19/2.61	47.80	4255	489	0.0270

Detailed Photos
Packaging & Shipping
* We can design and produce ACSR according to client's requirement. Any requirement, feel free to contact us!
