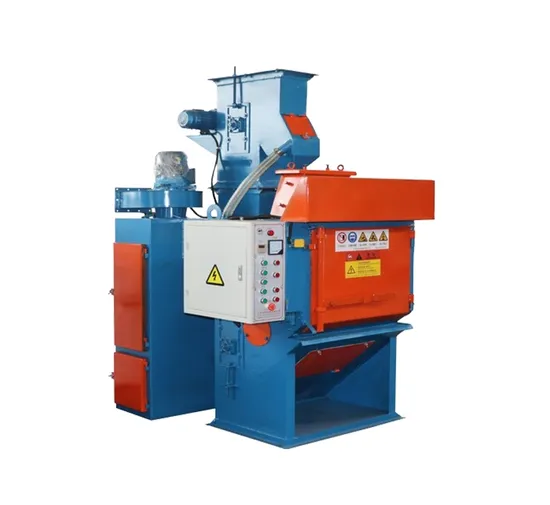

Q32 Series (Rubber) Crawler Type Shot Blasting Machine

Product Description

Q32 Rubber Belt Shot Blasting Machine for Small Parts Cleaning Brief Introduction
The tumble blast design is widely accepted as one of the most effective blasting processes for removing scale, rust and burrs from mass production parts.The tumble blast machine's endless rubber belt gently rotates the work pieces and uniformly exposes them to the abrasive stream for the entire blasting time. Product Description Main Benefit of Rubber Tumble Belt Shot Blasting Machines
Consistent and Uniform Blast Cleaning for Flawless Results: The equipment delivers an even and thorough cleaning effect across all surfaces, ensuring castings are perfectly clean with no traces of residue or impurities.
Gentle Yet Effective, Deformation-Free Cleaning: Utilizing advanced technology, the machine provides a controlled cleaning process that prevents any deformation or damage to the workpieces, maintaining their structural integrity.
Energy-Efficient Operation for Cost Savings: Designed with energy optimization in mind, the system maximizes power utilization, reducing energy consumption while maintaining high-performance cleaning standards.
Customizable Blasting Intensity for Versatile Applications: The adjustable blasting intensity allows for precise control, making it suitable for a wide range of casting types, sizes, and surface conditions, ensuring optimal results for every workpiece
Product Parameters
This series of equipment is suitable for surface rust removal or shot blasting of various types of workpieces, particularly for medium to large batches of castings and heat-treated parts with a unit weight of less than 25 kg that are resistant to collision. The technical specifications are as follows:
Model Q324 Q326 Q328 Q3210 Q3210

Capacity	0.3-0.6 t/h	0.6-1.2 t/h	1.2-2.0 t/h	2.0-2.8 t/h	2.0-2.8 t/h
Max Single Product Weight	5 kg	10 kg	15 kg	25 kg	25 kg
End Plate Diameter	Φ400 mm	Φ600 mm	Φ800 mm	Φ1000 mm	Φ1000 mm
Effective Volume	0.05 m³	0.15 m³	0.2 m³	0.3 m³	0.3 m³
Shot Blasting Volume	40 kg/min	150 kg/min	220 kg/min	250 kg/min	250 kg/min
Ventilation Volume	2000 m³/h	2200 m³/h	2600 m³/h	3500 m³/h	3500 m³/h
Total Power	≈6 kW	≈13 kW	≈19 kW	≈21 kW	≈26 kW

This machine integrates advanced domestic and international technologies and features the following highlights:
Equipped with a cantilevered centrifugal high-efficiency shot blaster, it boasts a simple structure, easy blade replacement, and exceptional cleaning efficiency.
Fitted with wear-resistant rubber tracks, it effectively reduces workpiece collision damage and lowers equipment operating noise.
Utilizes a pulse filter cartridge dust collector, with dust emission concentrations below national standards, significantly improving the working environment.
Automatic unloading after workpiece processing greatly reduces labor intensity for workers.
With its compact design, stable operation, low noise, and comprehensive functionality, this machine is an ideal choice for surface treatment applications.
Detailed Photos
Cleaning Effect
After Sales Service 1. Installation and commissioning issue: We will send 1-2 technicians to assist with machine installation, commissioning and training.
2. Warranty time: 12 months from date of commissioning completion.
3. Supply full English documents: Including foundation drawings, manual book, electric wiring diagram, electric manual book and maintenance book,etc.
FAQ Q: How many days to produce this machine? A: Some standard machines in stock, can be delivered right away after your deposit. Customized specially designed machine according to your specific requirement. From engineer designing to production completion, it needs about 30 to 50 days.Q: What does your factory do regarding quality control? A: We pay much attention to quality control from the very beginning to the end. Each machine is assembled and carefully tested before shipment.Q: What's your machine quality guarantee? A: Quality guarantee time is one year. We choose world famous brand components to keep our machine in perfect working condition.Q: Could you give installation and commissioning overseas? How long will it take? A: Yes, we supply overseas service, customers shall pay for the engineers flight tickets and local transport, hotel, food. Small machines usually takes 5 days, while big machines usually takes about 20 days even one or two months.Q: How can I trust you to deliver the right machine as I ordered? A: We will absolutely deliver a good quality machine as we discussed and confirmed in the order. The core of our company culture is innovation, quality, integrity and efficiency. Sirda is Made-In-China's Diamond supplier with none complaint from our customers.
Packaging & Shipping

Packaging Details	40'HQ container
Departure Port	ShangHai
Leading Time	Around 30 days
