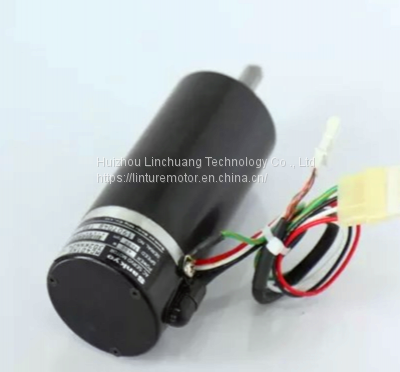

Nidec Sankyo MC401NS302KNN24 Electric Fanuc DC Servo Motor Moudel

Product Details

Product Description

Product Description
Detailed Product Description
Category:Model:Rated Output Power:Rated Speed:Series:Brand:High Light:

Industiral Servo Motor	MC401NS302KNN24
400W	3000r/min
MC401	Nidec Sankyo
ewing machine servo motor,ac servo motor

S-FLAG Flag ship Servo systemOur flagship servo system "S-Flag" servomotors are manufactured for consumer use that support a high level of reliability for industrial robots, our core products. We offer a wide lineup to meet the diversified needs of customers.
Features
Suitable for applications with high speed rotations.Can be used for most applications.
Suitable for applications with low mechanical rigidity such as drive belt machinery.
Use Applications
Embroidery Machine,Textile Machine,Packaging Machine etc
Removal Robot
Conveyer Machine
Processing Machine
Installing Precautions
Never remove the encoder or dismantle the motor body.
The motor shaft has anti-rust oil applied at the shipment. Please wipe off the oil before installing the motor. Make sure to perform centering (alignment) carefully and properly.
Operating the motor without sufficient alignments might cause vibrations or a shorter service life of the motor.
Connecting with a Mechanical System
When connecting the motor to a load, use a coupling to absorb misalignments so that the motor shaft load remains.
Within the rated load to the motor shaft.
Improper use may cause a shorter service life of the motor bearing and damage the shaft.
We recommend the use of flexible couplings.
Installation Orientations and Oil Seals
The motor can be installed either vertically or horizontally. Please observe the following precautions.
Horizontal installation: Face the cable pull unit down in order to protect the motor against oil, water and dust.
Vertical installation : For a motor combined with a decelerator being on top of the motor shaft, use an oil sealed motor to prevent the decelerator oil from seeping into the motor.
