Good Quality 11.0 mm Diamond Granite Wire with Rubber+Spring Fixing/Diamond Tool

US$30.00-33.00 50 Meters (MOQ)

Basic Info.

Model NO.

CCWS

Diameter

10.5mm, 11.0mm, 11.5mm

Beads Per Meter

40 Beads/ Meter

Connection

Rubber and Spring

Usage

Wire Sawing Concrete, Reinforced Concrete

Transport Package

Carton, Pallet

Specification

10.5mm, 11.0mm, 11.5mm

Trademark

COREDIAM

Origin

China

HS Code

82029910

Production Capacity

5000 Meters Per Month

Product Description

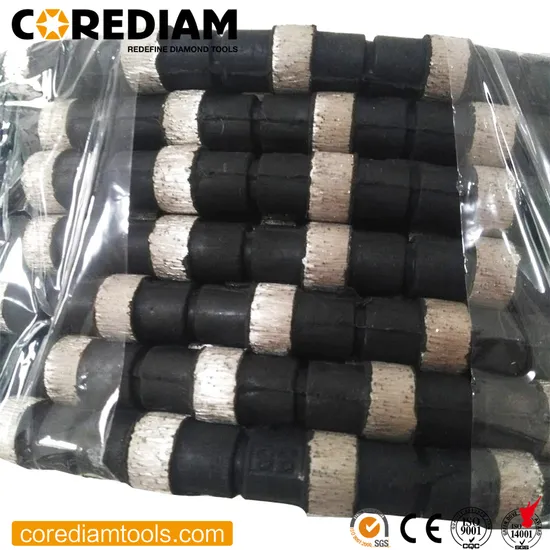

1. Diamond wire introduction
The diamond wire can be widely used in concrete, reinforced concrete, buildings, bridges, pipelines and underwater building. The diamond beads are sinter hot-pressed.
2. Features&cutting performance
- Achieve a cut of large, irregular buildings;
- Cutting in any direction and partial cutting;
- High efficiency and safety without environmental pollution;
- The cutting process can be controlled by long distance.
- This item of diamond wire has very good cutting performance, lifespan can reach 2.5 sqm per meter
3. Types of equipment
4. Corediam sales network
5. Specification

Item No.	Bead Diameter	Beads No./Meter	Fixing
CCWS10540	10.5mm	40	Rubber+Spring
CCWS11040	11.0mm	40	Rubber+Spring
CCWS11540	11.5mm	40	Rubber+Spring

Cutting Material	Line Speed m/s	Cutting Speed sqm/h	Wire Life sqm/m
normal concrete	22-28	2.0-5.0	2.0-7.0
heavy reinforced concrete	18-25	0.8-2.0	1.5-2.5
steels	16-22	0.5-1.0	0.5-1.2

6. Delivery time
1 week for samples
2-3 weeks for batch orders.
