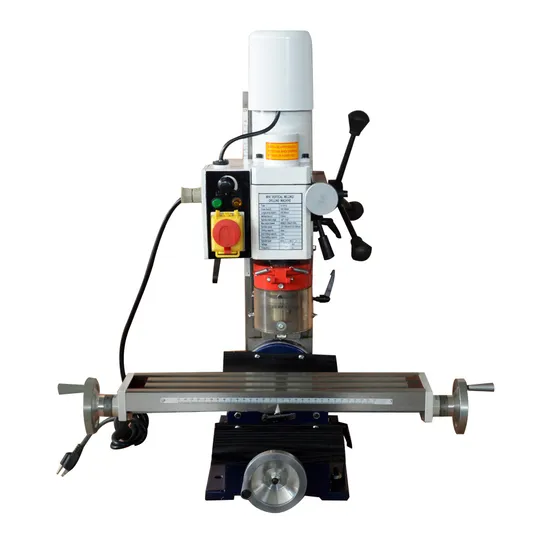

ZAY7013V 13mm Drilling Milling Machinery for hobby Use
| US$580.00-700.00 | 1 set (MOQ) |
Basic Info.
Model NO.
ZAY7013V
Type
Worktable Milling Machine
Object
Tool
Structure
Desktop
Milling Cutter Type
Vertical Milling Cutter
Milling Cutter Structure
Integral
Controlling Mode
Artificial
Automatic Grade
Manual
Precision
Normal Precision
Certification
GS, CE, ISO 9001
Condition
New
Table Size
410X112mm
Drilling Capacity
16mm
Spindle Stroke
180mm
Spindle Taper
Mt3
Motor Power
550W
Transport Package
Standard Plywood Package
Specification
CE
Trademark
WMT
Origin
Anhui
HS Code
84592900
Production Capacity
50 Sets/ Month
Product Description
Features:
High precision bored and honed milling head.
Precision ground worktable.
Tilting and swiveling head .
Gear drive ,lower noise.
Specification:
| Technical spec. | ZAY7013V |
| Max. Drilling capacity | 13mm |
| Max face mill capacity | 16mm |
| Max end mill capacity | 30mm |
| Max. distance from spindle to table | 300mm |
| Working table size | 460x110mm |
| Swivel angle of headstock | +_45 degree |
| Spindle taper | MT3/R8 |
| Spindle speed | L:50-1100RPM;H:120-2500RPM |
| X-axis travel | 300mm |
| Y-axis travel | 130mm |
| Z-axis travel | 220mm |
| Motor power | 550W/brushless motor |
| N.W./G.W. | 65/85KGS |
| Packing size(LXWXH) | 570x550x850mm |
