Basic Style Spiral Wound Gasket V Shaped Metallic Pipe Flange Gasket

Product Details

Product Description

Product Description
Flange Standard:Name:Gasket Type:Standard:High Light:

ASME B16.5 / EN1514-2	Spiral Wound Gasket
R	ASME B16.20
Basic Spiral Wound Graphite Gasket, Spiral Pipe Flange Gasket, V Shaped Spiral Metallic Gasket

Basic Style Spiral Wound Gasket / Gasket Sheet Material / Pipe Flange Gasket
Spiral wound gasket is formed of V-shaped metallic strip and soft non-metallic filler by means of piled,
spiral wound gasket and connected its end and beginning by dot welded. Depend on its excellent compression
resilience, it is suitable for sealing sports where the alteration of temperature and pressure are frequent.
It can be used as the static sealing element of pipe, valve, pump, thermal exchange, condensing tower,
plain hole and man hole of flange, etc. It has been widely applied in the fields of petrochemical,
mechanical factory, power station, metallurgy, shipbuilding, medical and pharmaceutical unclear
power station and navigation, etc.
Dimensions for Spiral wound gasket per ASME B16.20 to suit ASME B16.5 flanges

Nominal Pipe size(NPs)	Class 150
	Inner Ring Inside Diameter(ID)		Winding Inside Diameter(ID)		Winding Outside Diameter(OD)		Guide Ring Outside Diameter(oD)
	lnches	mm	lnches	mm	lnches	mm	lnches	mm
1/4*	-		0.50	12.7	0.88	22.2	1.75	44.5
1/2	0.56	14.20	0.75	19.10	1.25	31.80	1.88	47.60
3/4	0.81	20.60	1.00	25.40	1.56	39.70	2.25	57.20
1	1.06	26.90	1.25	31.80	1.88	47.60	2.63	56.70
1 1/4	1.50	38.10	1.88	47.60	2.38	60.30	3.00	76.20
1 1/2	1.75	44.50	2.13	54.00	2.75	69.90	3.38	85.70
2	2.19	55.60	2.75	69.90	3.38	85.70	4.13	104.80
2 1/2	2.62	66.50	3.25	82.60	3.88	98.40	4.88	123.80
3	3.19	81.00	4.00	101.60	4.75	120.70	5.38	136.50
3 1/2*	3.50	88.90	4.50	114.30	5.25	1334.00	6.38	161.90
4	4.19	106.40	5.00	127.00	5.38	149.20	6.88	174.60
s	5.19	131.30	6.13	155.60	7.00	177.80	7.75	196.90
6	6.19	157.20	7.19	182.60	8.25	209.60	8.75	222.30
8	8.50	215.90	9.19	2334.00	10.38	263.50	11.00	279.40
10	10.56	268.20	11.31	287.30	12.50	317.50	13.38	339.70
12	12.50	317.50	13.38	339.70	14.75	374.70	16.13	409.60
14	13.75	349.30	14.63	371.50	16.0D	406.40	17.75	450.90
16	15.75	400.10	16.63	422.30	18.25	463.60	20.25	514.40
18	17.69	449.30	18.69	474.70	20.75	527.10	21.63	549.30
20	19.69	500.10	20.69	525.50	22.75	577.90	23.88	606.40
24	23.75	603.30	24.75	628.70	27.00	685.80	28.25	717.60

* not listed in ASME B16.20

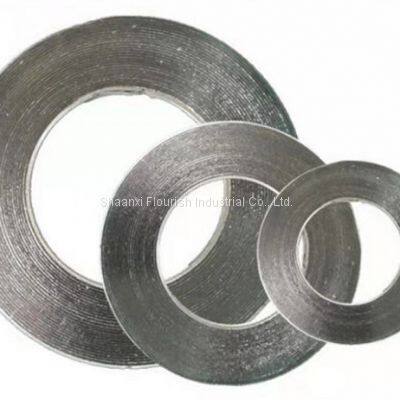

Basic construction style, inner and outer diameters are reinforced with several plies of metal without filler to give
greater stability and better compression characteristics.
Suitable for tongue and groove or male and female or grooved to flat face flange assemblies.
