Overhead Distribution/Transmission Line Aluminum Conductor Steel Reinforced Bare ACSR Conductor Power Cable

Product Description

Product DescriptionONE-STOP SOLUTIONS FOR WIRES&CABLES - HENAN UME CABLE CO., LTD
Over 30 years of Wires and Cables manufacture experience and Export to over 50 countries.
1. Applications

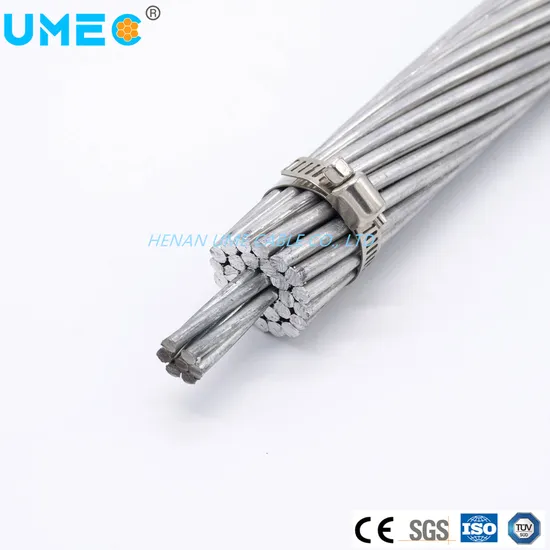

Aluminium conductor steel-reinforced cable (ACSR) is a type of high-capacity, high-strength stranded conductor typically used in overhead power lines. The outer strands are high-purity aluminium, chosen for its good conductivity, low weight, low cost, resistance to corrosion and decent mechanical stress resistance.
2. Standard
ASTM B232, BS215, CSA C49, DIN 48204, IEC 61089,GB/T1179-2008
Product Parameters

Code name	Area				Stranding and wire diameter		Approx. overall diameter	Weight			Nominal breaking load	Nominal DC resistance at 20 deg.
	Nominal	Alum.	Steel	Total	Alum.	Steel		Alum.	Steel	Total
	AWGorMCM	mm2	mm2	mm2	mm	mm	mm	kg/km	kg/km	kg/km	kN	Ohm/km
TURKEY	6	13.29	2.19	15.48	6/1.68	1/1.68	5.04	37	17	54	5.24	2.1586
SWAN	4	21.16	3.55	24.71	6/2.12	1/2.12	6.36	58	27	85	8.32	1.3557
SWANATE	4	21.16	5.35	26.51	7/1.96	1/2.61	6.53	58	42	100	10.53	1.3557
SPARROW	2	33.61	5.61	39.22	6/2.67	1/2.67	8.01	92	44	136	12.7	0.8535
SPARATE	2	33.61	8.52	42.13	7/2.47	1/3.30	8.24	92	67	159	16.11	0.8535
ROBIN	1	42.39	7.10	49.49	6/3.00	1/3.00	9.00	116	55	171	15.85	0.6767
RAVEN	1/0	53.48	8.90	62.38	6/3.37	1/3.37	10.11	147	69	216	19.32	0.5364
QUAIL	2/0	67.42	11.23	78.65	6/3.78	1/3.78	11.34	185	88	273	23.62	0.4255
PIGEON	3/0	85.03	14.19	99.22	6/4.25	1/4.25	12.75	233	110	343	29.41	0.3373
PENGUIN	4/0	107.23	17.87	125.10	6/4.77	1/4.77	14.31	294	139	433	37.06	0.2675
WAXWING	266.8	135.16	7.48	142.64	18/3.09	1/3.09	15.45	373	58	431	30.27	0.2133
PARTRIDGE	266.8	135.16	22.00	157.16	26/2.57	7/2.00	16.28	374	172	546	50.29	0.2143
OSTRICH	300	152.00	24.71	176.71	26/2.73	7/2.12	17.28	421	193	614	56.52	0.1906
MERLIN	336.4	170.45	9.48	179.93	18/3.47	1/3.47	17.35	470	74	544	38.23	0.1691
LINNET	336.4	170.45	27.81	198.26	26/2.89	7/2.25	18.31	472	217	689	62.71	0.1699
ORIOLE	336.4	170.45	39.81	210.26	30/2.69	7/2.69	18.83	473	311	784	77.27	0.1704
CHICKADEE	397.5	201.42	11.16	212.58	18/3.77	1/3.77	18.85	555	87	642	43.99	0.1431
BRANT	397.5	201.42	26.13	227.55	24/3.27	7/2.18	19.61	558	204	762	64.69	0.1438
IBIS	397.5	201.42	32.77	234.19	26/3.14	7/2.44	19.88	558	256	814	72.11	0.1438
LARK	397.5	201.42	46.97	248.39	30/2.92	7/2.92	20.44	560	367	927	88.69	0.1442
PELICAN	477	241.68	13.42	255.10	18/4.14	1/4.14	20.70	666	105	771	52.16	0.1193
FLICKER	477	241.68	31.29	272.97	24/3.58	7/2.39	21.49	670	245	915	76.66	0.1199
HAWK	477	241.68	39.42	281.10	26/3.44	7/2.67	21.79	670	308	978	86.65	0.1199
HEN	477	241.68	56.39	298.07	30/3.20	7/3.20	22.40	671	441	1112	105.34	0.1201
OSPREY	556.5	282.00	15.68	297.68	18/4.47	1/4.47	22.35	777	122	899	60.88	0.1022
PARAKEET	556.5	282.00	36.58	318.58	24/3.87	7/2.58	23.22	781	286	1067	88.22	0.1027
DOVE	556.5	282.00	45.94	327.94	26/3.72	7/2.89	23.55	781	359	1140	101.03	0.1027

TESTINGHENAN UME CABLE CO., LTD has a strict quality control policy in every step from the order to After-sales service!
Production:
Raw material inspection and testProduction process testUnqualified product controlRegular test and examinationFinished product inspection
CertificationsUME CABLE has completed several third-party product certifications to ensure our customers that all of the wire and cable purchased and installed in your projects, will fully and consistently meet all criteria of the required production and performance standards, also you are guaranteed we (as the manufacturer) and the products supplied are both valid and continuously monitored by those globally recognized quality verification system listed as below: ISO9001, ISO14001, ISO45001, CE, SGS, TUV.
Packaging & Shipping
Customer Visit
Company ProfileUME CABLE is one of the leading companies in the production and distribution of cables and wires in China. As a manufacturer, we have been supplied quality products to more than 50 countries. Our mission is to offer our customers best quality cable and wire products with most competitive price, to extend and zoom the business success of our partners, to make power reach where it is needed, to optimize the running utility grids, and ultimately, to power the world. Our version is to be the most customer-centric cable and wire company with our solid technology, enthusiastic services and robust products.
UME Cable was founded in 1994, located in Zhengzhou Gongyi Huiguo Town, occupies total area of more than 200,000 square meters, with building area 20,000 square meters. The real capital assets more than more than USD 6 million , with total 230 staff members, 35 of which are professional and technical experts. The land of our factory and employees numbers might not be top scale of industry, but our highly automatic facilities and elite employees are the best of industry will guarantee you a high yield rate achieved by strict cost and quality control, this is why we could quote better quality with most competitive price within market.
FAQQ1: Are you a manufacturer?
Yes, we are the manufacturer.
Q2: What are your main products?
Our products range as follows:
1. Electrical wire/PVC Building Wires.
2. PVC/XLPE insulated Power Cables up to 110kv.
3. Overhead Aerial Bundle Cable/ABC Cables.
4. Bare Conductors, like AAC, AAAC, ACSR, ACAR, ASCR/AW, and so on.
5. Steel wire/strand-like EHS, GSW and ACS(Aluminum Clad Steel), CCS(Copper Clad Steel).
6. Rubber Cables, Mining Cables, Welding Cable, and Control Cables.
7. Concentric Cables with Copper/Aluminum/Aluminum Alloy 8000s' Conductor.
Q3: Do you provide samples? Is it free or extra?
Yes, we could offer the samples for free
Q4: Is the quality of your products guaranteed?
We have passed ISO9001, ISO14001, ISO45001, and all our products have CE certificates.
Q5: Which markets do you involve mainly in?
Our products have been exported mainly to Africa, the Middle East, Southeast Asia, South America, Central America, North America, Europe, Australia, etc.
Q6: What is your payment term?
T/T or L/C
Q7: What about the delivery time?
Generally, it is 3-7days if the goods are in stock. Or it is 7-30days if the goods are not in stock, it is according to quantity.
