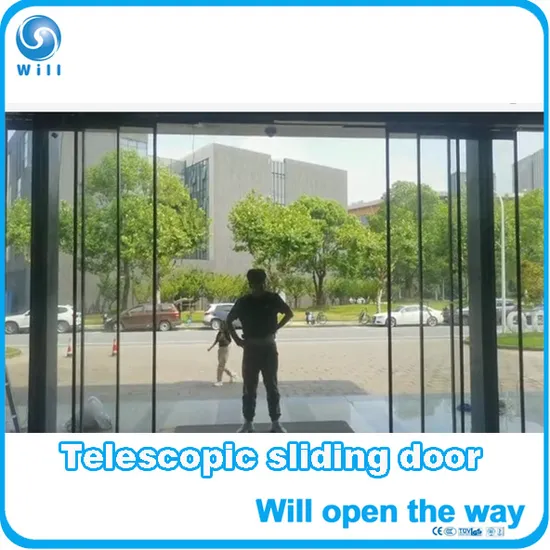

200W Heavy Duty Telescopic Sliding Door Operator

Product Description

8 wings 6 move wings telescopic sliding doorAutomatic Door Operator Sliding Door Operator with Brush Motor automatic door with Dunker Motor record telescopic sliding doors


Feature 1..Function 95% similar as KABA and works with original KABA
2.Brush Motor or Dunker Motor 99.5W ,powerful enough to bear 2X160KG gates.
3.Easy install since the Drive system has been installed before leavine the factory
4.Germany Dunkermotor,CE approved
5.Three Levels programe,the User can adjust the open width(20-90%),Open direction and etc

Standard Configuration
1.Minidrive Unit 2.Transformer 3.Motor 4.Decoder 5.Basic control module 6.Track 7.Carrier 8.Return Pully
9.Service cover holder
10.End stop
11.Door bracket
12.Belt connection
13.Belt tensioning device

Opetional Parts
Motion Sensor
Lock latch
Battery
Beam safety photocell
Specification
ES200 Easy Weight of gate Single/Bi-part1X200KG/2X120KG Width of gate Single/Bi-part900-6100MM Master Controller32 digital microprocessor Brush motor/Dunker motor99.5W 60VDC 2A IP50 Opening speed300-700mm/s Closeing speed300-650mm/s Max open strength150N Hold Open Time/Lock0-10S/30s Height of the rail8CM Deepth of the rail16CM Power SupplyAC110V-250V 50/60HZ Temp15 C to +70 C Power Consumptionaround 100W Protection degree of ElectronicIP23 Function Key switch Off
Automatic
Permanent Open
Partial
Exit only
Program Switch
Adjust all the parameters
Error showing
--------------------------------------------------------------------------------------------------------------------------------------------
Additional
Low noise desigh (<40db)
One million times of tests passed
Warranty: 18months Emergency Functions
Emergency opening in case of power failure / Fail-safe
Obstacle detection with automatic return mechanism
Self monitoring light barriers
Slow speed search for obstruction
