Medical Hospital TCI Syringe Pump Portable Automatic Infusion Pump

Product Description

Product Description

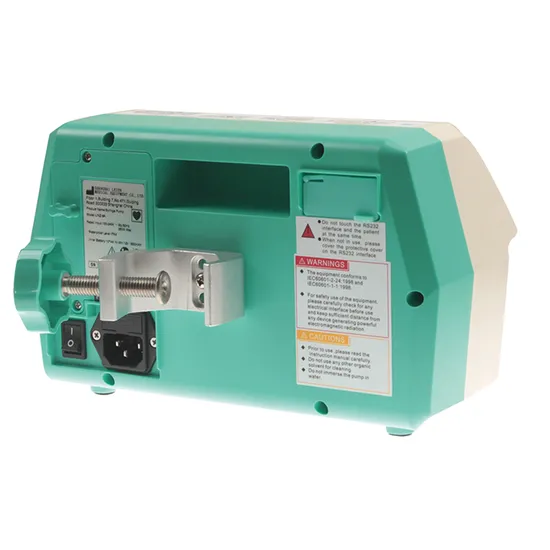

Medical Equipment HSP-8A Portable Syringe Pump
Features
1. Our syringe pump could use all brands through calibration (default setting is Terumo).
2. Auto-recognize the syringe size: 10, 20, 30, 50ml.
3. Wide flow rate range from 0.1-1600ml/h.
4. Available for adjust alarm volume (3 levels), occlusion pressure (3 levels).
5. Power Switching Function:When AC power is disconnected, automatically switch into battery power supply and give indication. When the AC power is connected, automatically switch into AC power working.
6. Repeat Alarm Function: If the alarm real reason is not be resolved within 1 minutes after press "SILENCE" button, it will give alarm again to remind to resolve the problem.
7. Battery Protection Alarm: For protect battery and safety infusion, the battery power will be displayed as different levels in sound and light from nearly finish to exhausted.
8. Double confirmation function when flow rate≥300ml/h, make safer and avoid misoperation.
9. The data can be cleared, make safer.
10. Lock the control panel during infusion, make safer.
11 For avoid misoperation, press "POWER" for 3 seconds to close the pump.
12. Real display the battery power in panel.
13. Different alarm light display in red and yellow color base different priority level.
14. RS232 port, able to connect with the computer.
15. KVO (Keep Vein Open) function. After finish setting infusion amount, for prevent to form thrombus, keep to infusion at the lowest rate 0.1ml/h.
16. Bolus (Quick Infuse) function.
17. Purge (Evacuate Bubble) function.
18. The bright & large LCD screen, easy look
19. The battery can be used continuously for 6 hours after full charged.
20. The chip in syringe pump is be processed by ourselves on SMT machine production line instead of by manual work, as weld every point by hand.
21. CPU control, stable function, high reliability.
Technical specifications

Infusion Flow Selection	0.1ml/h~1600ml/h, original value is 0.1ml/h
Bolus rate	Syringe 50ml:1600ml/h Syringe 30ml:900 ml/h Syringe 20ml:600 ml/h Syringe 10ml:400 ml/h
Infusion Range	0.1ml~9999.9ml, original value is 0.1ml
Flow Rate Precision	±3%
Occlusion Pressure	High:110kPa±20kPa (825mmHg±150 mmHg) Middle:80kPa±30kPa (600mmHg±225mmHg) Low:60kPa±20kPa (450mmHg±150 mmHg)
The biggest output pressure	< 975mmHg(130kPa)
Waterproof Level	IPX4
Electric Shock Protection	Class I, Type CF
Alarm	Occlusion, nearly finish, finish, standby (no operation) low battery, battery exhausted etc.
Function	Transfusion amount display, flow rate display, infused volume display

Special Functions
KVO (Keep Vein Open)
After finish setting infusion amount, for prevent to form thrombus, keep to infusion at the lowest rate 0.1ml/h.
Power Switching Function
When AC power is disconnected, automatically switch into battery power supply and give indication. When the AC power is connected, automatically switch into AC power working.
Repeat Alarm Function
If the alarm real reason is not be resolved within 2 minutes after press "SILENCE" button, it will give alarm again to remind to resolve the problem.
Data Memory Function
Able to save the latest setting alarm volume level, brand, occlusion pressure. level for use next time. Able to save for five years.
Battery Protection Alarm
For protect battery and safety infusion, the battery power will be displayed as different levels in sound and light from nearly finish to exhausted
Move alarm
When try to move or take the syringe away, it will give alarm.
