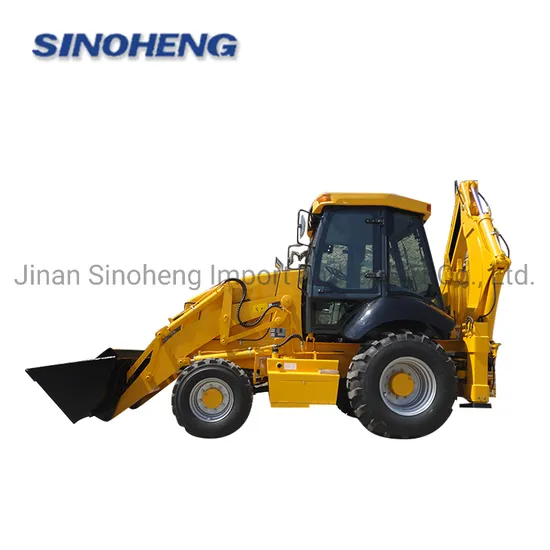

China Loaders Factory Top Quality 2.5ton Backhoe Loaders Xt878
Basic Info.
Model NO.
XT878
Type
Backhoe Loader
Usage
Special Excavator
Bucket
Shovel
Transmission
Hydraulic Transmission
Drive Type
Internal Combustion Drive
Bucket Capacity
1.0~1.5m³
Size
Medium-Sized
Certification
CE, ISO9001: 2000
Condition
New
Product Name
Backhoe Loaders
Drive Model
4X4
Operating Weight
8200kg
Loading Capacity
2500kg
Engine
Yuchai Engine or Cummins Engine
Rated Power
75kw (100HP )
Backhoe Capacity
0.3m3
Rated Loader of Axle
8/18.5t
Bucket Dumping Height
2742mm
Digging Depth
52mm
Max. Pulling Force
39kn
Min. Turning Radius
6581mm
Displacement
3.9L
Tyre
14-17.5/19.5L-24
Drive Speed
28km/H
Transport Package
Nude Package, Container Shipping
Specification
5920× 2250× 3770mm
Trademark
SINOHENG
Origin
China
Production Capacity
500pieces / Month
Product Description
China loaders factory top quality 2.5Ton backhoe loaders XT878The backhoe loaders are applied for varias industrial areas, it with shovel and backhoe , also can used for agriculture work. Our backhoe loaders addopts CAT technology develop and customized manufacture the backhoe loaders according to customer's special demands.
SINOHENG XT878 Bachoe Loader Technology Specification:
| The Main Performance Parameter of Backhoe Loader XT878 | |||
| Overall Operating Weight | 8200KG | Final Reducer | Single Stage Final Reducer |
| Transport Dimension | Rated Loader of Axle | 8/18.5t | |
| L*W*H mm | 5920×2250×3770 | Transmission System | |
| Wheel base | 2200mm | Torque Converter | |
| Min. Ground Clearance | 300mm | Model | YJ280 |
| Bucket Capacity | 1.0m3 | Type | Single-stage Three Elements |
| Breakout Force | 38KN | Max. Efficiency | 84.4% |
| Loading Lifting Capacity | 2500KG | Inlet Pressure | 0.5Mpa |
| Bucket Dumping Height | 2742mm | Outlet Pressure | 1.1Mpa-1.3 Mpa |
| Bucket Dumping Distance | 925mm | Cooling Method | Oil-cooling Pressure Circulation |
| Digging Depth | 52mm | Gearbox | |
| Backhoe Capacity | 0.3 m3 | Type | Fixed Shaft Power Transmission |
| Max. Digging Depth | 4082/4500mm | Oil Pressure of Clutch | 1373Kpa-1569 Kpa |
| Swing Angle of Excavator Grab | 190o | Gears | Two Gears Ahead, Two Gears Astern |
| Max. Pulling Force | 39KN | Max.Speed | 28Km/h |
| Engine | Tyre | ||
| Model | Cummnis 4BTA3.9-C100 | Model | 14-17.5/19.5L-24 |
| Type | In Line Direct injection Four-Stroke and Injection Combustion Chamber | Pressure of Front wheel | 0.55Mpa |
| Cylinder-Inside Diameter*Stroke | 4-102×120 | Pressure of Back Wheel | 0.223Mpa |
| Rated Power | 75KW (100HP ) | Brake System | |
| Rated Speed | 2400r/min | Service Brake | Air Over Oil Caliper Brake |
| Min. Fuel Consumption | ≤216g/km.h | External Type | |
| Max.Torque | ≥410N.M/1500r/min | Self-regulation | |
| Displacement | 3.9L | Self-balance | |
| Steering System | Emergency Brake | Operation Power Implementing brake | |
| Model of Steering Device | BZZ5-250 | Manual Operation Power Terminating Brake | |
| Steering Angle | ±36 o | Hydraulic System | |
| Min. turning radius | 6581mm | Digging Power of Excavator Grab | 46.5KN |
| Pressure of the system | 12Mpa | Digging Power of Dipper | 31KN |
| Axle | Bucket Lifting Time | 6.8S | |
| Manufacturer | Feicheng Axle Factory | Bucket Lowering Time | 3.1S |
| Main Transmission Type | Double Reduction | Bucket Discharge Time | 2.0S |
XT878 Backhoe Loader's details:
XT878 Backhoe Loaders Shipping:
We also have another model backhoe loaders WZ30-25, we also customized it according to customer's demadns. If you need it, pls you contact with us for quote.
If you have any needs on the loaders, backhoe loaders , pls you feel free to contact with us, thanks. Looking forward to your inquiry.
