Gdq5 Automatic Transfer Switch Changeover Switch 100A to 3200A ATS Manufacturer Factory Direct Sales

Product Description

Product Description

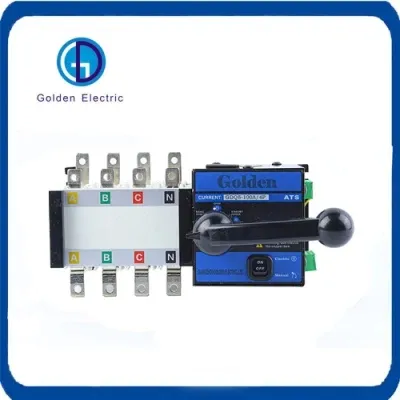

GDQ5 Dual Power Automatic Transfer Switch Series is a kind of new automatic transfer switch gathered switch and logic controller,achieve mechanic and electricity turn into a integral whole. It is suitable for using in the distribution equipment in industry and business with rated insulating voltage up to 690V, rated frequency 50Hz/60Hz, rated voltage 380V, conventional heating current up to 3200A ,supplying for switch automatically of Normal power and reserve power in power system or switch automatically and safety isolation of two sets load device etc. It can be used for hospital, shop, bank, high building, coal mine, telecommunication, iron mine, superhighway, airport, industrial flowing water line and installation etc.important situation where disallow power supply failure.The switch can achieve full-automatic, compulsory "0", remote control, urgent manual-operation;while have lack phase examination and protection, under/over voltage examination and protection, frequency examination and protection and delay regulation, electric mechanism interlock etc.

Product Details

Item	Specification	PCS/CTN	Item Size(CM)	Carton Size(CM)	K.W.(KG)	N.W.(KG)
GDQ5-100-4P	16-100A	6	25*15*14	38*30*36	25	24
GDQ5-160-4P	125-160A	4	45*36.5*48	45*36.5*48	25.2	24.2
GDQ5-250-4P	180-250A	2	46.3*44.2*29.5	46.3*44.2*29.5	19.25	18.25
GDQ5-400-4P	315-400A	1	50.5*30.5*33	50.5*30.5*33	17.85	16.85
GDQ5-630-4P	500-630A	1	50.5*30.5*33	50.5*30.5*33	18.75	17.75
GDQ5-1000-4P	800-1000A	1	71*40*37	71*40*37	46.5	44.5
GDQ5-1250-4P	1250A	1	71*40*37	71*40*37	50	48
GDQ5-1600-4P	1600A	1	71*40*37	71*40*37	55	53
GDQ5-2000-4P	2000A	1	71*50*60	71*50*60	91	89
GDQ5-2500-4P	2500A	1	71*50*60	71*50*60	101	99
GDQ5-3200-4P	3200A	1	71*50*60	71*50*60	111	102

Product Parameters

Frame Class		100									250					630					1600				3200
Rate current In(A)		16	20	25	32	40	50	63	80	100	125	160	200	225	250	315	350	400	500	630	800	1000	1250	1600	2000	2500	3200
Rated insulation voltage(Ui)		690V														800V
Rated concussion withstand voltage(Uimp)		8KV
Rated working voltage(Ue)		AC440V
Rated short-circuit connection capacity		8KA									17KA					26KA					67.5KA
Rated short-time withstand current(lcw)		5kA/30ms									10kA/60ms					12.6kA/60ms					32kA/60ms
Transfer time I-II or II-I		2.5s																			1.2s			1.8s			2.4s
Using category		AC-33iB
Control voltage		AC220V
Rated frequency	Start	20W									325W					355W					440W				600W
	Normal										62W					74W					98W				120W
Weight(kg) 4Pole		4.2									6.3		10			18			19		46.5		50	55	91	101	111

Packing

Recommand Product


Company Profile
- Golden Electric Co.,Ltd ,was foundad in 2007, we are professional for make AC and DC electric items such as cable gland, isolator switch ,Automatic Transfer Switch, fuse , Circuit breaker , distribution box , PV combiner box ,surge protector, Industrial plug and socket,Wind Turbine, Solar product and so on.
- Golden has been granted ISO9001 management system certifications. The comprehensive product line has more than 1000 models which have been approved by TUV,CE,CQC,SGS,ROHS,SASO. The productsells well to UK, Spain, Portugal, Singapore, Turkey, Russia, Korea, South Africa... more than 60 countries and regions.
- Golden is always striving hard to provide the best services and competitive price to all customers.
