V Type Bending Wire Mesh Fencing Machine with CE Certificate From China
Basic Info.
Model NO.
HLV2000 / HLV2500 / HLV3000
Voltage
380V
Style
Horizontal
Warranty
1 Year
Model: Hlv2000 / Hlv2500 / Hlv3000
Brand: Conet
Mesh Width: 2000-3000mm
Wire Diameter: 3-6mm
Finished Mesh: V Type Mesh Panel
Material:Low Carbon Steel Wire
Max. Welding Capacity: 6 + 6 mm
Max. Welding Speed: 0-80 Strokes/Min.
Transport Package
Standard Export Sea Packing
Specification
SGS
Trademark
CONET
Origin
China
Production Capacity
500 Sets/Year
Product Description

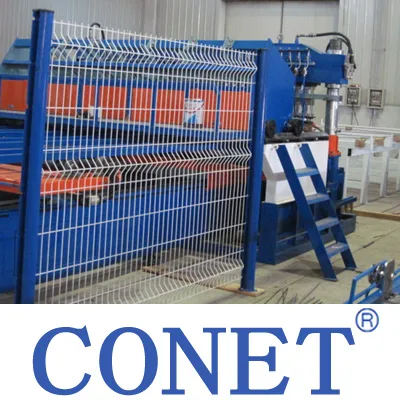

V Type Bending Wire Mesh Fencing Machine with CE Certificate from ChinaV Type Bending Wire Mesh Fencing Machine welds the line wires (pre-cut) and cross wires (pre-cut) to be mesh in the principle of multi-electrodes resistance welding. After mesh welding, the mesh automatically to be bent into V groove strengthening fence and stacked for package.
The material can be low carbon round or ribbed steel wire or galvanized wire.
The finised wire can be coil mesh or mesh panel.
Specification:
| Model | HLV2000 | HLV2500 | HLV3000 |
| Wire diameter | Φ3-6 [mm] | Φ3-6 [mm] | Φ3-6 [mm] |
| Mesh width | 600-2000 [mm] or 2 pcs 600-1000 [mm] | 600-2500 [mm] or 2 pcs 600-1200 [mm] | 600-3000 [mm] or 2 pcs 600-1500 [mm] |
| Max. Mesh length | 4000 [mm] | 4000 [mm] | 4000 [mm] |
| Line wire spacing | 50-200 [mm] stepless adjustable | 50-200 [mm] stepless adjustable | 50-200 [mm] stepless adjustable |
| Cross wire spacing | 50-200 [mm] stepless adjustable | 50-200 [mm] stepless adjustable | 50-200 [mm] stepless adjustable |
| Welding speed | 0-80 [strokes/min] (cross wire no°/min) | 0-80 [strokes/min] (cross wire no°/min) | 0-80 [strokes/min] (cross wire no°/min) |
| Power supply | 380V 50Hz 100-1000KVA | 380V 50Hz 100-1300KVA | 380V 50Hz 100-1500KVA |
| Total welding power | 1000 [KVA] | 1300 [KVA] | 1500 [KVA] |
| Power consumption | 2 -30 [kw/h] | 2 - 35 [kw/h] | 2 - 40 [kw/h] |
| Compressed air supply | 0.6MPa 3m3/min | 0.6MPa 4m3/min | 0.6MPa 5m3/min |
| Cooling water supply | 0.3MPa 1m3/min | 0.3MPa 1m3/min | 0.3MPa 1m3/min |
| Steel Wire ( Material) | Low carbon steel wire | Low carbon steel wire | Low carbon steel wire |
| Steel wire tensile strength | 350-550 [N/mm2] | 350-550 [N/mm2] | 350-550 [N/mm2] |
| Steel wire surface condition | Round or Ribbed steel wire or Galvanized wire | Round or Ribbed steel wire or Galvanized wire | Round or Ribbed steel wire or Galvanized wire |
| Steel wire wastage | No | No | No |
| Labor need | 2 | 2 | 2 |
| V groove bending machine max. depth | 100 [mm] | 100 [mm] | 100 [mm] |
| V groove bending machine max. pressure | 80 [tons] | 80 [tons] | 80 [tons] |
| Max. stacking height | 500 [mm] | 500 [mm] | 500 [mm] |
| Total weight | 18 [tons] | 19 [tons] | 20 [tons] |
