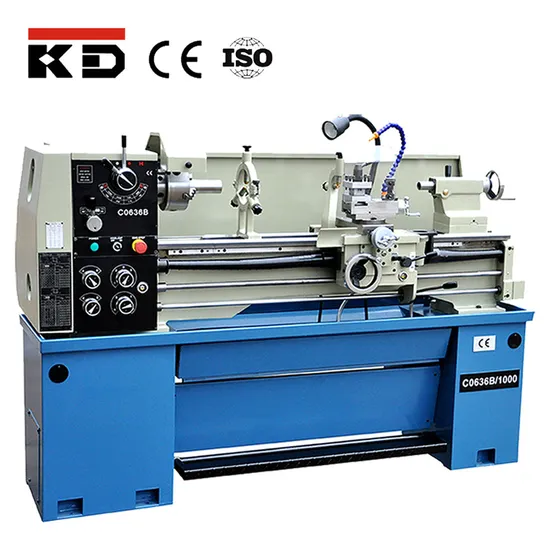

Conventional Gear Head Metal Cutting Lathe Machine

Conventional Gear Head Metal Cutting Lathe Machine

US$3,000.00-50,000.00 1 Set (MOQ)

Basic Info.

Model NO.
C0636B/1000
Guide Rail
Horizontal Guide Rail
Tool Holder
Single-tool Holder CNC Lathe
Power Source
Electric
Controlling Mode
Artificial
Automatic Grade
Manual
Setting Mode
Floor-type
Precision
Normal Precision
Certification
CE, ISO 9001
Condition
New
Spindle Bore
38mm
Swing Over Bed
330-360mm
Spindle Speed
70-2000r/Min
Dro
Optional
Qtc
Optional
Transport Package
Export Wooden Case(Heat Treated)
Specification
CE, ISO9001, SGS
Trademark
KD
Origin
Zhejiang China
HS Code
8458190000
Production Capacity
1200/Year

Product Description

Conventional Gear Head Metal Cutting Lathe Machine Product Description
Product Specifications

MODELS
C0632B
 C0636B
CAPACITY
Max. swing over bed
330mm
 360mm
Max. swing over gap
476mm
 508mm
Max. swing over slide
185mm
 215mm
Width of bed
186mm
Max. length of workpiece (two centers)
750/1000mm
SPINDLE
Spindle nose
D4
Spindle bore
ะค38mm
Taper bore of spindle
M.T.NO.5
Steps of spindle speed
8
Range of spindle speed
70~2000rpm
FEED
Range of longitudinal feeds
0.0013-0.0173in/r (0.026~0.348mm/r)
Range of cross feeds
0.0005-0.00598in/r (0.007~0.094mm/r)
THREADING
Inch threads
40~2 1/4 T.P.I/20 kinds
Metric threads
0.45-10mm/ 28kinds
TAILSTOCK
Travel of tailstock quill
95mm
Taper bore of tailstock quill
M.T.NO.3
OTHERS
Main motor
2HP(1.5KW)
Net weight/Gross weight(1000mm)
495/595kg
 510/610kg
