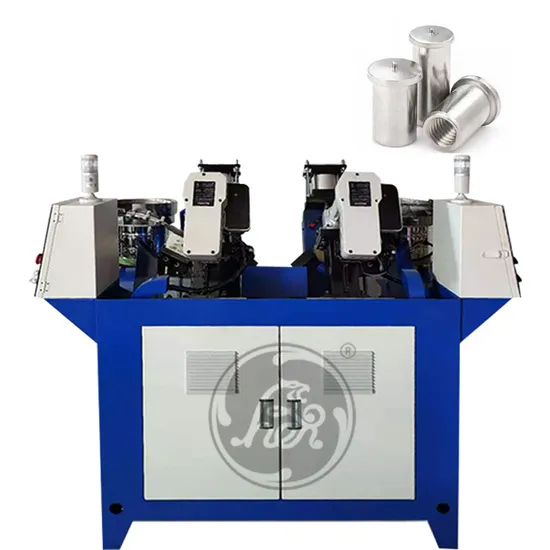

Single Head Reciprocating M18 M20 M22 M24 Countersunk Head Rivet Nut 27b Tapping Machine

Product Description

Technical specification
Two Spindle Two Vibration Tapping Machine

Specification	Nut Max.Out Side Diameter	Speed (pcs/min)	Main Motor (HP)	Oil Capacity	Size W*L*H(mm)	Weight (kg)
RNNT 11B M4~M8	18	50~80	2HP	250	900*1400*1450	660
RNNT 19B M10~M16	26	30~60	3HP	280	900*1400*1500	750
RNNT 38B M18~M30	50	25~40	5HP	360	1100*1260*1700	1300

Four Axis Two Vibration Tapping Machine

Specification	Nut Max.Out Side Diameter	Speed (pcs/min)	Main Motor (HP)	Oil Capacity	Size W*L*H(mm)	Weight (kg)
RNNT 11B M3~M6	16	360~320	1HP-4	120	1100*1300*1400	710
RNNT 11B M6~M10	19	260~200	2HP-4	120	1100*1300*1400	820
RNNT 19B M8~M12	22	240~180	3HP-4	150	1100*1300*1400	1060
RNNT 19B M8~M12	33	220~120	3HP-4	340	1650*1700*1670	1600
RNNT 32B M18~M22	44	130~80	5HP-4	620	1800*2050*1950	2300

Reciprocating Tapping Machine

Specification	Clamping Way	MAX. Length (mm)	Speed (pcs/min)	Main Motor (HP)	Auto Feeder (mm)	Oil Capacity	Size W*L*H (mm)	Weight (kg)
RNNT 11B M3~M8	Air Pressure	40	30-60	2-1HP	2-300	150	1000*1400*1500-1 1350*1700*1500-2	610 1060
RNNT 19B M8~M16	Air Oil Pressure	60	20-50	2-2HP	2-360	150	1150*1400*1500-1 1350*1700*1600-2	700 1120
RNNT 38B M18~M24	Air Oil Pressure	60	10-30	2-3HP	2-450	200	1200*1500*1650-1 1400*1900*1750-2	850 1500

Factory Introduction
Ronen Wuhe is one special manufacture for producing Nut Tapping Machine (Fastener Nut) in China. Have Taiwan Technology level engineers team, and with strict technical monitoring and production process, the plant area is 15000 square meter
Nut tapping Machine produced by Ronen Wuhe is suitable for auto parts, construction hardware, construction fasteners, machinery, electronics, etc. We have big share in domestic market, and In recent years.We have exported to Europe, USA, Korea, Russia, India, Indonesia,Vietnam etc.. At present, the largest model can reach WH-41B6S, sizes from M3~M22,
In addition, in the future, Ronen Wuhe also plans to gradually move in the direction of mold design, Tapping Machine design and technical consulting. "Manufacturing is like a service industry. After all, who can provide diversified services will have orders and market leadership.
Product Introduction
Two Spindle Two Vibration Tapping Machine
Four Axis Two Vibration Tapping Machine
Reciprocating Tapping Machine Nut tapping machine production of products
The nut tapping machine can do the nuts include standard parts and non-standard parts, such as: hexagon nuts, flange nuts, welding nuts, square nuts, T-nuts, rivets (hollow, semi-hollow) nuts, bushings, sleeves, four Claws nuts, nylon nuts, cap nuts, lock nuts, furniture nuts, automotive fasteners nuts, etc


Related products
Nut Making Machine Hot Forging Machine
Packaging
Certificate


FAQ
1. -Can your machinery produce non-standard parts?
-Yes, we can. Our machinery can produce non-standard parts, at the same time,we can also customize according to your parts drawings.
2. -Does your factory have customers in our country?
-We have rich experience in export. Europe, Asia, Africa, North America, South America, Oceania, all have our customers.
3. -Can you provide debugging video and samples?
-Sure. We will update the information (photos, videos, etc.) with you during and after debugging, and send samples. The shipment will be arranged only after you confirm it is correct.
4. -Can you arrange the delivery time according to the contract?
-Of course. We will deliver the goods to you as soon as possible on the basis of the contract. It will not affect your use.
5. -If it is beyond the warranty period, can we check the technical problems with you?
-Must will. What we provide is a lifetime service, no matter what time, what problem, we are willing to help you.
