Industrial Adhesive Products-Graphite Film for Improving The Performance of Consumer Electronics Products

Product Description

You can choose the length, width, and thickness of the product, as well as customize various shapes such as circular, square, bar, rounded rectangle, ellipse, trapezoid, rectangle, and irregular shape. We support CAD, PDF, or custom drawing. For many years, we have been committed to the double-sided tape and other material die-cutting industry. Long-term export to European and American markets.We can provide suitable suggestions for the use of tape and other foam products according to customer application needs. If you have any needs but do not know which material and size to use, please feel free to contact us and let us know your requirementsWe are happy to provide you with professional services and look forward to becoming your long-term partner in China!

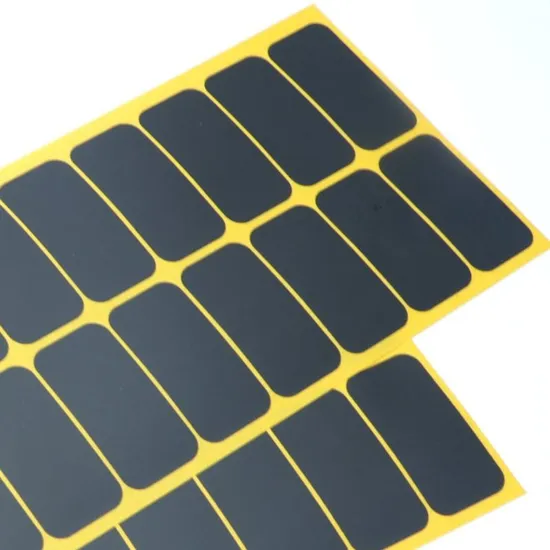

Product introduction dissipating artificial graphite sheet single sided tape High conductivity heat dissipating artificial graphite sheet single sided tape, is a synthetic graphite polymer. It has the characteristics of ultra-thin, light weight, high thermal conductivity, softness, and high temperature resistance. It has extremely high thermal conductivity to help release and diffuse the generated heat or heat sources such as CPU is an ideal material for providing heat dissipation solutions and is used in high-precision integrated electronic products. It can be die-cut to customize the shape and size, and the adhesive back film can meet different needs. Long-term export to European and American markets. We look forward to being your long-term partner in China.

2.Parameters (specifications)

Item order	project	Unit	Specification	Test standard
1	thickness	MM	0.07±0.01	ASTMD374
	colour	-	Dumb black	Visual inspection
2	Horizontal resistance	Ω	>1010	ASTM C611
	Vertical resistance	Ω	>1010	ASTM C611
3	Horizontal heat conduction	W/mk	1000	Angstrom's Method
	Vertical heat conduction		24	ASTM D5470
4	Flame retardant grade		94V-2	UL94
5	180° peeling force To SS	N/25mm	7	ASTM D3330,20Min
	To GLASS	N/25mm	6.5	ASTM D3330,20Min
	To PC	N/25mm	6.3	ASTM D3330,20Min
	Adhesive force 23 ºC * 1000g	Min	>3000	ASTM D3654
	80ºC*500g	Min	>3000	ASTM D3654
	High temperature resistance short time/long time	ºC	130/80	NT-W1-Y6-11

Product features and applications
High conductivity heat dissipating artificial graphite sheet single sided tape, with high temperature resistance, electrical and thermal conductivity, lubricity, chemical stability, plasticity and thermal shock resistance, excellent product design flexibility, easy construction, flexible, compressible, and good structural strength , good bonding workmanship and is not easy to break or tear. It can provide covering (if insulation requirements) and non-covering, and it can also be edged. The applicable temperature range is 80-130°C. There is no gas and liquid permeability, the graphite layer is not aging and embrittlement, and it is suitable for most chemical media. The highly conductive heat dissipation artificial graphite sheet single-sided tape can be customized according to the special requirements of customers. Widely used in the production of heat exchangers, reaction tanks, condensers, combustion towers, absorption towers, coolers, heaters, filters, pump equipment. It is widely used in petrochemical industry, hydrometallurgy, acid-base production, synthetic fiber, papermaking and other industrial sectors, which can save a lot of metal materials. Broad applications, such as integrated circuits, high-power density electronic devices, computers, electronic instruments, LEDs, large-scale communication equipment and peripheral supporting equipment, tablet computers, smart terminals, high-power LCD applications, Thermal conductivity of photovoltaic power generation equipment and other specialty industry electronics in and around it. Composite reinforcement of electronic heat dissipation graphite sheet and back adhesive, PDP, LCD TV, set-top box, projector, handheld equipment, automotive electronics, LCD-TV/ODO, power conversion, power supply equipment and peripheral equipment. It has good market prospects in the fields of mobile phone, computer and electronic industries.Product details
High conductivity heat dissipating artificial graphite sheet single sided tape, commonly known as thermal thermal graphite film, thermal graphite film, graphite heat sink, thermal graphite film, graphite cooling film, thermal thermal film is a new type of thermal thermal thermal cooling material, with unique grain orientation, along Uniform heat conduction in the horizontal direction, the lamellar structure can be well adapted to any surface, shielding heat sources and components while improving the performance of consumer electronics. The product dissipates heat evenly while also providing thermal isolation in terms of thickness. The effect of heat conduction and heat dissipation is very obvious. Very high thermal conductivity: The in-plane thermal conductivity can be achieved 1800-1900w/(m.k) (2-4 times that of copper and 3-7 times that of aluminum). Flexibility: The surface can be easily made into laminates with metal, plastic, self-adhesive insulating layer or double-sided glue, which increases the design flexibility and can be made into adhesive products on one side of the back glue. Low thermal resistance: The thermal resistance is 40% lower than aluminum and 20% lower than copper. Lightweight: 30% lighter than aluminum of the same size and 80% lighter than copper. Ease of use: High-conductivity heat-dissipating artificial graphite sheet single-sided tape can be smoothly pasted on any flat and curved surfaces, and can be cut in any form according to customer needs. Low resistance: can be used for electromagnetic shielding. Easy to die-cut processing: Flexible graphite can be die-cut into different sizes, shapes and thicknesses, and it has both space-saving and light-weight conditions during commercial use. Can be compounded copper foil, aluminum foil and other materials, can be coated with glue for easy operation, laminated insulation, no aging problems, good flexibility, soft, flexible and foldable, light weight, high EMI shielding efficiency, in line with the EU Rohs Directive, meet the requirements of halogen-free and other harmful substances. At present, the product is widely used in smart electronic products (such as: mobile phone heat dissipation film, network players, routers, smart TV, LED, used in notebook computers, high-power LED lighting, flat panel displays, digital cameras, mobile phones and personal assistant devices.) Division I has taken the lead in realizing the supply of coil material of high conductivity and heat dissipation artificial graphite sheet single-sided tape, which can reach a coil length of 100 meters without interruption. Can meet the needs of the majority of users!

Product Qualification High conductivity heat dissipating artificial graphite sheet single sided tape is a kind of graphite made by artificial synthesis, which greatly changes the thermal conductivity of graphite, and is a super thermally conductive material. High-conductivity heat-dissipating artificial graphite sheet single-sided tape, from bottom to top, including double-sided tape, graphite heat dissipation film and protective adhesive tape. The double-sided adhesive tape includes the first resin base layer, the upper and lower surfaces of the first resin base layer are respectively provided with a first adhesive layer and a second adhesive layer, the outer surface of the second adhesive layer is provided with a release layer, and the protective adhesive tape includes the third adhesive layer from bottom to top. The second resin base layer, the ink printing layer, Transparent matte film, the fourth adhesive layer and the protective resin layer. Graphite carbon atoms are made into graphite heat sink through high-temperature thermal expansion. Using graphite's plasticity, High-quality thermal conduction and favorable properties such as lightness make graphite into thin sheets of stickers, Attaching it to the heat source allows it to effectively distribute the concentrated heat evenly, allowing the high heat of a single electronic product to spread the most, thereby effectively protecting the service life of the electronic product. It can not only block the contact between the original parts, but also play a certain anti-seismic effect.

6.Deliver,Shipping And Serving About packaging: Standard packing: Packed in plastic bag, then put into carton or according to your requirements. About shipment: 1. All orders are sent out within 1 to 2 weeks after the order is confirmed. 2. Can provide EMS, TNT, DHL, UPS, FEDEX transportation methods. 3. After the order is shipped, the tracking number will be sent to you by email.

FAQ Q1,Are you trading company or manufacturer? A1:We are a professional manufacturer with over 10 years of experience. Q2,Can we get free samples? A2:Of course, after negotiation of the details, we can send free samples, but the freight is paid by your side. When you place much more orders, you can get the related discount. Q3,Do you support OEM? A3:Yes.OEM is supported. We have die-cutting equipment that can provide you with desired product shapes, sample making, and mass production services. Q4,What's your delivery time? A4: Delivery time typically varies from 3 to 7 days, depending on size and quantity of order. When all the product details are clear, the exact delivery time can be updated.
