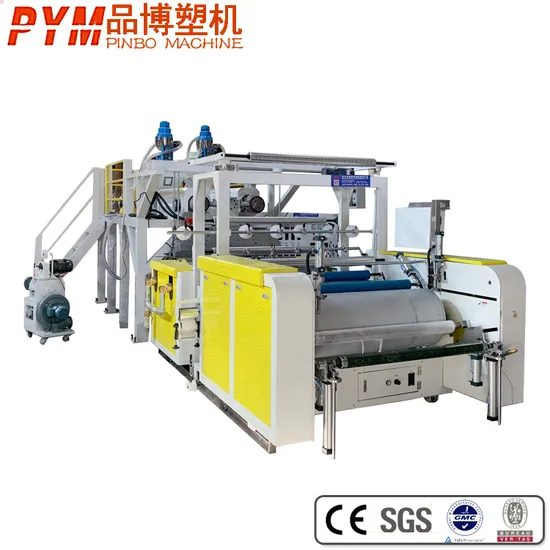

Double Layer Cast Stretch Film PE Cling Film Machine Extruder Plant Factory Price
| US$50,000.00 | 1 Set (MOQ) |
Basic Info.
Model NO.
PB-L55/75X1250
Type
Plastic Extruder
Plastic Processed
LDPE/CPE/TPE
Product Type
Stretch Film Machine
Feeding Mode
Multiple Feed
Assembly Structure
Separate Type Extruder
Screw
Twin-Screw
Exhaust
Don′t Exhaust
Automation
Automatic
Computerized
Computerized
Applied Material
LDPE, LLDPE, PVC, CPE, PEVA, CPP
Vlotage
Customized
Design Speed (Max)
150m/Min
Thickness
10-50 Micron
Power(W)
75kw
Weight
8t
Screw L/D
30:1
Color
Can Be Customized
Inverter
Delta, Taiwan
Roll Exchange
by Auto Cut & Exchange
Film Width
1000mm / 500mmx2 Rollers
Package
Film Wrapping with Wooden Pallet
Transport Package
Standard Packing
Specification
7500*3000*3400mm
Trademark
PYM
Origin
Zhejiang Province Wenzhou City
HS Code
84778000
Production Capacity
200sets/Year
Packaging & Delivery
Package Size
750.00cm * 300.00cm * 340.00cm
Package Gross Weight
8000.000kg
Product Description
double layer cast stretch film pe cling film machine extruder plant factory priceProduct Specification
| Model No. | PB-55/75X1250 |
| Screw Diameter | 55/75mm |
| Screw L/D | 30:1 |
| Screw Speed | 50-150rpm |
| Layer Structure | AB/ABA |
| Film material | PE |
| Film Width | 1000mm/2*500mm |
| Film Thickness | 0.01-0.05mm |
| Electric power supply | Customized, Standard is 380V/50HZ/3P |
| Total Power | 75KW |
| Capacity | 80-150Kg/h |
| Total weight | 8T |
| Dimension | 7.5M*3M*3.4M |
Product Advantages Easy operating, long life, energy saving Stable and reasonable extrusion High quality T-die for excellent film evenness and stability Enhanced cooling system
(adopts 720 mm diameter primary cooling roller and 370 mm diameter secondary cooling roller) Advanced oscillation (swing) system Highest winding speed (up to 200m/min) among similar stretch film machines High production capacity: up to 350 kgs/h at film thickness 23 microns and 150 m/min
Optional System: vacuum pump Melting gear pump and PID controlling system Micro-computer temperature controller with touch screen for accuracy temperature control Automatic air shaft loading & off-loading to save man power Automatic screen changer with hydraulic station
Machine Details:
Extruder & T die
CONTROL BOX:
WASTE FILM CRUSHER:
