Made in China Safety Barrel Blow Molding Machine

Product Description

DESCRIPTION OF BLOW MOLDING MACHINE

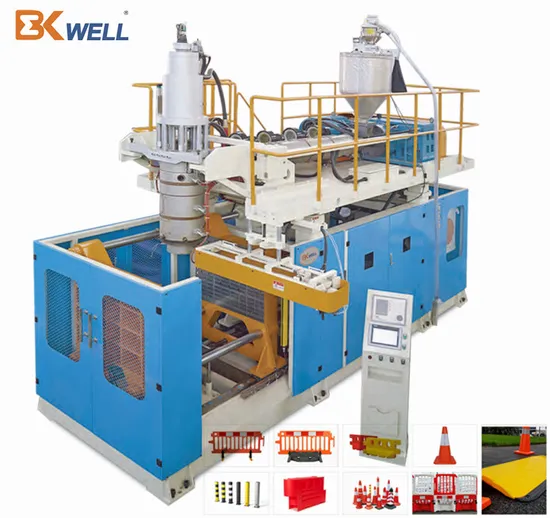

Bekwell PE plastic safety barrel/traffic divided blocks making blow molding machine(We can offer complete solutions:bottom sealing ,Online labeling machine,Take out robot,conveyor,Online leak detector, especially high speed blow molding machine use the lowest tempreture technical).
Product Overview:
performace & advantages:
1.Suitable for producing different kinds of safety barrel,traffic
divided blocks.
2.Optional bottom sealing,product eject,core-pulling movement
elements.
3.Adopt high output extrusion system,accumulating die head.
4.Optional Hydraulic Servo control system.
Technical parameters of machine:

Model	Unit	BM160	BM230
Max product volume	L	160	230
Dry cycle	PC/h	300	280
Die head structure	ACCUMULATING TYPE
Main screw diameter	Mm	100	120
Max plasticizing capacity (PE)	Kg/h	240	350
Driving motor	Kw	90	132
Oil pump motor power	Kw	22	22
Clamping force	Kn	800	900
Space between platen	Mm	500-1400	800-1800
Platen size W*H	Mm	1120*1200	1320*1600
Max. mold size	Mm	900*1450	1320*1800
Heating power of die head	Kw	30	36
Machine dimension L*W*H	M	7*3.5*4	8.2*3.5*5.5
Machine weight	T	20	36
Total power	Kw	172	230

Different kind of Control system of machine
Parison wall thickness control system
1. human-machine interface
Human-machine interface control panel screen has such functions as follows: visual display providing the best support to easily set, search, change and store the parameters, the controlling system has self-diagnosis functions, the malfunctions can be displayed on the screen.
2. B&R Austria human-machine interface and parison programmer,
can adjust within 300 points.
3. Parison control system uses MOOG 100 points parison programmer, and it uses specially designed separate hydraulic power package to control the movement of cylinder, so it has high precision.
Extrution & Die head:
1.The extruder uses screw and barrel, which is a famous brand "jinhailuo" all over the world. It has advantages such as high output, smooth plasticization, wearable and long life. The gear box is the kind of product specially used for plastic extrusion.
2.Bekwell& Jwell supply stable & different kinds of single layer /multi-layer continuous / accumulating type die head. Fit for the customer's special requirement for the different high molecular material and different number of layer.
Blowpin system:
1.Up-blowing unit(Used for JWZ-BM Continuous type Blow Molding Machine)
2.Bottom-blowing unit(Used for JWZ-BM Accumulating type Blow Molding Machine)
Output system:
1.Take out robot
2.Scrapping collect together, convey,crusher into one unit
Hydrulic system:
1.Hydraulic controlling system uses servo-controlled technology to control the movements of actuators, and all the elements used in hydraulic system are famous brands, it has advantages as follows: quick response and high energy-efficiency.
2.optional hydraulic could sace about 50% energy
Open&Closing system:
1.Common three platen and three tie bar struction
Toggle struction
2.Lubrication system
lubrication system:
This auto-lubrication system can lubricate the system with a set cycle automatically.

Electric system:
1.SIEMENS CPU unit
2.SIEMENS temperature-control unit
3.SIEMENS digital-output unit
4.SIEMENS analog-output unit
5.MITSUBISHI CPU unit
6.JWELL invertor revolving speed-control
7.Schneider electric components
