1.5-12oz Disposable Paper Cup Machine

Product Description

Machine Description

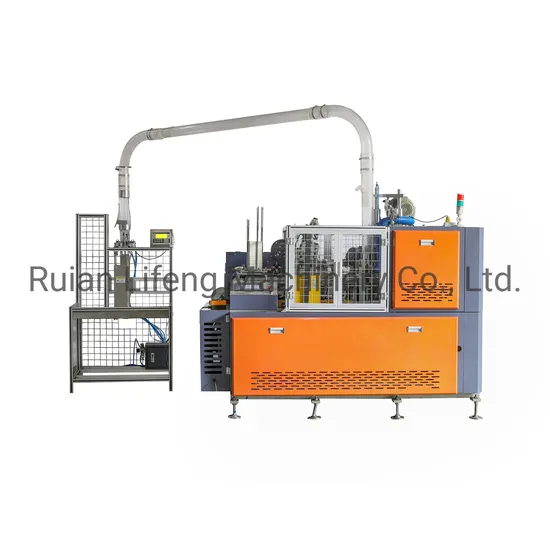

LF-90 MID-speed paper cup forming machine is a multi station high-speed automatic machine producing both single and double PE coated drink cups, ice cream cups through continuous process of automatic paper feeding, sealing, oil injection, bottom cutting, heating, knurling, curling and stacking. The machine adopting hot air system, PLC control, servo motor driving, full-automatic failure warning, counting, detection, stopping, etc.
Advantages
1)Machine Main part uses the Geneva open cam, instead of old dividing box transmission, makes driving more accurate, faster, and more reliable stability
2)Machine bottom is made by CNC machining, shaped in one-piece, the thickness is more than others' and heavier. It can improve the precision for each part, also help to stable the open cam long time running. The table also to be one piece, and completely closed design to make sure material can't go to driving system
3)The sliding block is imported from Taiwan, instead of the old linear bearing design, this block has a long lifetime, and high precision.
4)The bottom paper feeding is adopted Two channel sending system, first use stepper motor transport, second adopt stepper motor precision feeding, to ensure accuracy and avoid waste. For old design, will have high waste also will produce much scraps of paper during production.
5)Bottom heaters we add the Hot air heating system, to form cup bottom at a short time and high quality.
6)This machine has automatic lubrication system, ensure the machine to keep long time running stably. The design of the oil pipe, can lubricate each point more accurately. We also add filter screen to keep the lifetime of oil core. Also this machine has oil pump and two valves, one valve for controlling the oil quantity, one is convenient to change oil.
7)Imported electrical parts and PLC controlling, easy operation on touch screen, makes machine more intelligent.
8)Machine we use aluminum material for mold, which is more hardness and better for corrosion-resistant. It will get machine longer life time.
Mail technical parameters

GENERAL POWER	10kw
PAPER REQUEST	150-350g/ M^2 (BOTH SINGLE PE & DOUBLE PE COATED PAPER)
POWER SUPPLY	220V50Hz/ 380V50Hz OR CUSTOMIZED
CUP SIZE	1.5-12OZ (40-350ML)
SPEED	80-100PCS/MIN
WEIGHT	2300kgs
DIMENSION	2300*1400*1700mm
CUP SIDE SEALING	Ultrasonic sealing

MAIN PART LIST:

Motor	Main motor	ZHIBAO MOTOR
	Knurling/ curling motor
Configuration	guide rail	Taiwan HIWIN
	Straight line bearing	JAPAN NSK
	, cutting mold and knurling	Cr12MoV Quenching
	open cam	20CrMoTi Carburizing and quenching
	gear	20CrMoTi Carburizing and quenching
	bearing	JAPAN NSK
	Turnplate	Aluminium alloy 5A02
Electric elements	TOUCH SCREEN	DELTA
	PLC	DELTA
	ULTRASONIC	EVERGREEN Ultrasonic
	encoder	OMRON
	inverter	DELTA
	Contactor (switch )	SCH NEIDER
	Sensor	PANASONIC(JAPAN)

AFTER SERVICE
1. Warranty: 1 year
2. The guide booklet will be sent with machine to guide the installation
Process works, adjust the whole machine, production, avoide or solve th problem which the buyer will face.
3. We will adjust the machine well for one week before the delivery, ensure the machine has the perfect performance.
4. We can dispatch technologists to buyer's factory, guiding installation, ajustment for a period, the buyer incharge of the salary, traffic fee, boarding and lodging, communication and each day 100USD living allowances.
5. We supply the free training of buyer, the training won't stop until the buyer control the whole leson! The cost of air ticket, boarding and lodging should provided by buyer.
6. We supply the consumable spare parts for free for one year use.
