Various Diameters Extruded Acrylic Pipes Optical Transparent Grade Plastic Acrylic Round Tubes

Product Description

Product Description

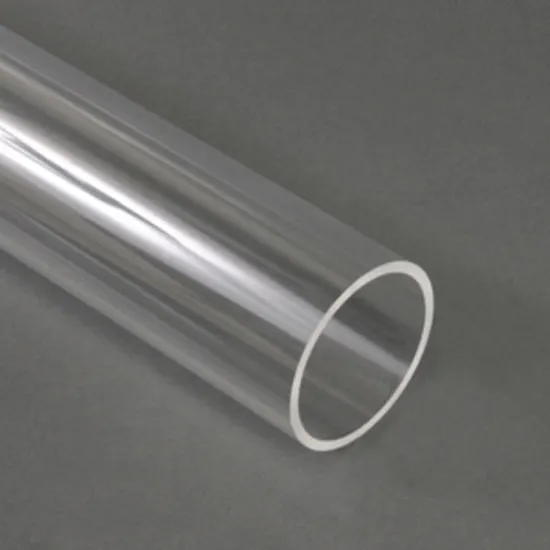

Shenghang Plastic acrylic tube is available in a wide range of diameters, thicknesses, and lengths that can be cut to size. More impact resistant than and half the weight of glass, extruded acrylic tubes are a strong, economical replacement option for glass. It also offers greater flexibility and shatter resistance compared to glass, making acrylic a better choice where safety is a concern.
Shenghang Plastic Extruded Acrylic Tube is lightweight, strong, and highly transparent. It is extremely versatile and is often used in arts and crafts, cake displays, modeling, DIY projects, retail displays, aquariums, lighting and so much more.
Detailed Photos
Features
1. High transparency and smooth
2. Hi-tech equipment and technology
3. Stable and durable
4. Non-toxic
5. High impact resistance
6. High wear-resisting
7. High-temperature resistant
8. UV resistance
9. Chemical resistance
10. Stable color under outdoor exposure
11. Perfect surface finish
12. Wide variety of diameters & colors
1. Excellent transparency: The light transmittance can reach more than 92%, the light intensity needed is small, low carbon, and energy saving.
2. Lightweight: The density of the acrylic tube is 1.18g/cm3.The weight of the same size material is only half of that of ordinary glass and 43% of that of aluminum.
3. Good climate endurance: Strong adaptability under natural environment, it retains perfect performance, even if long time in the sunlight, wind, and rain shower.
4. Good acid and alkaline resistance: It will not turn yellow and hydrolyze due to the long-term sun and rain.
5. High impact resistance: The impact strength is 16 times that of ordinary glass, which is suitable for installation in the area where safety is particularly needed.
6. Excellent processability: Suitable for both mechanical processing and easy thermoforming.
7. Non-toxic: It's harmless for people, even if exposed for the long term, and does not produce poisonous gas combustion when burning.
8. Pretty appearance: The surface is mirror-like, with exquisite technology, no folds, and seams. A variety of colors bring a strong visual impact.
9. Excellent comprehensive performance: The comprehensive performance provides designers with multiple choices.
Specifications
Outer Diameter Mold Table for Extrusion Acrylic Tube

Φ5	Φ6	Φ7	Φ8	Φ9	Φ10	Φ11	Φ12
Φ13	Φ14	Φ15	Φ16	Φ17	Φ18	Φ19	Φ20
Φ20.3	Φ22	Φ25	Φ25.4	Φ26	Φ28	Φ30	Φ32
Φ35	Φ36	Φ38	Φ40	Φ45	Φ48	Φ50	Φ55
Φ60	Φ65	Φ70	Φ75	Φ80	Φ85	Φ90	Φ95
Φ100	Φ105	Φ110	Φ115	Φ120	Φ125	Φ130	Φ140
Φ150	Φ160	Φ170	Φ180	Φ190	Φ200	Φ210	Φ220
Φ230	Φ240	Φ250	Φ300	Φ350	Φ360	Φ400	Φ450

* The above size is the outside diameter of the existing mold in our factory, and a new mold needs to be opened in case of special specifications.
Specification Sheet for Tubes and Rods in Acrylic(PMMA) and Polycarbonate(PC)

ITEMS	Outside Diameter	Wall Thickness	Length	Color
	(mm)	(mm)	(mm)
Extruded Acrylic Tube	5mm~450mm	0.5mm~10mm	1000/2000/3000/customized	Clear/White/Customized
Cast Acrylic Tube	50mm~1800mm	4mm~100mm	1000/2000/3000/customized	Clear/White/Customized
Polycarbonate Tube	8mm~250mm	0.4mm~6mm	1000/2000/3000/customized	Clear/White/Customized
Acrylic Rod	5mm~300mm	/	1000/2000/3000/customized	Clear/White/Customized
Polycarbonate Rod	6mm~200mm	/	1000/2000/customized	Clear/White/Customized

PACKING AND SHIPPING
Product Display
Customization & Processing
Customized Processing Services
Shenghang Plastic Acrylic Tube has excellent dimensional stability, which is very suitable for deep processing. The processed products of Acrylic Tubes are widely used in the chemical industry, construction, decorations, scientific research, and many other industries.
Shenghang Plastic can provide professional customized acrylic tube, pipe, and cylinder processing services, including machining, carving, engraving, precision cutting, bending, welding, polishing, milling, drilling, trimming, thermoforming, silk screen printing, etc.
Welcome customers to provide drawings or samples, and negotiate custom processing business.
Applications
Commerce, Light industry, Construction, Chemical industry, Scientific research, Military-related industry, Machinery, Advertisement, Decoration, Lighting, Aquarium, Transportation, Industry, Hotel, Furniture, Lightbox, Craft gift, Teaching instrument, Environmental protection equipment, Down equipment, Medical equipment, Cosmetics display, Water treatment equipment, etc.
Company Profile
Anhui Shenghang Plastic Co., Ltd. was established in 2014, located in Tianchang City, Anhui Province, China. Shenghang Plastic is a high-tech enterprise, specializing in R&D, production and processing of polycarbonate sheet, acrylic sheet, polycarbonate pipe, and acrylic pipe. Shenghang Plastic has an excellent team focused on product development and design, quality control and inspection, and company operations. The company's experienced staff are always ready to discuss customer needs to ensure customer satisfaction. The company has established a modern quality management system in strict accordance with international standards, and passed the ISO9001 quality management system certification. Shenghang Plastic warmly welcomes domestic and foreign customers to establish mutually beneficial and win-win cooperation with us, and create a better future together.
