Jaw Crusher Price Quarry Rock Crushing Machine Clay Crusher Machine

Product Description

Product Description The Stone Crushing Plant mainly consists of Vibrating Feeder, Jaw Crusher, Cone Crusher or Impact Crusher, Vibrating Screen, Belt Conveyor and Control System, etc. It is completely capable to crush and screen limestone, marble, granite, basalt, river gravel and other hard stone materials, and produce sand & gravels with various granularities for construction and building industry. We are able to design and manufacture complete crusher plants with capacity from 30tph to 500tph, and to provide optimum and most economical solutions according to customers' requirements on stone specifications, output, application, etc.

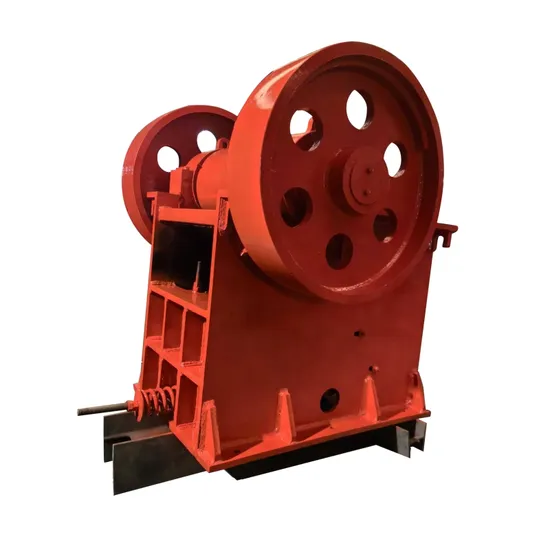

Jaw crusher is a kind of stone crushing machine which is widely used as primary or secondary crusher. Baichy manufactures coarse jaw crusher and fine jaw crusher in stationary type or mobile. Jaw crusher is widely used in various industries, such as mining, road and railway construction, building construction,water conservation and chemical industry etc. It could crush kinds of minerals and rocks with compression strength less than 320MPa, such as quartz, granite, basalt, limestone, river stone, sandstone, shale, iron ore, copper ore, gold ore etc.
Wide range of applications, suitable for more than 200kinds material
Jaw crusher machine main features
1. Model for the latest products, a wide range of applications, with a compact structure, long service life, and high work efficiency.
2. Adjustable for easy wear parts, Easy replacement of wear and spare parts.
3. High capacity, less costly and Easy to install.
4. The machine has a large crushing ratio, uniform product size, simple structure, convenient maintenance, can crush the compressive strength of a variety of materials is not more than 320 MPa, is the first choice for primary crushing equipment.
5. First-class technology, reliable pre-sale customer service quality. The products meet European CE certification standards.
Product Parameters

Model	Power	Efficiency	Fixed Plate	Movable Plate
KL-150x250	5.5-4kw	2-4 ton/h	18kg/8-serrated/ 250*350	21kg/9-serrated/ 250*420
KL-200*300	7.5-4kw	3-9 ton/h	36kg/8-serrated/ 300*470	36kg/9-serrated/ 300*515
KL-220*350	11-4kw	4-14 ton/h	48kg/10-serrated/ 350*510	52kg/11-serrated/ 350*570
KL-250*400	15-4kw	6-22 ton/h	82kg/11-serrated/ 400*640	88kg/12-serrated/ 400*720
KL-300*500	22-4kw	12-50 ton/h	116kg/14-serrated/ 500*745	139kg/15-serrated/ 500*800
KL-400*600	30-6kw	17-115 ton/h	175kg/12-serrated/ 600*820	195kg/13-serrated/ 600*1000
KL-500*750	55-6kw	30-120 ton/h	309kg/15-serrated/ 750*1200	349kg/16-serrated/ 750*1210
KL-600*900	75-6kw	60-190 ton/h	756kg/12-serrated/ 250*350	668kg/13-serrated/ 900*1400
KL-750*1060	110-6kw	80-260 ton/h	1089kg/10-serrated/ 1060*1770	1218kg/11-serrated/ 1060*1880
KL-150*750	15-4kw	8-25 ton/h	95kg/25-serrated/ 750*710	108kg/26-serrated/ 750*480
KL-250*750	22-6kw	13-35 ton/h	195kg/19-serrated/ 750*710	196kg/20-serrated/ 750*750
KL-250*1000	30-6kw	15-50 ton/h	235kg/26-serrated/ 1000*700	254kg/27-serrated/ 1000*780
KL-250*1200	37-6kw	16-60 ton/h	296kg/30-serrated/ 1200*700	326kg/31-serrated/ 1200*7800
KL-300*1300	55-6kw	25-80 ton/h	490kg/31-serrated/ 1300*8200	545kg/32-serrated/ 1300*9200
