WPC Profile Machine/Wood Plastic Profile Making Machine for Door and Window Frame/Window Door Machine

Product Description

WPC Plastic Profile Machine/PE/PP WPC Profile Machine/Window Door Machine/Wood Plastic Profile Machine

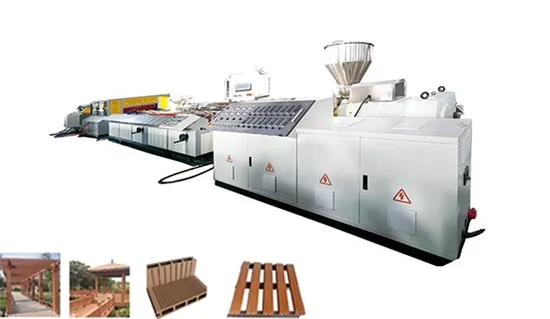

The PE WPC profile extrusion line is suitable for producing the hollow/solid PE WPC profiles. This profile has the advantages of fireproof, waterproof, anticaustic, moistureproof, mothproof, mildewproof and environmentally friendly. It is mainly used for extruding outdoor decorative WPC profiles, such as gardening 1and-scapes, outdoor landscapes, pallets etc.

Combining advanced Canadian technology and the domestic practical situation,our company developed the SJMS series WPC production line.WPC profile extrusion line adopts specially designed screw,barrel,mould and unique WPC craft and formula initiated by our company.The extruder can match with the auxiliary machines and mouls perfectly.The whole extrusion line is of automatic control from the loading to the final discharging.The machines can also be manually adjusted separately.

With the advantages of good plastication,low energy-consumption,high output,excellent performance,long endurance,etc.It can be equipped with relative auxiliary equipment,such as vacuum calibrating platform,haul off machine,cutting machine and material stacker.It is mainly used for extruding outdoor decorative WPC profiles,such as gardening landscapes,outdoor landscapes,palltes,etc.

	SJMS-51/105	SJMS-65/132	SJMS-65/132	SJMS-80/156
Max.Product Width	200mm	250mm	250mm	400mm
Extruder Capacity	100kg/h-120kg/h	150kg/h-180kg/h	150kg/h-180kg/h	350kg/h-380kg/h
Main Motor Power	22 kw	37 kw	37 kw	75 kw
Vacuum Pump Power	3 kw	5.5 kw	7.5 kw*5.5 kw	11 kw*7.5 kw
Calibrating Platfrom Length	4000mm	6000mm	8000mm	6000mm

The production flow for WPC project as follows:
1.Wood powder machinery(To get drying wood powder):Wood chipper/Wood powder making machine/Wood powder drying machine.
2.WPC mixer(To mix wood powder,plastic and other chemical additives. Get WPC powder)
3.WPC granulating machine(To make WPC powder to WPC pellets)
4.WPC profile making machine(To make different WPC profile by changing the mould).
5.Surface treatment machine(To make surface treatment on the profile).Embossing machine, sanding and brushing machine etc.
6.Recycled machine(To recycle bad products). Plastic crusher.
Company Information Qingdao Tongsan PLastic Machinery Co.,LTD
Qingdao Tongsan Plastic Machinery Co., LTD is a professional plastic extrusion machines manufacturer which stands by the Jiaozhou Bay. Converged with the national first-class scientific talests, our company is engaged in the study of new- type plastic machines and the conversion of international high-and -new technology. Cooperating with scientific research instifutions and institutions of higher education , we are converting the newest scientific payoffs at top speed. We will supply you the high-performance and high-tech plastic machines, Hollow sheet machine, Corrugated pipe machine, PVC and WPC foam board making machine.
Packaging & Shipping Fastening of fixed Steel Wire with plastic Film wound Wood Block

Our Services
We will provide the Feasibility Analysis Report for the wood plastic project. We will provide the model selection and technical parameter for wood-plastic machine. We will provide the design for the plant and electric powder accounting for the facilities. We will provide the design for wood plastic formula according to the product requirement. We will provide the technology of wood plastic product surface treatment. We will provide technique training for operator. We will provide solution for the practical problem during the production. We will install and test machine for free. We will provide turnkey project to customers. Contact me
We look forward to have the opportunity to work together with you in the future.
