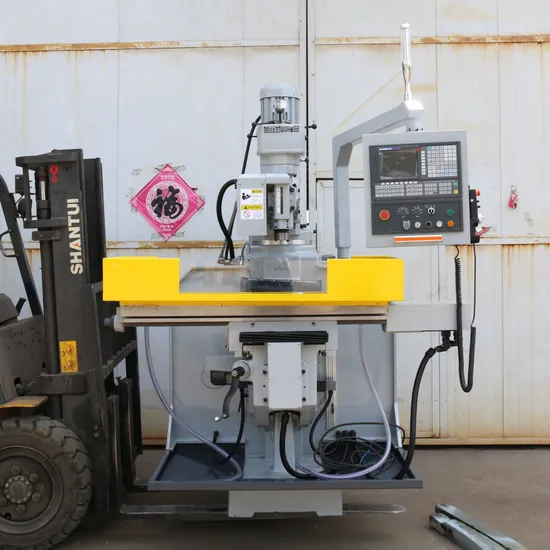

Universal knee type Turret CNC Drilling and Milling Machine for sale
Basic Info.
Model NO.
XK6325
Controlling Mode
Artificial
Number of Shaft
3
Hole Diameter
<50mm
Automatic Grade
Manual
Precision
High Precision
Certification
GS, CE, RoHS, ISO 9001
Condition
New
Table Size
1120X280mm254X1270 / 254X1370
Longitudinal Travel
850 / 950mm
Cross Travel
420 / 400mm
Vertical Travel
420mm
Spindle Taper
R8
Spindle Motor
2.25kw
Transport Package
Plywood Case
Specification
1550kg
Trademark
Luzhong Machine Tool
Origin
China
HS Code
8459590000
Production Capacity
50 Sets Per Month
Product Description
Universal knee type Turret CNC Drilling and Milling Machine for saleProduct Description
Product Parameters
Product main technical parameters:
| Specifications | unit | XK6325 |
| Table size | mm | 254x1270 / 254x1370 |
| Longitudinal travel | mm | 850 / 950 |
| Transverse travel | mm | 420 / 400 |
| Vertical travel | mm | 420 |
| T slot no. and size | mm | 3x16 |
| Ram travel | mm | 470 |
| Distance from spindle nose to table surface | mm | 0-405 |
| Spindle taper | standard: R8 | |
| Optionl:ISO30/ISO40 | ||
| Spindle travel | mm | 127 |
| Spindle speed | rpm | standard: (50HZ) 65-4500 |
| optional: (variable)65-4500 | ||
| Auto quill feed | mm/rev | 0.04/0.08/0.15 |
| Spindle motor | kw | 2.25 |
| Head swivel | 90° | |
| Head tilting | 45° | |
| Weight | kg | 1550 |
Company Information
FAQ
1:How can I choose the most suitable machines ?
A: Please tell me your specifications ,we can choose the best model for you , or you can choose the exact model .
You can also send us the products drawing ,we will choose the most suitable machines for you .
2: What's your main products of your company?
A: We specialized in all kinds of machines ,such as CNC Lathe Machine ,CNC Milling Machine ,Vertical Machining Center ,Lathe Machines ,Drilling Machine ,Radial Drilling Machine ,Sawing Machine ,Shaper machine and so on .
3: Where is our factory located? How can I visit there?
A : Our factory is located in Tengzhou City ,Shandong Province,277500 China. You are warmly welcomed to visit us.
4. What is your trade terms?
A : FOB, CFR and CIF all acceptable.
5: What's the Payment Terms ?
A : T/T ,30% initial payment when order ,70% balance payment before shipment ;
Irrevocable LC at sight .
5: What's the MOQ?
A: 1 set .(Only some low cost machines will be more than 1 set )
