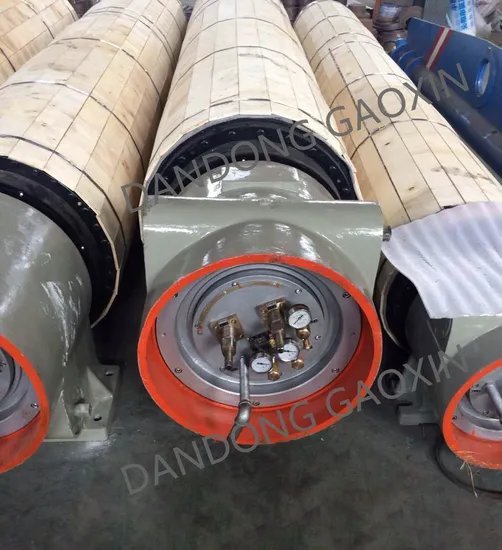

Suction Couch Roll for Paper Machine
| US$3,999.00-69,999.00 | 1 Piece (MOQ) |
Basic Info.
Model NO.
dia: 1200mm
Certification
ISO 9001:2008, CE, ASME/ Eac
Surface Treatment
Polishing
Manufacturing Process
Casting
Material
Stainless Steel
Diameter
1200mm
Face Length
up to 10000mm
Roll Material
Stainless Steel
Vacuum Box Body
Stainless Steel
Sealing System
with Pneumatic Tire and Sealing Strip
Coating
Rubber, 20mm Thickness
Transport Package
Standard Export Safety Wooden Package
Specification
dia: 1200mm
Trademark
GAOXIN
Origin
Dandong, China
HS Code
84399900
Production Capacity
300
Product Description
Roll material: stainless stell, 50mm shell thickness, double helix hole arrangement, hole diameter dia 4mmCoating: rubber, 20mm thickness, Shore "A" 97°± 2 hardness
Suction width:4750mm at max, 4500mm at min
