Made in China Mini Concrete Pump Mixer Machine Portable Trailer Mounted Diesel Engine Concrete Pump

Product Description

Product Description

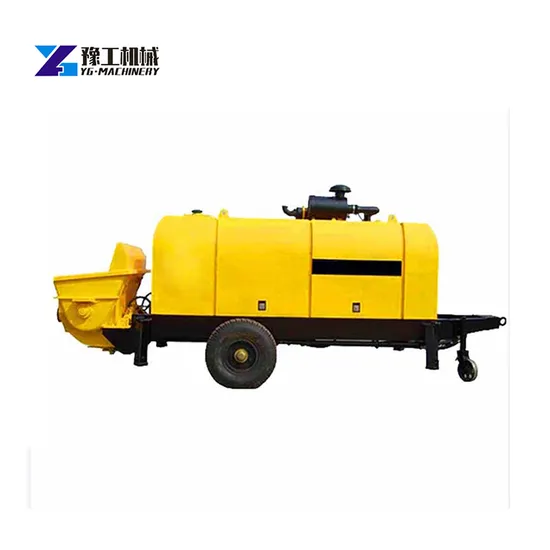

CONCRETE PUMP
Newly developed concrete pump can deliery concrete, mortar, cement, fireproof material, etc. It is suitable for fine stone concrete transportation to higher construction floor column pouring.
It is the smallest concrete pump in China, mainly for some special construction conditions or narrow sites, which is inconvenience in work or difficult to complete the construction schedule.

Detailed Photos
Product Parameters
1. Hydraulic system adopts independent three-loop control, high reliability glass plate and cutting ring are with hard alloy, wear resistance and long service life.
2. Pump mechanism uses a two-cylinder piston, with advanced performance and good continuity.
3. Electrical components such as contactors and push button switches are reliable in operation, simple in control circuit, and equipped with switches for easy operation.
4. The main seals are made of high-quality seals to prevent internal and external leakage of the hydraulic system.
Mini Concrete Pump

Model	YG-10
Voltage	380V three-phase 50Hz
Motor	11 kw
Max Flow	5-6 m3
Max Output Pressure	15 Mpa
Max Convey Distance	Horizontal 30-40 m
	Vertical 10-20 m
Max Partical Size	≤20 mm
Cylinder Diameter*Travel	φ110*360 mm
Pipe Diameter	φ80(65) mm
Hydraulic System	Full Hydraulic
Hydraulic Oil Cooling	Air-cooled
Dimensions	1750*700*1100 mm
Weight	650 kg
