Classifying Equipment Hydraulic MSW Particle Paper Recyclable Waste Density Separator

Product Description

Detailed Photos

High-pressure density separator separates material into higher density fraction and lower density fraction.When treating MSW,C&D waste and stale waste,it can always separate out the certain material by control of the air volume.High-pressure density separator is a necessary machine when producing RDF from MSW.
Working Principle

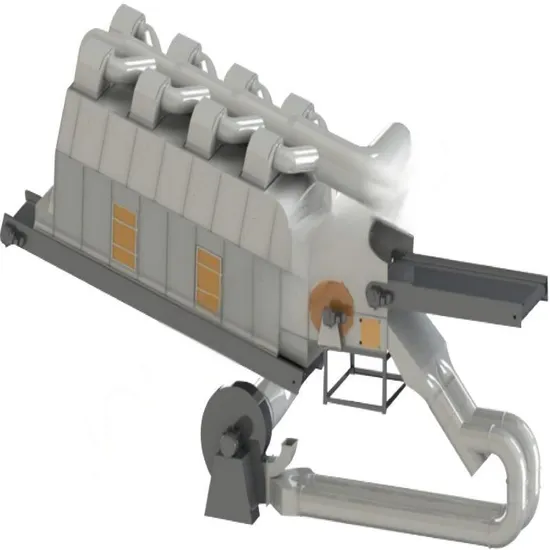

The high-pressure density separator is composed of a centrifugal fan, a separating unit with a rotating drum, a belt conveyor, and a connected settling chamber.According to the aerodynamic principle, the device uses air as the sorting medium to sort the MSW according to the density and the particle under the action of the airflow.The lighter materials (such as paper sheets, Plastic bags, films, etc.) are carried up or horizontally to a farther place, while heavy materials are dropped by the updraft that cannot support them.In this way,material is separated by different density.

Product Parameters
Features The charging conveyor is a high-speed belt conveyor to evenly distribute the materials on itself to enhance the separating effect. The air volume, wind speed and wind pressure at the fan outlet can be adjusted by the frequency converter. The settling chamber is made of 3mm galvanized steel plate, which has the effect of anti-corrosion and anti-pressure. The exhaust duct is equipped with an interface that can be connected to the deodorizing system.

Model	1FFX1600C
Size	13500*4765*8200mm
power	92.2Kw
Ambient temperature	-20ºC~45ºC
Voltage	380 v,50 Hz
Power control	Frequency converter
weight	10t
Input size	<300mm
Throughput capacity	About 25-30 t/hour

Company Profile
JONO was founded in 2006 and is located in Wujiang District, Suzhou. The company has a floor area of 25,000 square meters, more than 80 design researchers, more than 200 employees and more than 150 patents. It is a new landmark of Wujiang enterprise, also a national high-tech enterprise, has been rated as a waste sorting leader for four consecutive years by the industry association.


First stage plant covers and area of 27000 square meters, whose floor area is 34000 square meters and the overall investment is 100 million RMB. on March 18, 2015, the construction work was started. it is equipped with technology institute, science and technology demonstration hall, pilot test and industrial centeer, large-scale material test center, high- standard manufacturing factory.

Jono has a complete and professional group of teams of research and development design, project management, equipment manufacturing, electrical automation and solid waste recycling waste recycling operation. Each team can be either independent to provide customers with services such aselectrical automation, equipment manufacturing, technology development and other professional services, or jointly provide customers in MSW sorting or recycling industry with complete solutions and whole plant EPC project general contracting services.

Factory and Workshop Pictures

Sucessful Projects
By 2018, JONO has undertaken more than 80+ EPC Projects, which are distributed in more than 40 cities . Our equipment is capable of handling more than 50,000 tons of waste every day.Through persistence and accumulation, we have the proprietary knowledge of total solutions in eight segments, including Municipal Solid Waste (MSW), organic waste, decoration waste, construction waste, recyclables, bulky waste, industrial waste and landfill waste.

Jono Projects All Over the World
6 Key Technology

Artificial Intelligence Sorting	Biological Treatment
Mechanical Shredding	Conveying&Storage
Mechanical Sorting	Mobile Solutioins

7 Solutions

Municipal Solid Waste	Landwill Waste
Organic Waste	Construction Waste
Recyclables	Bulky Waste
Industrial Waste	Decoration Waste

Certifications


Partners and Clinets

Lindner, Austria. Lindner was frormed in 1948. As a specialist in shredding technology in Europe, it is also one of the famous waste shredder manufacturers.

BRT-Harter, Germany. It is the leading company in the field of Mechanical sorting. The sales of Bag-opener takes 60% of the European market share. The sales of ballistic screen is over 500 sets globally, the machines provided by BRT-Hartner are used in more than 1000 countries.

MVT, Italy Founded in 1968, it is a market leader in the bio-drying, compost and in the design, construction and installation of air suction and purification systems which remove dust, fumes, vapours and Volatile Organic Compounds. Now globally over 50 projects have been sucessfully completed.

FAQ
YOU MIGHT INSTERESTED IN FOLLOWING QUESTIONS
1. Are you manufacturer or trading company?
We are a professional recycling machines manufacturer for more than 15years we supplying full technical support and solutions, timely and professional service, always effort on quality, honest, win-win business for every client.
2. How do you assistant to install the machine on worksite?
We are experienced on more than 80 projects, engineer and technicians will assistant client on construction, installation, commissioning.
3. How can I get spare parts for replacement in other countries?
Wearing parts like blades, it is necessary to buy with machine, other parts in stock could be delivery out by express if urgent or by sea within 5days.
4. Can I use mark machine with different LOGO and color?
Yes, please confirm details with sales.

If you have any need ,pls feel free to contact us.
