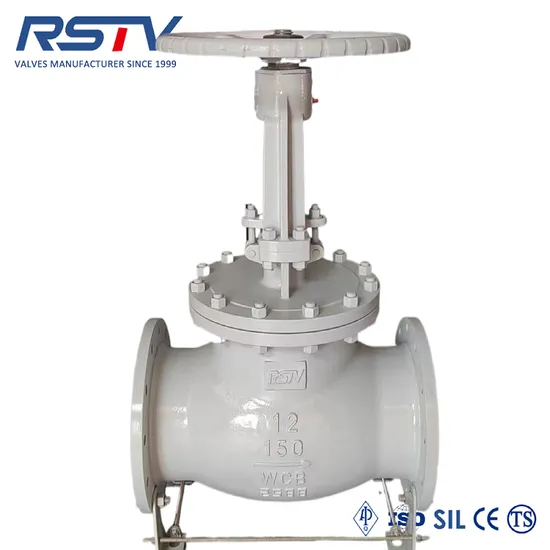

ANSI Cast Steel Globe Valve, Flange End RF/Rtj, 150lb/300lb/600lb/900lb, CF8/Wcb

Product Description

Product Description Factory Directly Sale API Standard Cast Steel Globe Valve, Flange End Introducing our top-of-the-line Factory Directly Sale Cast Steel Globe Valve with Flange End. This industrial valve is designed for optimal performance in various applications, offering a reliable and efficient solution for controlling flow within pipelines. With a pressure rating of 150lb-2500LB and a durable stainless steel construction, this globe valve is built to withstand high pressure and temperature environments.
Our API-certified Globe Valve is available in many material such as WCB,WCC,LCC,LCB,CF8,CF8M etc, providing versatility and corrosion resistance. The flanged end design ensures easy installation and maintenance, making it a preferred choice for industrial settings.
Trust in the quality and durability of our Cast Steel Globe Valve, designed to meet the demanding requirements of modern industries. Purchase your Cast Steel Globe Valve today and experience the superior performance and longevity it offers.
Applicable standards:
1:Design and manufacture standard:BS1873;ASME B 16.34;API 602
2:Face to face dimension standard:ASME B16.10
3:Flange ends standard(RF/RTJ):ASME B16.5
4:Butt weld ends standard:ANSI B16.25
5:Inspect and test standard:API 598
6:Others:As manufacturer or as client request
Features:
1:Full port/standard port;FP,SP
2:Outside screw and yoke;inside screw and yoke;OS&Y;IS&Y
3:Bolted bonnet,BB;threaded cover;Self seals
4:Tapered plug type disc
5:Rising stem;non-rising stem
6:Overall valve seat;replaceable seat
7:Hard faced 13CR%,STL etc
8:T-body;S-body
9:Others:NACE standard is workable;OEM/ODM;
Support customization.

Product Parameters Technical specification:

Nominal pressure	150lb (2.0MPa)	300lb (5.0MPa)	600lb (10.0MPa)	900lb (15.0MPa)	Test Medium
ShellTest	3.0MPa	7.8	15	22.5	WATER
Seal Test	2.2MPa	5.6	11	16.5	WATER
Back seal	2.2MPa	5.6	11	16.5	WATER
Air seal	0.6MPa	0.6	0.6	0.6	AIR
Suitable Temperature:-196-550ºC;-320.8-1022ºF
Suitable Media:water,oil,gas,some corrosive environment

Product Name:Globe valve
1:Material	Cast Steel ASTM A216 WCB,CS,LCC,LCB,WCC,WC6,WC9; Cast stainless steel A351 CF8,CF8M; SS304,SS316, SCS13,SCS14,SS201,Duplex 2205,2207; Forged steel A105; F304;F316; Trim:13Cr%,STL,No.1,NO.2...NO.5...NO.8...NO.12
2:Size	1/2"-48"(DN15-DN1200)accordingly
3:Port	Full port/standard port
4:Class	150lb-2500lb,PN16-PN420,JIS 5K-20K
5:Ends	Flange end RF/RTJ/FF;Screw end BSPT,BSPP,G,NPT; Butt welded;Socket welded
6:Operate	Manual,Worm gear,Pneumatic or electric actuator
7:Delivery	1-120Days( depend on the detail item and quantity)
8:Package	Standard exporting plywood case
9:Sea port	Ningbo;Shanghai;Tianjin;Shenzhou,China
10:MOQ	No limited
11:Shipping terms:EXW,FOB,CFR,CIF;by sea,by air,by courier
12:Payment terms:T/T,DP,LC at sight
13:H.S code:8481804090
14:Certificates:ISO,CE,TS,API 6D,API 600,API 607
15:Country of Origin:China

Detailed Photos


Certifications
Packaging & Shipping

Company Profile RST Valve Group CO., Ltd was founded in Wenzhou City with more than 20 years of experience in producing different
kinds of industrial valves,including Ball Valve, Gate Valve, Check Valve, Globe Valve, Y Strainer, etc.
It is a high-tech comprehensive valve enterprise with design, research and development, casting ,manufacturing, sales
and service.
RST VALVE owns more than 100 employees. In our production line, we have CNC machining equipment, grinding machines,
assembly machines, welding torches, hydraulic / air testing equipment at our workshop. The annual production capability of the
factory can reach 6000 tons. RST Valve is an ISO, CE and TS certified manufacturer with much experience of exporting
RST Valve keeps continuous innovation and owns a strong technical force, excellent equipment, complete testing system, and
strict management system. Inspection includes raw material inspection, dimensional inspection, processing inspection,
chemical testing, physical testing, pressure testing, etc, which guarantee the quality of finished products.
RST VALVE can offer different kinds of industrial valves, including Ball Valve, Gate Valve, Check Valve, Globe Valve, Y Strainer, etc.
Our products are performed in accordance with national standards of API , ANSI, DIN, JIS, BS and GB and so on.
Our various products are widely used in petrochemical industry, petroleum refining, nuclear power, chemical industry, metallurgy as well
as mining, medical industry, food industry, national defense, urban construction and many other fields. Moreover,
RST Valve accepts Valve OEM, ODM inquiry from customers.
Our Advantages
FAQ Question 1: What's the material of our valves? Are they safe?
Answer: Our valves are made of materials such as WCB, CF8, CF8M, CF3, CF3M, SS201, SS304, SS316, SS304L, SS316L, A105, SS317L, SS2205, WCC, LCB, LCC, WC6, WC9, Bronze, etc.
Question 2: What is the MOQ of our products?
Answer: There are no limits, and it depends on the items.
Question 3: What is the warranty of our products?
Answer: Usually, there is a 12-month warranty when clients receive our products. We offer repair or replacement for quality issues.
Question 4: How are our products packaged?
Answer: For screw end valves: plastic bag + small carton box + plywood box. For flange end valves: plastic bag + plywood box.
Question 5: What are the payment options?
Answer: We accept T/T, LC, Alipay, and Wechat pay. Payment terms are 30% prepayment, 70% balance before shipping or against copy of BL.
Question 6: Can you manufacture valves according to different standards?
Answer: Yes, we can manufacture API, DIN, GOST, JIS standards based on different pressure, temperature, and size requirements.
If you have more questions about our products, feel free to contact us. We are here to assist you.
What we sell:API/JIS/BS/DIN/GB standard ball valve,gate valve,globe valve,check valve,butterfly valve,strainer etc...for details contact Susan Ji.
