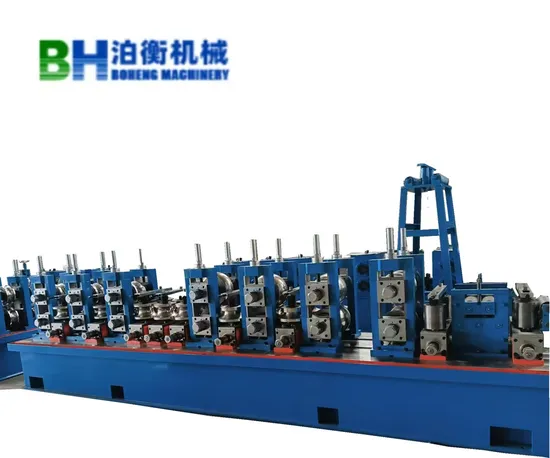

High Frequency ERW Tube Mill Line/Tube Machine

Product Description

Product Parameters

Model	Tube O.D (mm)	Thickness (mm)	Square&Rectangle (mm)	Thickness (mm)	Speed (m/min)
HG16	φ6~16	0.2~0.8			30~120
HG20	φ7~20	0.2~1.0			30~120
HG25	φ9~25.4	0.25~1.2			30~120
HG32	φ10~32	0.25~1.5	8X8~25X25	0.25~1.2	30~120
HG32		0.3~2.0	10X6~30X20	0.3~1.5	30~100
HG40	φ12.7~40	0.3~1.8	10X10~30X30 20X10~40X20	0.3~1.5	30~110
HG40		0.4~2.0		0.4~1.5	30~100
HG50	φ16~50.8	0.4~1.5	12.7X12.7~40X40 20X10~50X25	0.4~1.2	30~110
HG50		0.5~2.0		0.5~1.5	30~90
HG50		0.6~2.5		0.6~2.0	30~80
HG63	φ19.05~63.5	0.6~2.0	15X15~50X50 20X10~60X30	0.6~1.5	30~90
HG63		0.7~3.0		0.7~2.5	30~80
HG63		0.8~4.0		0.8~3.0	20~70
HG76	φ25.4~76.2	0.8~2.5	20X20~60X60 30X15~80X40	0.8~2.0	30~90
HG76		0.8~3.5		0.8~3.0	30~80
HG76		0.8~4.0		0.8~3.5	20~70
HG95	φ30~90	0.8~3.0	25X25~70X70 30X20~80X40	0.8~2.5	30~90
HG95		0.8~3.5		0.8~3.0	30~80
HG95		0.8~4.0		0.8~3.5	20~70
HG102	φ31.8~101.6	1.0~3.0	25X25~80X80 30X20~100X50	1.0~2.5	30~90
HG102		1.0~3.75		1.0~3.0	30~80
HG102		1.0~4.25		1.0~3.5	20~70
HG114	φ35~114.3	1.0~3.0	30X30~90X90 40X20~120X60	1.0~2.5	30~80
HG114		1.2~4.25		1.2~4.0	20~70
HG127	φ40~127	1.2~3.5	30X30~100X100 40X20~120X80	1.2~3.0	20~70
HG127		1.5~5.0		1.5~4.5	15~60
HG140	φ50~141.3	1.2~4.0	40X40~110X100 50X30~150X70	1.2~3.5	15~60
HG140		1.5~5.5		1.5~5.0	15~60
HG168	φ60~168.3	1.5~5.0	50X50~130X130 60X40~160X80	1.5~4.5	15~50
HG168		2.0~6.0		2.0~5.5	15~50
HG168	φ76.2~168.3	2.5~8.0	60X60~130X130 80X40~160X80	2.5~7.0	10~40
HG219	φ89~219.1	2.0~6.0	70X70~160X160 100X50~200X100	2.0~5.5	10~40
HG219		3.0~8.0		3.0~7.5	10~40
HG219		4.0~10.0		4.0~9.0	10~40
HG273	φ114.3~273	4.0~10.0	90X90~200X200 120X60~260X130	4.0~9.0	10~40
HG273		4.5~12.0		4.5~11.0	10~35

Detailed Photos
Certifications

Company Profile
Company Introduction

Botou Boheng Metallurgical Equipment Manufacturing Co., Ltd. specializes in high-frequency welded pipe equipment, slitting lines, open cold-bending profile steel, and stainless steel equipment, leveraging advanced Japanese technology. Our machines, built to strict Japanese standards, feature state-of-the-art configurations, consistent quality, and exceptional performance, earning widespread acclaim internationally.
With a team of skilled technicians and professional sales staff, we have captured a major share of the domestic market and successfully exported to Thailand, Myanmar, Kazakhstan, Uzbekistan, and beyond, receiving high praise from customers worldwide.
Our core focus is on quality machines and comprehensive after-sales service, ensuring customer satisfaction throughout the sales process. Guided by principles of honesty, innovation, and mutual success, we are committed to providing reliable, efficient equipment that exceeds customer expectations.
We look forward to sincere collaboration, working together to achieve shared success.
FAQ
Q:Are you manufacturer?
A:Yes,we are manufacturer.We have our own technical team.Welcome to visit us .
Q: How does your factory do regarding quality control?
A :There is no tolerance regarding quality control. Quality control complies with ISO 9001.every machine has to past testing running before it's packed for shipment.
Q: Can you make the machine according to my design or prototype?
A: Yes, we have an experienced team for working out the most suitable design and production plan for the machine that you are going to book with us.
After Sales Service
Q:I'm worried about after-sales service!
A:Warranty is one year.
