Haiqintop New (HQ40) with Kubotaengine Crawler Excavators
| US$14,999.00-16,999.00 | 1 Piece (MOQ) |
Basic Info.
Model NO.
HQ40
Type
Crawler Excavator
Usage
Garden and Farm Using
Bucket
Grab Shovel
Transmission
Hydraulic Transmission
Drive Type
Internal Combustion Drive
Bucket Capacity
0.1~0.5m³
Size
Medium-Sized
Certification
CE, ISO9001: 2000, SGS
Condition
New
Engine
Japan Kubotaengine
Emission
Euro 5 or EPA 4
Machine Weight
4000kg
Digging Depth
3208mm
Digging Height
4800mm
Loading
4 or 5 Units in a Hq40 Container
Steering Pump
USA Brand
Transport Package
Container
Specification
4915mm*1720mm*2525mm
Trademark
HAIQIN-TOP
Origin
Shandong, China
HS Code
84295212
Production Capacity
50000 Units / Year
Packaging & Delivery
Package Size
450.00cm * 150.00cm * 250.00cm
Package Gross Weight
4500.000kg
Product Description

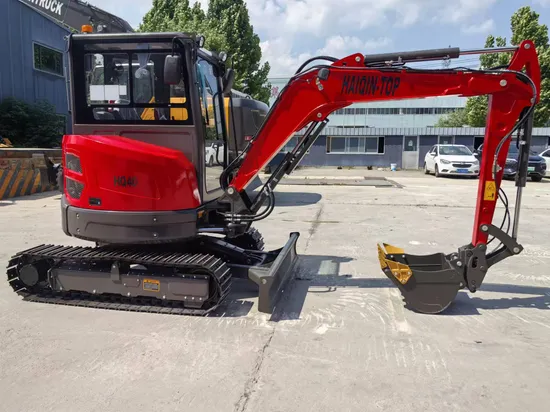

HaiqinTop Brand 4.0ton (HQ40) with CE, KubotaEngine 4ton Tailless excavator1, 4.0 Ton new tailless crawler excavators HQ40 specifications :
| ENGINE | |
| Emission Standard | Euro 5,EPA4 |
| Make /Model | KUBOTA-ENGINE /D1703 |
| Power /Rotation speed | 18.5kw(25HP)@2200rpm |
| Number of cylinder | 3 |
| Type | In-line,water cooled, 4-stroke ,mechanical pump, normally aspirated |
| Max.torque | 97.4N.m/1500rpm |
| Displacement | 1.647L |
| TRACK DRIVING SYSTEM | |
| Maximum Travel speed(High/low) | 4.4/2.4km/h |
| Width of steel track shoe | 300mm |
| Carrier roller(Each side) | 1 |
| Supporting roller(Each side) | 4 |
| PERFORMANCE PARAMETER | |
| Standard Bucket capacity | 0.12m³ |
| Swing speed | 9rpm |
| Maximum Grade ability | 58% |
| Ground pressure | 32Kpa |
| Maximum Bucket digging force | 30.4KN |
| Maximum Arm digging force | 18.2KN |
| Hydraulic system pressure | 22.5Mpa |
| Machine weight | 3950kg |
| Boom length | 2535mm |
| Arm length | 1400mm |
| Fuel tank capacity | 42L |
| Hydraulic oil tank capacity | 48.5L |
| Engine oil capacity | 7L |
| MACHINE SIZE | |
| Overall dimension (L*W*H) | 4915mm*1720mm*2525mm |
| Axle base(Track length on ground) | 1670mm |
| Length of rubber track | 2154mm |
| Track gauge | 1420mm |
| Minimum Ground clearance | 295mm |
| Swing radius at tail | 860mm |
| Swing radius at front | 2538mm |
| Height of blade | 350mm |
| WORKING RANGE | |
| Maximum Digging height | 4800mm |
| Maximum Dumping height | 3406mm |
| Maximum Digging depth | 3208mm |
| Maximum Vertical digging depth | 2957mm |
| Maximum Digging distance | 5480mm |
| Maximum digging distance (on ground) | 5359mm |
| Minimum swing radius | 2530mm |
| Max.height when min.swing radius | 3655mm |
| Maximum Lifting height of blade | 365mm |
| Maximum Cutting depth of blade | 385mm |
| Boom swing angle(Left/Right) | 55°/65° |
Engine :Japan kubota-Engine
Digging height :4800mm
2, Details photos of H40 4.0ton Crawler excavators
3, Production introduction Of Excavators
4, Different attachments of excavators :
5, Professional Loading and Packing of Small cralwer Excavator
6, Certificate OF HaiqinTop machinery .
7, MORE PRODUCT CATEGORIES OF HAIQIN-TOP MACHINERY
8, Warranty and Service.
HAIQIN-Top Machine has One Year Warranty.
During Warranty, if there is any part broken because of quality problem (except
easy-damaged parts), send us detailed pictures and video, then we will send good/ new parts for your replacements.
Choose HAIQIN-Top , and then better after-service will be guaranteed.
Contact us right now for more information! Online 24 hours a day!
