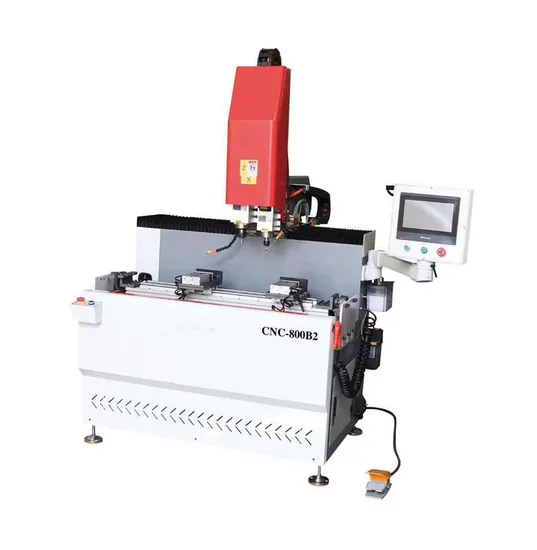

High Quality Full Automatic Single Heads Aluminum, Milling and Drilling Machine
Basic Info.
Model NO.
90 degree automatic cutting machine
Type
Tool Milling Machine
Automatic Grade
Automatic
Condition
New
Transport Package
Carton
Specification
180*1200*1700mm
Trademark
soar
Origin
Shandong, China
Production Capacity
100/Mon
Product Description
Product Description
Feature:1 drilling and milling single head
2 CNC Touch screen PLC
3 One-time clamping , processed on both sides Product Parameters
| Motor speed | 1800r/min |
| Milling motor power | 3kw |
| Drilling motor power | 1.5kw |
| Drilling and milling running method | Three-axis linkage |
| Control method | Servo motor |
| XYZ axis servo motor power | 2.25kw |
| Lateral travel (X axis) | 3000mm |
| Longitudinal travel (Y axis) | 3000mm |
| Vertical travel (Z axis) | 300mm |
| X axis running speed | 0-80m/min |
| Y axis running speed | 0-75m/min |
| Z axis running speed | 0-75m/min |
| Workbench Working angle | 0 degree,+90degree |
| Drilling tool size | Re32-φ8mm |
| Cooling method | Automatic spray |
| Voltage | 3phase |
| Processing size | 160x160x800mm |
| Working pressure | 0.6-0.8mpa |
| Measure | 1950x1350x1900mm |
| Weight | 430kg |
| Processing specialty | One-time clamping , processed on both sides |
Packaging & Shipping
Company Profile
FAQ
1 how long have you been in this filed?
we have been in this filed for more than 15 years
2 Do you have any Certification with product or your factory?
yes, we have passed TUV certification with our product and factory
3 where is your factory?
we are in shandong province,it is about 150KM far from Qingdao port
4 Can we be as yoUr agent in our country?
yes, if you have this idea, welcome to visit our factory and talk about this, or we fly to visit you
