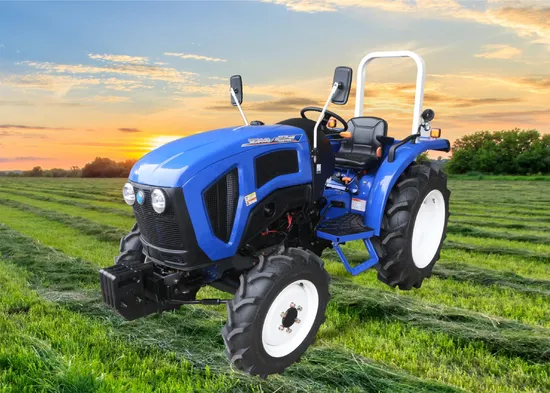

Durable Seeyes 50HP Agricultural Garden Tractor Tc504 Series Wheeled Tractor Tc504-A8

Product Description

Main Parameters

Model		-	TC504-A8
Purpose		-	Agriculture And Horticulture Multipurpose
Specification		mm	2920*1337*2010
Ground Clearance		mm	330
Matching Engine	Manufacturing Enterprise	-	ZHEJIANG SELEHE AGRICULTURE EQUIPMENT CO., LTD.
	Model And Specification	-	XY484
	Rated Power	kw	36.8
	Rated Speed	rpm	3100
	Emission Standard	-	China National Emission Standard 4
	Weight	kg	184
Front Wheel	Structural Form	-	With Inner Tube, Steel Hub, Dry land Wheel
	Specification	inch	7-16
	Wheel Track	mm	1020
Rear Wheel	Structural Form	-	Without Inner Tube, Steel Hub, Dry land Wheel
	Specification	inch	11.2-24
	Wheel Track	mm	1060
Wheelbase		mm	1610
Turning Radius		mm	2500
Function		-	Two-wheel/four-wheel Drive Conversiom
		-	All-cast Iron Reinforced Chassis
		-	Hydraulic Lifting
		-	Pto Rear Output
		-	Three-point Standard Suspension (class 1n, Standard Gb/t 1593-2015)
Traveling Speed				Backward 1	Backward 2	Backward 3	Backward 4	Forward 1	Forward 2	Forward 3	Forward 4
		High Speed	Km/h	6.42	8.1	15.65	20.32	6.42	8.1	15.76	20.42
		Low Speed	Km/h	1.76	2.38	4.45	5.9	1.76	2.38	4.45	5.9
Pto Shaft Revolving Speed		rpm	680/890

Main Characteristics In addition to these features , the TC504-A8 boasts numerous characteristics that make it an ideal choice for agricultural and horticultural applications: 1. Four-wheel drive + two-wheel drive conversion
Enhanced traction and adhesion, coupled with robust power and superior trafficability, guarantee heightened efficiency. You can experience improved handling and longitudinal stability.
2. Mechanical + hydraulic power steering
A high-pressure hydraulic system enables seamless steering, even in the most challenging farmland terrain. You can experience wide-ranging applications with unmatched reliability.
3. Shuttle shift
Eight forward gears, eight reverse gears. It provides a rich selection of gears for precise tractor speed adjustment. You can experience smoother torque output for enhanced enhanced performance.
4. Rollover protection system (ROPS)
In addition to coping with unexpected situations and protecting the driver's safety, it can also fortify the machine's structural strength and resistance to distortion.
5. Forward two gears of PTO rear shaft
The PTO rear output shaft has two speeds adjustable.
6. Four-cylinder 50-horsepower diesel engine
This powerful, fuel-efficient, and low-noise engine is China's first non-road small-bore multi-cylinder diesel engine adhering to the China National Emission Standard 4.
7. Hand-controlled electronic throttle
High stability, smooth acceleration and deceleration, sensitive response, and precise control of fuel supply ensure superior performance and productivity.
8. Differential lock function
Bolstered turning and maneuvering capabilities in sunken farmland enhances overall reliability.
9. Versatile for paddy and dry farmland
The ground clearance 330mm and the lugged tires ensure exceptional trafficability in the paddy farmland.
10. Concealed muffler
The muffler is strategically positioned under the left hood, so that the machine can run normally in the working scene of limited height such as the greenhouse.
11. Large turning angle of front axle
With a generous 55° turning capability, the front axle significantly reduces the turning radius, ensuring exceptional maneuverability in compact farmland settings.
12. Ergonomic design
Centralized operation handle and platform-based layout ensure user-friendly operation.
13. Sealed bevel gear front axle
It can prevent the infiltration of muddy water and debris, minimizing oil leaks, reducing maintenance frequency, and significantly extending service life.
Company Information
Established in 2015, SELEHE is a subsidiary of China Xinyue Group, specializing in modern agricultural machinery. With a vision to "Craft High-Qualified Agricultural Machines and Build Top Brand," SELEHE has earned numerous accolades and holds over 104 patents for its innovative products. The company's independent manufacturing capacity for spare parts exceeds 85%, and its SEEYES brand has become a national leader in high-speed transplanters and compact tractors, contributing significantly to China's agricultural development.
Our Products
WHEELED TRACTOR TA254-A6/TA254-A9 TA304-A9 TD404-A9/TB404-H1 TC504-A8
RICE TRANSPLANTER 2ZG-4QR 2ZG-6QR/2ZG-6A/2ZG-6B 2ZG-6AC 2ZG-8AJ/2ZG-8BJ 2ZG-8QRX/2ZG-8AX/2ZG-8BX 2ZG-8A/2ZG-8B 2FCF-6 2FCF-8
Certificate
FAQ
Q:Are you a manufacturer or trader ?
A: We specialize in manufacturing, equipped with an in-house R&D department and sales force, offering comprehensive services.
Q: Where can tractor be used?
A: Our tractors are multifunctional. They can be used in various conditions, such as gardens, paddy fields, dry farmlands, etc.
Q: Which tractor do I need?
A: We supply varied horsepower tractors to our clients, inclusive of 25, 30, 40 50 horsepower. You can choose any type in accordance with your requirements.
Q: What is your minimum order quantity?
A: The minimum order quantity is 1 set.
Q: How can I pay for your products?
A:We accept T/T and SWIFT.
Q: What steps do we take to guarantee quality?
A: We conduct thorough inspections on all products prior to shipping to ensure they meet our quality standards.
Q: What after-sales services can I get?
A: We will provide you with technical traning.
Q: Where can I get more information about your products?
A: Please send message to our sales managers asking for further details.
