Metal Roofing Galvanized Aluminum Corrugated Steel Sheet Forming Machine
Basic Info.
Model NO.
Corrugated-36
Automatic Grade
Automatic
Power Source
Electric
Screw Design
No
Certification
CE, ISO
Condition
New
Customized
Customized
Application
House Building
Thickness
0.3-0.8 mm
Roller Station
14
Roller Materials
#45
Shaft Diameter
70 mm
Driving Mode
1 Inch Chain
Main Motor Power
5.5kw
Electrical Control System
PLC
Material of Cutting
Cr12 Mould Steel
Transport Package
Naked with Plastic Film.
Trademark
FMS
Origin
China
HS Code
84552210
Production Capacity
25 Set Per Month
Packaging & Delivery
Package Size
665.00cm * 120.00cm * 145.00cm
Package Gross Weight
2865.000kg
Product Description
Product Description

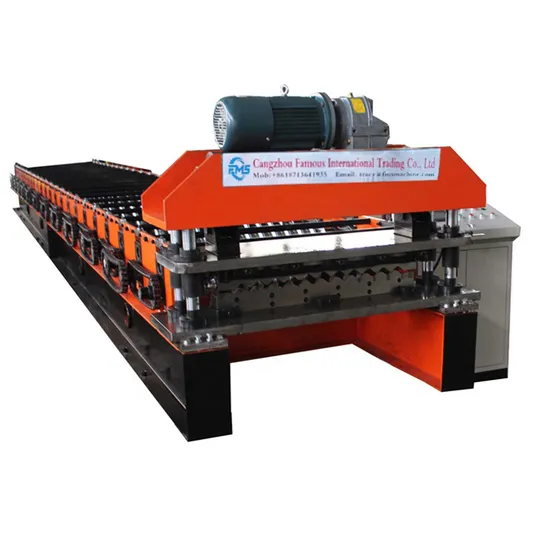

Corrugated Roll Forming Machine
Through a series of steps, this type of corrugated machine produces metal roofing sheets from GI/PPGI. As the motor speed , the length and quantity are controlled by the PLC system, resulting in continuous automatic production, which is ideal for cold roll forming.
Cangzhou famous is a professional manufacturer of cold roll forming machines in China. Under steady guarantee of strong technical resources, the machines produced by our company are widely appreciated around the world.
Standing Seam roll forming machine is high-tech product. From profile drawings to assembly drawings to installation drawings. Every link is designed by our technical department.
Due to the high accuracy of cutting and low range tolerance, the product can be perfectly overlapped without any inconsistencies.
In our company, we have a mature after-sale service network, In case of need, we can send technicians to train you on installation and opera
Product Parameters
| Material of Shaft | 70 mm 45#steel forged |
| Material Thickness | 0.3-0.8 mm |
| Working Speed | 8-15 m/min |
| Main Motor Power | 5.5 KW |
| Electrical Hydraulic Station Power | 3 KW |
| Hydraulic Station Pressure | 12.0 Mpa |
| Roller Station | 14 Raws |
